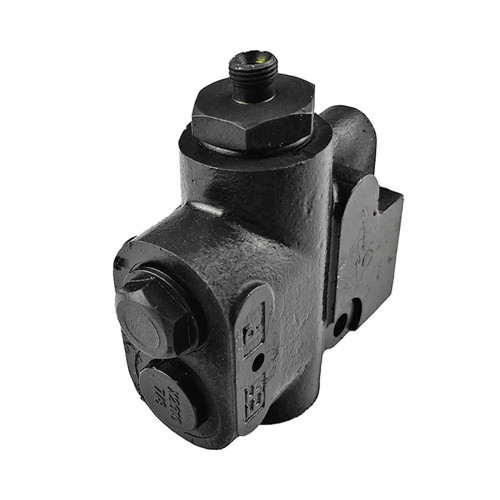

Priority valve 35/901800 JCB 3CX/4CX, genuine

35/901800

Brand
JCB
Article
35/901800
Machine system
Hydraulic system
Part type
Priority valve
Machine brand
JCB
Manufacturing type
Original
Compatibility
JCB 3CX, 4CX
All the features

In stock

0.00 ₺

We do not publish prices: they depend on exchange rates and change often. Click «Request price» and we will quote the current price on the day you ask.

Check the exact specifications and compatibility with your machine with our managers.

We are available Monday to Saturday, 9:00 – 18:00; closed on Sunday.

Free delivery to the carrier of your choice, or collect your order in Istanbul.

Could not find the part you need? Write to us and we will help you find an alternative or order it from the manufacturer.

Message on WhatsApp Message on Telegram Call us: +90 531 224 49 66

Priority valve 35/901800 is a genuine JCB part for the JCB 3CX and 4CX backhoe loaders.

The priority valve makes pump oil go to the steering circuit first; once the steering demand is met, the remaining flow goes to the loader and backhoe functions. This keeps the steering light and safe even during heavy hydraulic work. A faulty priority valve makes the steering heavy, slows its response or slows the hydraulic services. The valve is supplied new. On JCB backhoe loaders the priority valve sits between the pump outlet and the valve block and feeds the steering unit line. Its spool responds to the load signal from the steering unit and sets aside the flow the steering needs; when the wheel is not turned, almost all the flow goes to the hydraulic services. The port letters on the body guide the connections. The valve has a cast iron body and comes with its ports capped. Compare the port threads with the old valve.

Specifications

Part number	35/901800
Manufacturer	JCB
Production type	Original
Part type	Priority valve
System / group	Hydraulic system
Machine make	JCB

Compatibility

The catalogue also has the aftermarket version of this part. Other parts are in Hydraulic valves.

Fitting

After assembly, check the priority function by using the steering and hydraulic services at the same time.

Specifications

Machine system
Hydraulic system
Part type
Priority valve
Machine brand
JCB
Manufacturing type
Original
Compatibility
JCB 3CX, 4CX
