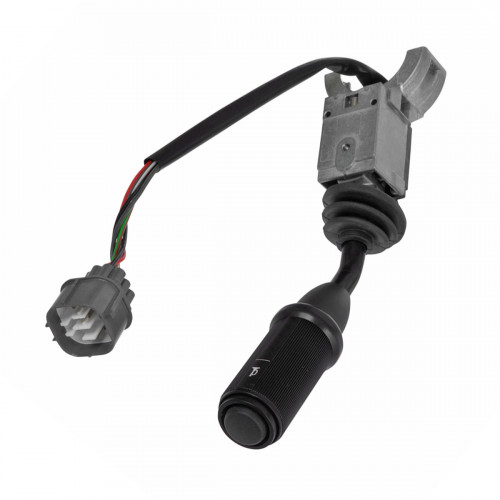

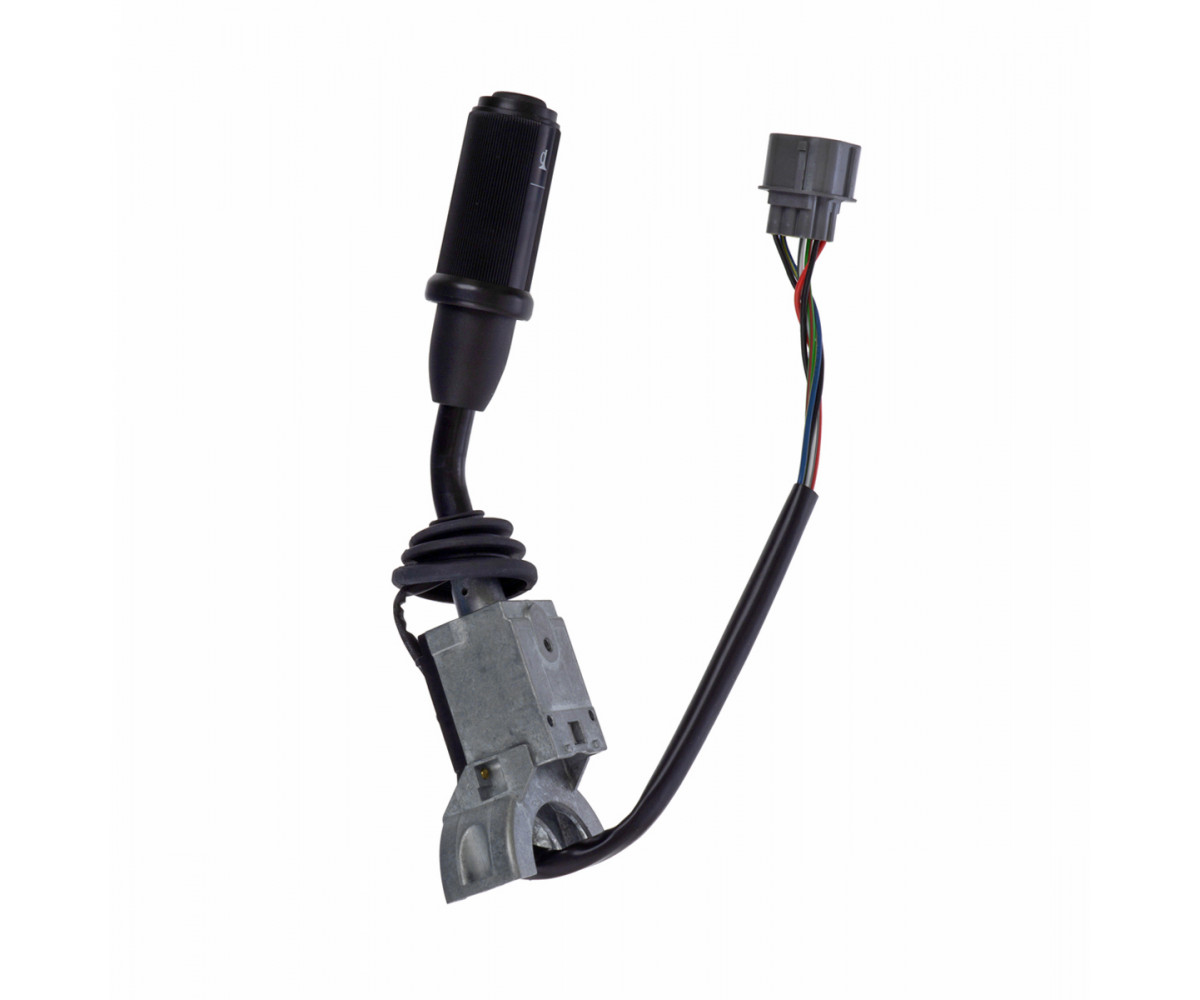

Column switch 701/80296 JCB, aftermarket, option 1

701/80296

Brand
DGR
Article
701/80296
Machine system
Electrics
Part type
Column switch
Machine brand
JCB
Manufacturing type
Aftermarket
All the features

In stock

0.00 ₺

We do not publish prices: they depend on exchange rates and change often. Click «Request price» and we will quote the current price on the day you ask.

Check the exact specifications and compatibility with your machine with our managers.

We are available Monday to Saturday, 9:00 – 18:00; closed on Sunday.

Free delivery to the carrier of your choice, or collect your order in Istanbul.

Could not find the part you need? Write to us and we will help you find an alternative or order it from the manufacturer.

Message on WhatsApp Message on Telegram Call us: +90 531 224 49 66

For the JCB machines: column switch 701/80296, an aftermarket part. The card also lists 701/80165, 332/Y6914.

Column switches are made to the wire colours and connector type of a particular machine's electrics, so the switch is chosen by part number and its connector pin count is compared with the old one. An unsuitable switch makes functions work wrongly or not at all. The switch is held to the column by a bracket whose bolts are tightened without overdoing it. Route the switch cable along the column so it is not stretched or pinched when the wheel turns. OEM switches come from the makers who supply switches to the machine manufacturer for original fitment. The column switch connector plugs into the harness below the steering column.

Specifications

Part number	701/80296
Cross / alternative numbers	701/80165, 332/Y6914
Production type	Aftermarket
Part type	Column switch
System / group	Electrics
Machine make	JCB

Compatibility

According to sources, this is the left-hand column switch, controlling forward/reverse selection and the horn. The catalogue also has the aftermarket version and OEM version of this part. Other parts are in Switches.

Fitting

After fitting, secure the harness with ties so it does not touch moving parts or hot surfaces, since a chafed wire loses its insulation and causes a short circuit.

Specifications

Machine system
Electrics
Part type
Column switch
Machine brand
JCB
Manufacturing type
Aftermarket

Questions: 0

No questions about this product.
