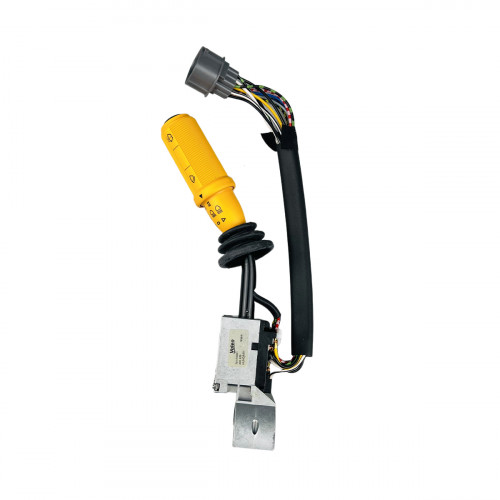

Column switch 701/70001 JCB, OEM Valeo

701/70001

Brand
VALEO
Article
701/70001
Machine system
Electrics
Part type
Column switch
Machine brand
JCB
Manufacturing type
OEM
All the features

In stock

0.00 ₺

We do not publish prices: they depend on exchange rates and change often. Click «Request price» and we will quote the current price on the day you ask.

Check the exact specifications and compatibility with your machine with our managers.

We are available Monday to Saturday, 9:00 – 18:00; closed on Sunday.

Free delivery to the carrier of your choice, or collect your order in Istanbul.

Could not find the part you need? Write to us and we will help you find an alternative or order it from the manufacturer.

Message on WhatsApp Message on Telegram Call us: +90 531 224 49 66

Column switch 701/70001 is an OEM part made by Valeo for the JCB machines.

The lever of a column switch is used hundreds of times a day, and wear of its contacts is natural. Dust and moisture in the cab speed up contact oxidation, so the condition of the cab door and window seals also affects the switch's life. If the switch's protective boot is torn, dust gets in and the lever can stick. After replacing the switch, try every position in turn and check that the related functions work correctly. A fault in a direction switch is not put off, since the machine could move in an unexpected direction.

Specifications

Part number	701/70001
Manufacturer	Valeo
Production type	OEM
Part type	Column switch
System / group	Electrics
Machine make	JCB

Compatibility

According to sources, this is the right-hand lights and wipers column switch, which also includes the turn signal function. The catalogue also has the aftermarket version of this part. Other parts are in Switches.

Fitting

Before the change, switch off the ignition and disconnect the battery negative if needed. Remove the connector by pressing its latch, never by pulling the wires. After fitting the new part, push the clean, dry connector fully home and check that the latch has clicked into place. After reconnecting the battery, check the function and the instrument panel.

Specifications

Machine system
Electrics
Part type
Column switch
Machine brand
JCB
Manufacturing type
OEM

Questions: 0

No questions about this product.
