SRS solenoid coil 717/20137 JCB, aftermarket

717/20137

Brand
INTER
Article
717/20137
Machine system
Electrics
Part type
Solenoid coil
Machine brand
JCB
Manufacturing type
Aftermarket
All the features

In stock

0,00 ₺

We do not publish prices: they depend on exchange rates and change often. Click «Request price» and we will quote the current price on the day you ask.

Check the exact specifications and compatibility with your machine with our managers.

We are available Monday to Saturday, 9:00 – 18:00; closed on Sunday.

Free delivery to the carrier of your choice, or collect your order in Istanbul.

Could not find the part you need? Write to us and we will help you find an alternative or order it from the manufacturer.

Message on WhatsApp Message on Telegram Call us: +90 531 224 49 66

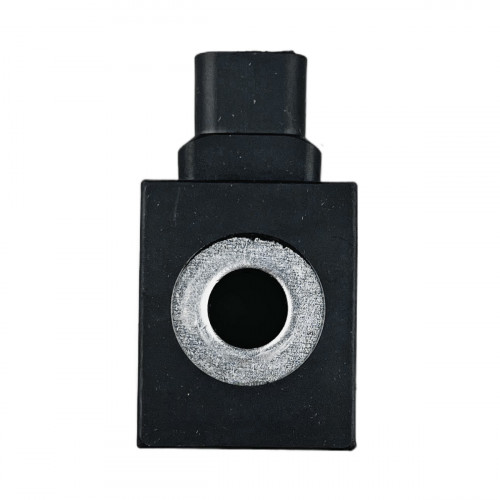

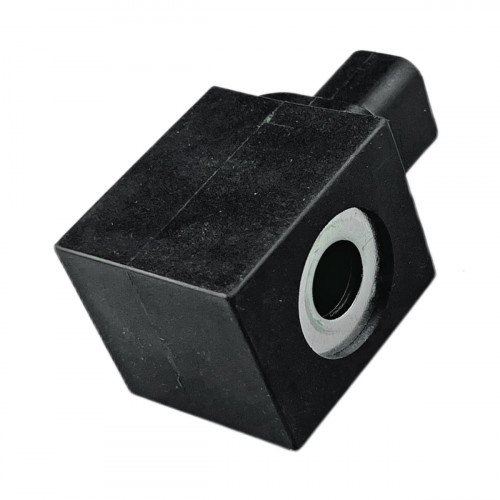

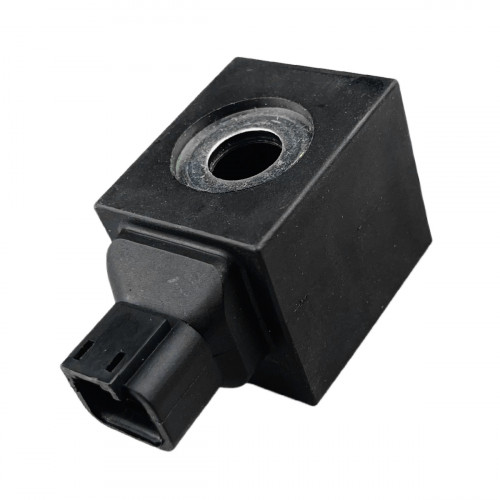

SRS solenoid coil 717/20137 is an aftermarket part for the JCB machines. The card also lists 25/221582.

This coil is the electrical part of the SRS (Smooth Ride System) solenoid valve on JCB machines. When voltage is applied, its magnetic field pulls in the plunger of the valve cartridge and connects the loader arm circuit to the accumulator; when voltage is removed, the valve closes. A burnt-out coil stops SRS engaging. A fault is found by measuring the coil resistance or by checking whether the core becomes magnetic when voltage is applied. If the cartridge is sound, only the coil need be replaced, without opening the hydraulics. The coil is chosen for the machine's system voltage.

Specifications

Part number	717/20137
Cross / alternative numbers	25/221582
Production type	Aftermarket
Part type	Solenoid coil
System / group	Electrics
Machine make	JCB

Compatibility

The catalogue also has the genuine version of this part. Other parts are in Solenoids and valves.

Fitting

Moisture and corrosion inside the connector are a common cause of false signals from sensors and switches, so clean the connector and use contact spray if needed. Renew the connector seal if it is missing. The part is chosen by part number, and its connector type is compared with the old part.
