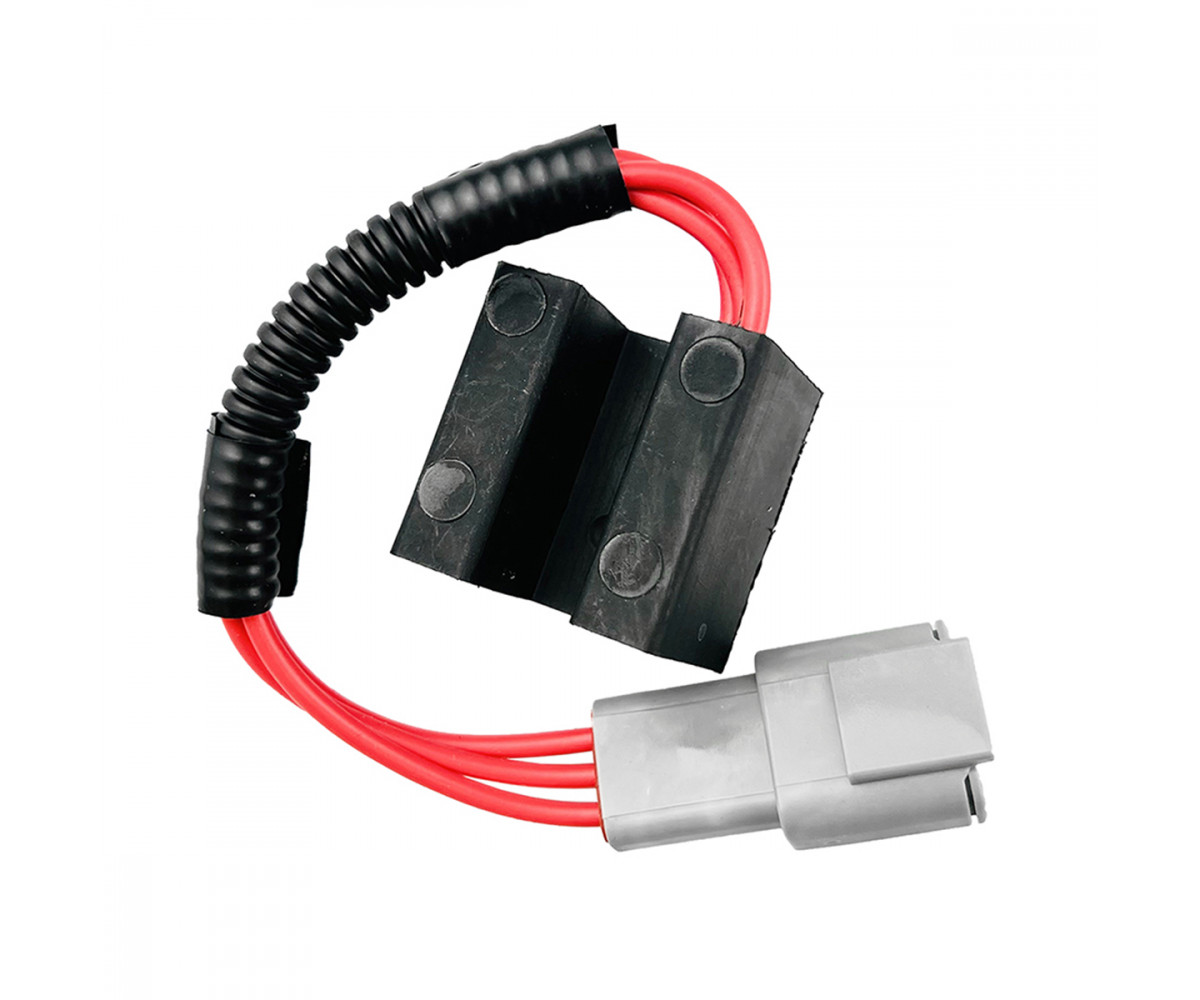

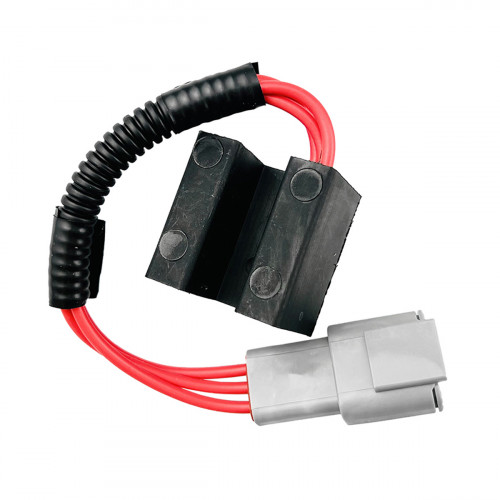

Park brake sensor 332/C9990 JCB, aftermarket

332/C9990

Brand
INTER
Article
332/C9990
Machine system
Sensors
Part type
Park brake sensor
Machine brand
JCB
Manufacturing type
Aftermarket
All the features

In stock

0,00 ₺

We do not publish prices: they depend on exchange rates and change often. Click «Request price» and we will quote the current price on the day you ask.

Check the exact specifications and compatibility with your machine with our managers.

We are available Monday to Saturday, 9:00 – 18:00; closed on Sunday.

Free delivery to the carrier of your choice, or collect your order in Istanbul.

Could not find the part you need? Write to us and we will help you find an alternative or order it from the manufacturer.

Message on WhatsApp Message on Telegram Call us: +90 531 224 49 66

Park brake sensor 332/C9990 is an aftermarket part for the JCB machines. The card also lists 701/80486.

The park brake sensor detects the position of the park brake lever and passes it to the control system or panel. According to sources, this part is a vane-type sensor that gives a signal when a metal vane passes through the slot in its body, and it connects through a three-pin connector. With this signal the machine warns the operator or prevents driving while the park brake is on. A faulty sensor can keep the warning permanently lit, never light it, or stop the machine moving even with the brake released. Protect the sensor body from knocks, and keep mud and water from the cab floor away from its connector.

Specifications

Part number	332/C9990
Cross / alternative numbers	701/80486
Production type	Aftermarket
Part type	Park brake sensor
System / group	Sensors
Machine make	JCB

Compatibility

The catalogue also has the genuine version of this part. Other parts are in Sensors.

Fitting

Moisture and corrosion inside the connector are a common cause of false signals from sensors and switches, so clean the connector and use contact spray if needed. Renew the connector seal if it is missing. The part is chosen by part number, and its connector type is compared with the old part.

Specifications

Machine system
Sensors
Part type
Park brake sensor
Machine brand
JCB
Manufacturing type
Aftermarket
