Mini relay 12 V 716/30148 JCB, aftermarket

716/30148

Brand
JF Parts
Article
716/30148
Machine system
Electrics
Part type
Relay
Machine brand
JCB
Manufacturing type
Aftermarket
All the features

In stock

0.00 ₺

We do not publish prices: they depend on exchange rates and change often. Click «Request price» and we will quote the current price on the day you ask.

Check the exact specifications and compatibility with your machine with our managers.

We are available Monday to Saturday, 9:00 – 18:00; closed on Sunday.

Free delivery to the carrier of your choice, or collect your order in Istanbul.

Could not find the part you need? Write to us and we will help you find an alternative or order it from the manufacturer.

Message on WhatsApp Message on Telegram Call us: +90 531 224 49 66

Mini relay 12 V 716/30148 is an aftermarket part for the JCB machines.

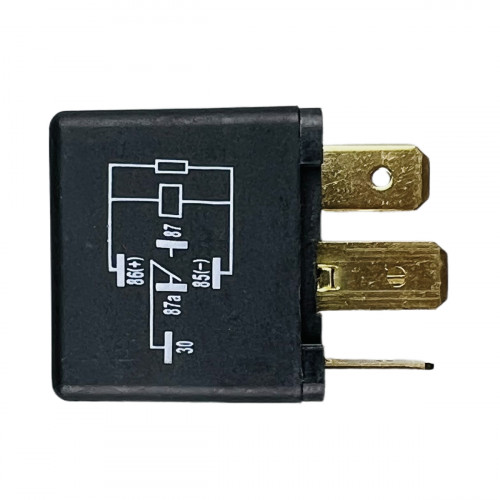

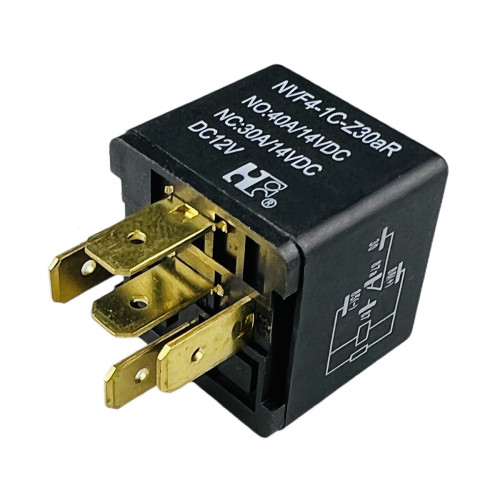

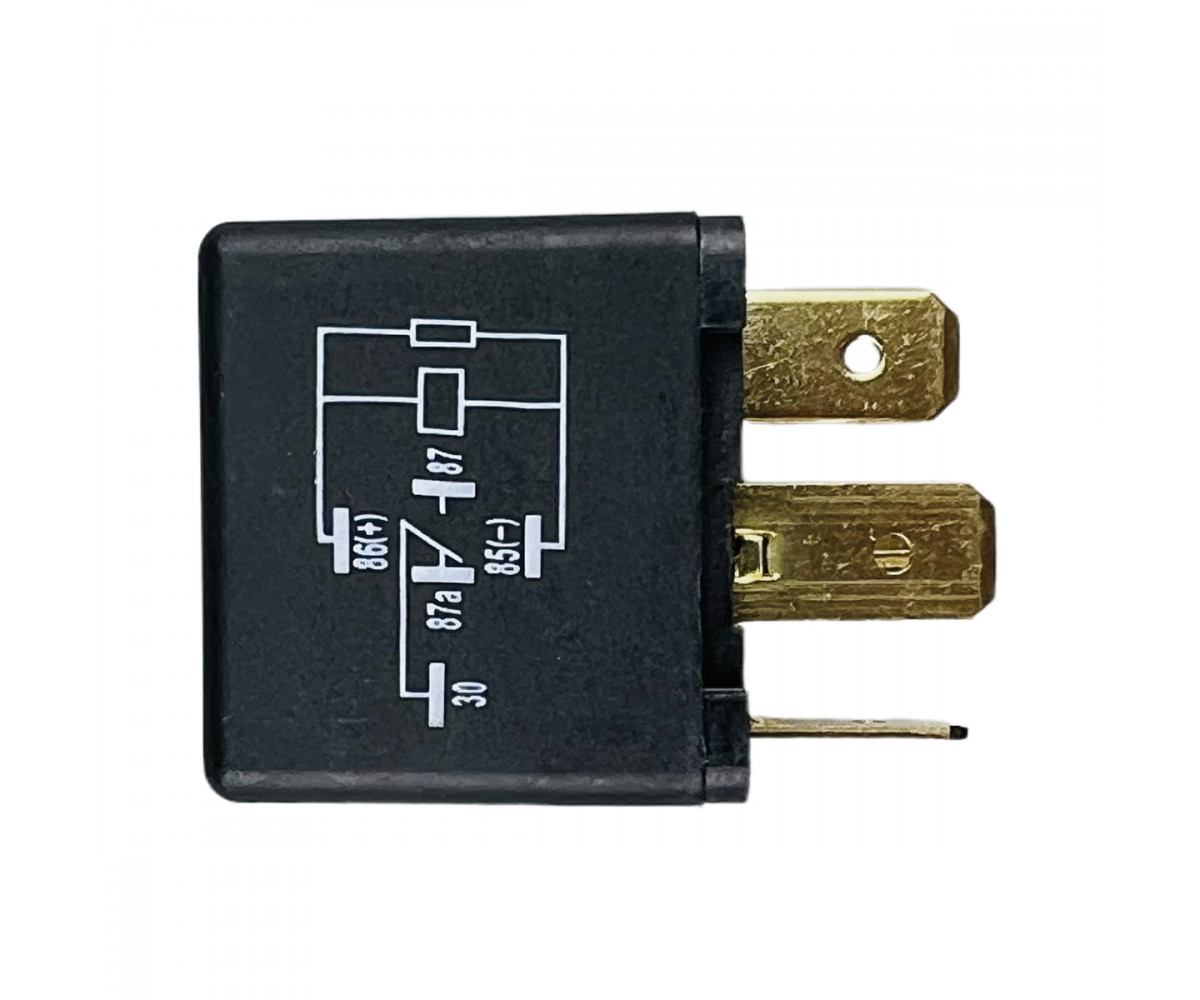

A mini relay is an electromagnetic switch that uses a small control current to switch heavy-current circuits such as headlights, work lights, the horn or fans, protecting the cab switch contacts from high current. According to sources, 716/30148 is a 12 V, 40 A, 5-pin mini relay used on JCB backhoe loaders, excavators and other JCB machines. The five-pin design lets the relay open one circuit while closing another (changeover contact). A faulty relay fails to operate the function, cuts out now and then or stays on. Mini relays of the same case size are used in many circuits in the fuse and relay box, so carrying a spare relay in the machine gives a quick fix in case of failure. The relay can be identified by the diagram printed on its case.

Specifications

Part number	716/30148
Production type	Aftermarket
Part type	Relay
System / group	Electrics
Machine make	JCB

Compatibility

The catalogue also has the genuine version of this part. Other parts are in Relays.

Fitting

If the socket contacts show oxide or melting, check the socket too, since a faulty socket heats the new relay as well. The relay is chosen by part number so that its voltage, current rating and pin layout match the old one.
