Heater blower resistor 716/30152 JCB, genuine

716/30152

Brand
JCB
Article
716/30152
Machine system
Cab
Part type
Blower resistor
Machine brand
JCB
Manufacturing type
Original
All the features

In stock

0.00 ₺

We do not publish prices: they depend on exchange rates and change often. Click «Request price» and we will quote the current price on the day you ask.

Check the exact specifications and compatibility with your machine with our managers.

We are available Monday to Saturday, 9:00 – 18:00; closed on Sunday.

Free delivery to the carrier of your choice, or collect your order in Istanbul.

Could not find the part you need? Write to us and we will help you find an alternative or order it from the manufacturer.

Message on WhatsApp Message on Telegram Call us: +90 531 224 49 66

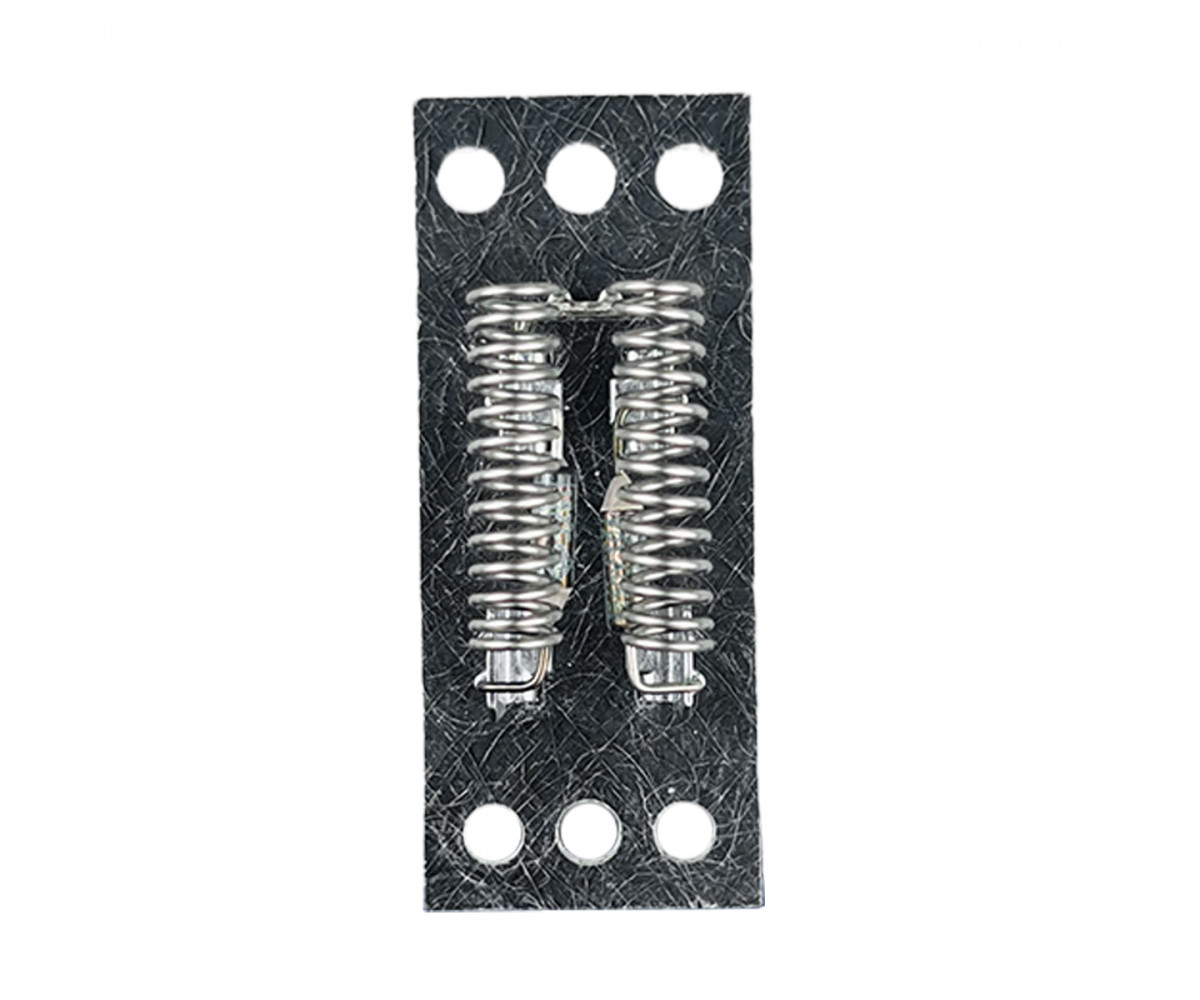

For the JCB machines: heater blower resistor 716/30152, a genuine JCB part.

A common cause of a burnt resistor is a struggling blower motor: a motor with worn bearings draws more current and overheats the resistor. So when replacing the resistor, check that the motor turns freely and quietly. The resistor coils must not touch each other or the body, since a crushed coil causes a short. The resistor is screwed through the holes in its mounting plate and its terminals pushed on firmly. Try every fan speed after the change. Some resistors have a thermal fuse that breaks the circuit on overheating, and if it has blown the resistor is replaced. A resistor that keeps burning out points to a struggling motor or blocked duct, so check the duct and cab filter too. The resistor is chosen for the voltage and number of steps that suit the fan switch.

Specifications

Part number	716/30152
Manufacturer	JCB
Production type	Original
Part type	Blower resistor
System / group	Cab
Machine make	JCB

Compatibility

The catalogue also has the aftermarket version of this part. Other parts are in Relays.

Fitting

After fitting, secure the harness with ties so it does not touch moving parts or hot surfaces, since a chafed wire loses its insulation and causes a short circuit.

Specifications

Machine system
Cab
Part type
Blower resistor
Machine brand
JCB
Manufacturing type
Original

Questions: 0

No questions about this product.
