Beacon plug 703/23201 JCB, aftermarket

703/23201

Brand
JF Parts
Article
703/23201
Machine system
Electrics
Part type
Beacon connector
Machine brand
JCB
Manufacturing type
Aftermarket
All the features

In stock

0,00 ₺

We do not publish prices: they depend on exchange rates and change often. Click «Request price» and we will quote the current price on the day you ask.

Check the exact specifications and compatibility with your machine with our managers.

We are available Monday to Saturday, 9:00 – 18:00; closed on Sunday.

Free delivery to the carrier of your choice, or collect your order in Istanbul.

Could not find the part you need? Write to us and we will help you find an alternative or order it from the manufacturer.

Message on WhatsApp Message on Telegram Call us: +90 531 224 49 66

Beacon plug 703/23201 is an aftermarket part for the JCB machines.

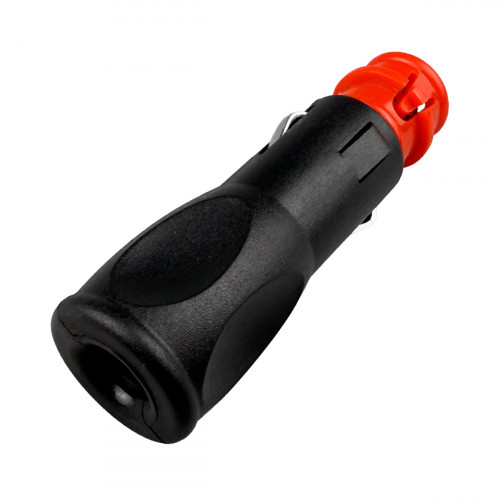

This part is the cigarette-lighter type plug fitted to the end of the beacon lead, listed in the product card as 703/23201. The photo shows a black plug with a red tip and a spring-loaded centre contact. It plugs into the 12 V socket in the cab to power the beacon. A broken plug or loose centre contact makes the beacon cut out now and then, in which case only the plug need be replaced. When connecting it to the lead, the positive and negative wires go to their correct terminals. The plug comes new.

Specifications

Part number	703/23201
Production type	Aftermarket
Part type	Beacon connector
System / group	Electrics
Machine make	JCB

Compatibility

Other parts are in Beacons.

Fitting

Remove the relevant fuse before the change. Connect the wires with the correct polarity and insulate the joints, then plug in the beacon and check that it works. The part comes new; before fitting, compare its part number and connection type with the old part. After the change, check the function and the warnings on the instrument panel.
