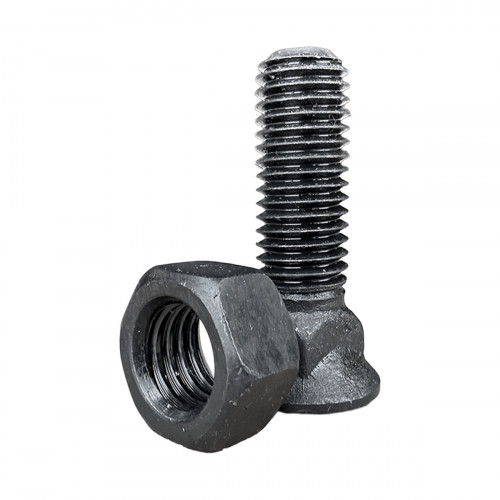

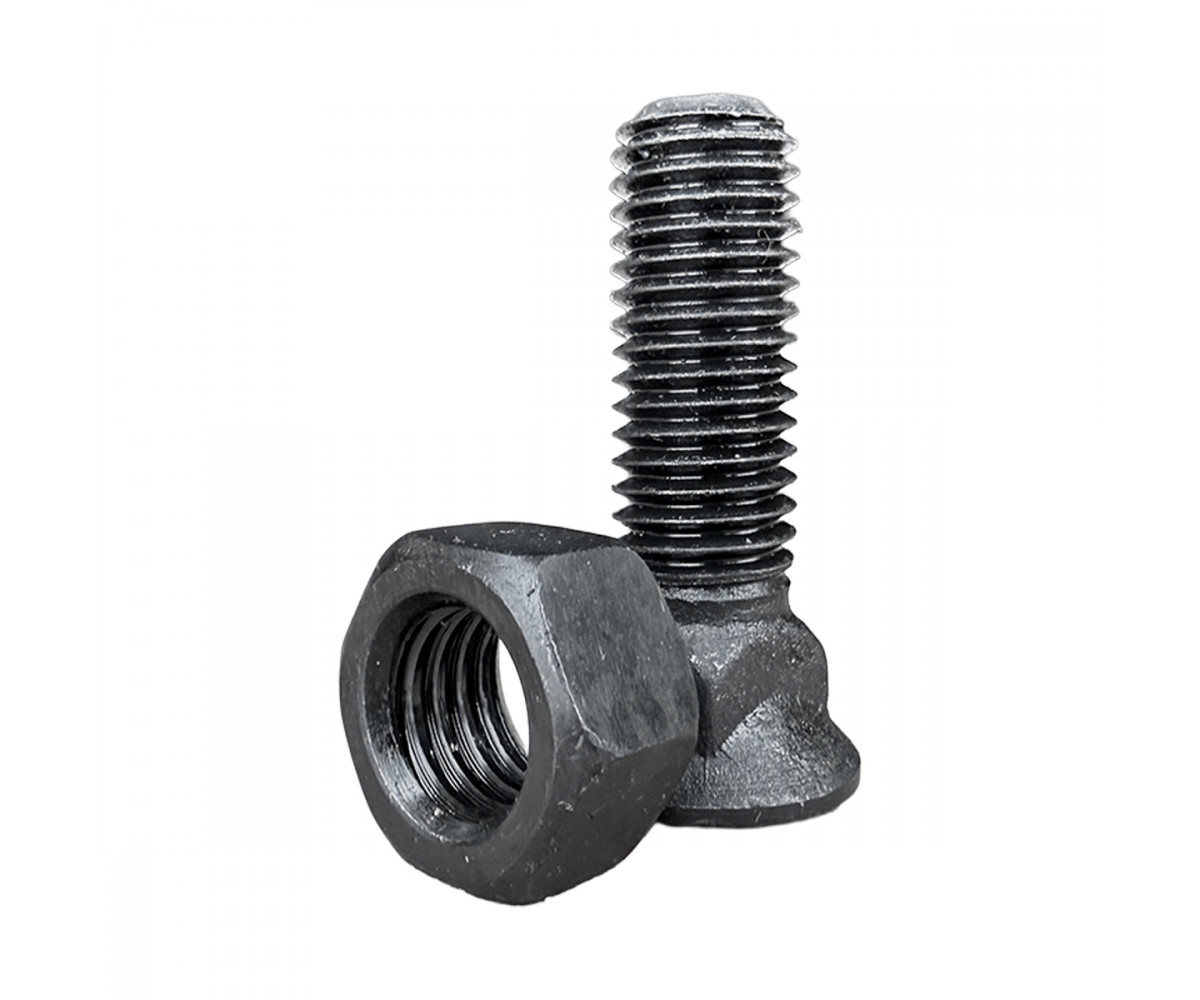

Bucket tooth retainer kit 1462201M3 Terex, aftermarket

For the Terex backhoe loaders: bucket tooth retainer kit 1462201M3, an aftermarket part. According to the product card, this part is a bucket tooth retainer kit.

When the bucket teeth are changed, renewing the pins and retainers is recommended, as an old pin is usually worn and has lost its spring. Check that the pin is fully seated and its end does not stand proud of the tooth surface. The bucket teeth and their pins are inspected at the start of every shift. When a new pin is fitted, the rubber lock or washer is replaced too, as the old locking element no longer holds the pin firmly.

Specifications

Compatibility

According to the product card, the part number is 1462201M3. Fit is confirmed by the part number and the adaptor or bucket model. Other parts are in Buckets.

Fitting

Drive the old pin out with a punch from the opposite side of the tooth. Fit the new tooth on the adaptor, place the retainer and hammer the pin in until fully seated. Wear eye protection, as sparks and fragments can fly when steel parts are struck.
