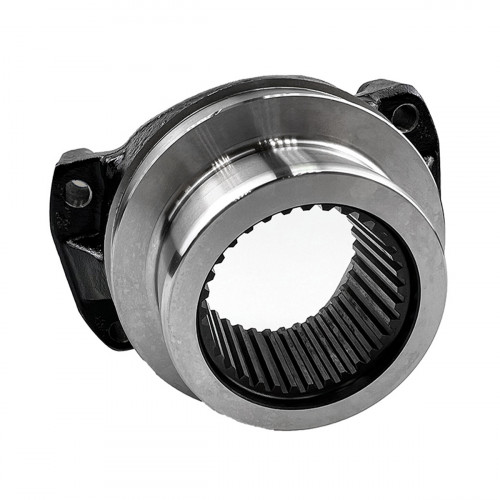

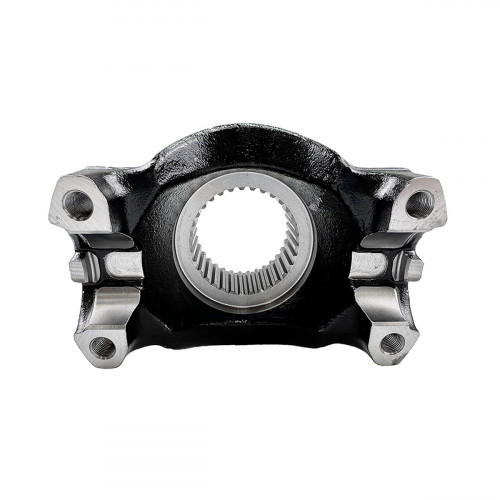

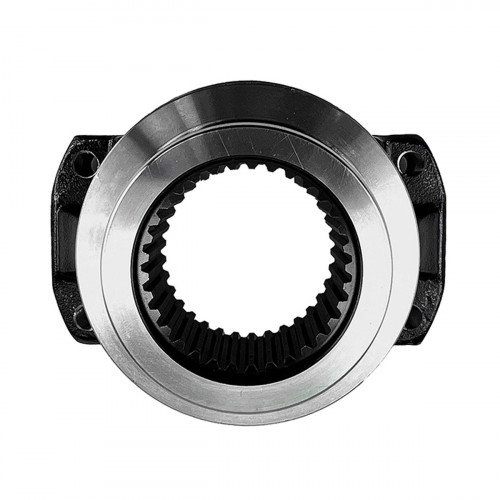

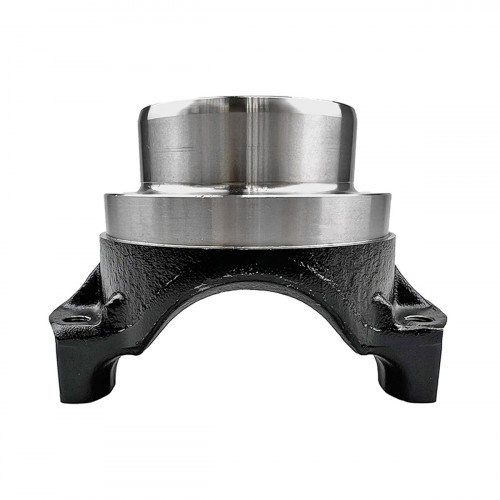

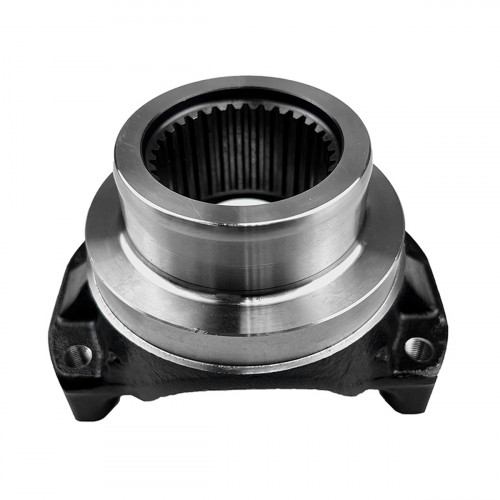

Transmission / axle output flange 459/70138 JCB, OEM

459/70138

Brand
EAL
Article
459/70138
Machine system
Transmission
Part type
Flange
Machine brand
JCB
Manufacturing type
OEM
All the features

In stock

0,00 ₺

We do not publish prices: they depend on exchange rates and change often. Click «Request price» and we will quote the current price on the day you ask.

Check the exact specifications and compatibility with your machine with our managers.

We are available Monday to Saturday, 9:00 – 18:00; closed on Sunday.

Free delivery to the carrier of your choice, or collect your order in Istanbul.

Could not find the part you need? Write to us and we will help you find an alternative or order it from the manufacturer.

Message on WhatsApp Message on Telegram Call us: +90 531 224 49 66

For the JCB machines: transmission / axle output flange 459/70138, an OEM part.

The output flange fits on the splined end of the gearbox output shaft or axle pinion and connects the propshaft to it. Its splined hub is clamped by a nut, and the outside of the hub is the running surface for the shaft seal. A flange with worn splines develops play and knocks when moving off, and if a groove has worn where the seal runs, a new seal will soon leak too. Rust or knocks on the flange surface cut the seal lip, so the seal running surface must be smooth.

Specifications

Part number	459/70138
Production type	OEM
Part type	Flange
System / group	Transmission
Machine make	JCB

Compatibility

According to the product card, 459/70138 is a flange. Fit is confirmed by the part number. The catalogue also has the aftermarket version of this part. Other parts are in Transmission.

Fitting

Before the change, park the machine on firm ground and chock the wheels. Undo the propshaft bolts and support the shaft so it does not hang. With the nut off, pull the flange, fit the new seal with a mandrel and seat the flange. Replace the nut with a new one and tighten it to the manual value; after reconnecting the propshaft, check for vibration in operation.

Specifications

Machine system
Transmission
Part type
Flange
Machine brand
JCB
Manufacturing type
OEM
