Loader shovel crowd rod 590/31200, aftermarket, option 1

590/31200

Brand
Ceylan Hidrolik
Article
590/31200
Machine system
Hydraulic system
Part type
Cylinder rod
Machine brand
JCB
Manufacturing type
Aftermarket
Compatibility
JCB 3CX, 4CX
Machine series
3CX, 4CX, 5CX
All the features

In stock

0.00 ₺

We do not publish prices: they depend on exchange rates and change often. Click «Request price» and we will quote the current price on the day you ask.

Check the exact specifications and compatibility with your machine with our managers.

We are available Monday to Saturday, 9:00 – 18:00; closed on Sunday.

Free delivery to the carrier of your choice, or collect your order in Istanbul.

Could not find the part you need? Write to us and we will help you find an alternative or order it from the manufacturer.

Message on WhatsApp Message on Telegram Call us: +90 531 224 49 66

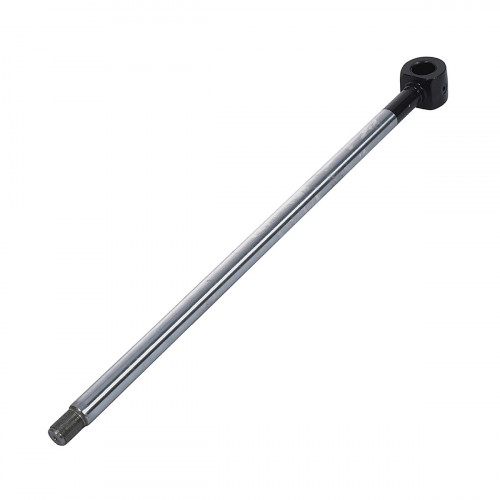

Loader shovel crowd rod 590/31200 is an aftermarket part for the JCB 3CX and 4CX backhoe loaders.

The cylinder rod is a hardened, chrome-plated steel shaft that carries the piston's movement outwards, with the piston connection at one end and the mounting eye at the other. Scratches, pitting or peeling chrome soon ruin the rod seal and cause leaks along the rod, while a bent rod damages the barrel and seals. If the barrel is sound, replacing the rod is cheaper than buying a complete cylinder. The rod is made of high-tensile steel with a hard chrome surface that resists corrosion and wear. Its length and mounting eye are set by the cylinder's stroke and attachment point, so rods of the same diameter belong to different cylinders. The rod is fitted with a seal kit after the barrel and piston have been checked. It is supplied new with the chrome wrapped in protective packaging. Renew the seal kit when the rod is replaced. The rod is heavy.

Specifications

Part number	590/31200
Production type	Aftermarket
Part type	Cylinder rod
System / group	Hydraulic system
Machine make	JCB
Series / model	3CX, 4CX, 5CX

Compatibility

The catalogue also has the aftermarket version of this part. Other parts are in JCB hydraulic cylinders.

Fitting

Check the eye bush and pin too, as a worn bush puts side load on the new rod.

Specifications

Machine system
Hydraulic system
Part type
Cylinder rod
Machine brand
JCB
Manufacturing type
Aftermarket
Compatibility
JCB 3CX, 4CX
Machine series
3CX, 4CX, 5CX
