Hydraulic cylinder piston 595/27717, aftermarket

595/27717

Brand
Ceylan Hidrolik
Article
595/27717
Machine system
Hydraulic system
Part type
Cylinder piston
Machine brand
JCB
Manufacturing type
Aftermarket
Compatibility
JCB 3CX, 4CX
Machine series
3CX, 4CX, 5CX
All the features

In stock

0.00 ₺

We do not publish prices: they depend on exchange rates and change often. Click «Request price» and we will quote the current price on the day you ask.

Check the exact specifications and compatibility with your machine with our managers.

We are available Monday to Saturday, 9:00 – 18:00; closed on Sunday.

Free delivery to the carrier of your choice, or collect your order in Istanbul.

Could not find the part you need? Write to us and we will help you find an alternative or order it from the manufacturer.

Message on WhatsApp Message on Telegram Call us: +90 531 224 49 66

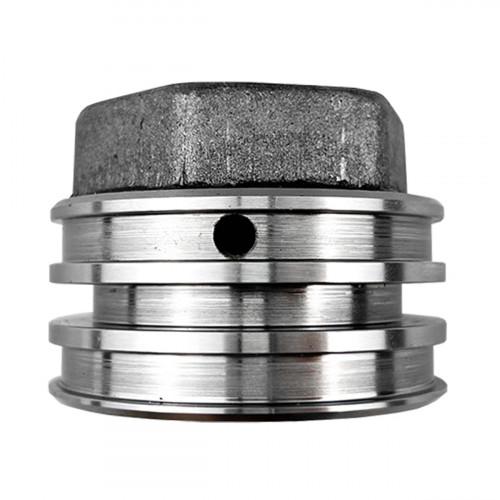

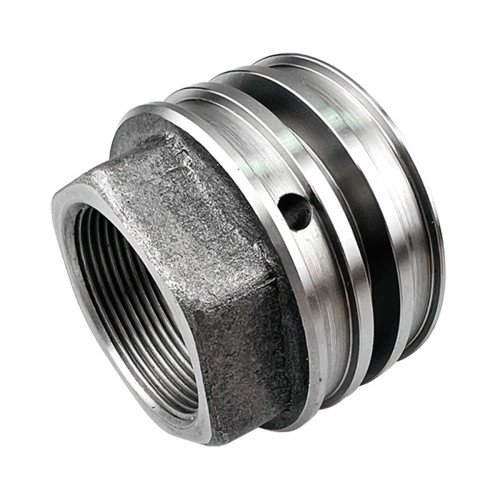

Hydraulic cylinder piston 595/27717, 70x50 mm is an aftermarket part for the JCB 3CX and 4CX backhoe loaders.

A cylinder piston is steel, with grooves for the seals and wear bands on the outside and a bore or thread for the rod end in the centre. Piston size is given by the bore and rod diameters, as in the product name (for example 120x60 mm). The grooves are machined to suit the seal kit, so the seal kit of the same cylinder is used when the piston is replaced. On a piston with burred or dented grooves, new seals soon tear. The piston is secured on the rod with a nut or locking pin, and the torque in the service data is followed. The aftermarket piston is made to the dimensions of the original and fits in place of the old one. The piston is chosen by part number. The piston is steel and comes new.

Specifications

Part number	595/27717
Production type	Aftermarket
Part type	Cylinder piston
System / group	Hydraulic system
Machine make	JCB
Series / model	3CX, 4CX, 5CX
Size	70x50 mm

Compatibility

Other parts are in JCB hydraulic cylinders.

Fitting

Lay the seals and wear rings in their grooves without twisting, fit the piston to the rod and tighten its fixing to the specified torque. Oil the rod and piston with clean hydraulic oil and ease them into the barrel without dragging the seals over threads or edges.

Specifications

Machine system
Hydraulic system
Part type
Cylinder piston
Machine brand
JCB
Manufacturing type
Aftermarket
Compatibility
JCB 3CX, 4CX
Machine series
3CX, 4CX, 5CX
