Cylinder gland nut 594/00120 JCB 3CX/4CX, aftermarket

594/00120

Brand
Ceylan Hidrolik
Article
594/00120
Machine system
Hydraulic system
Part type
Cylinder gland nut
Machine brand
JCB
Manufacturing type
Aftermarket
Compatibility
JCB 3CX, 4CX
Machine series
3CX, 4CX, 5CX
All the features

In stock

0,00 ₺

We do not publish prices: they depend on exchange rates and change often. Click «Request price» and we will quote the current price on the day you ask.

Check the exact specifications and compatibility with your machine with our managers.

We are available Monday to Saturday, 9:00 – 18:00; closed on Sunday.

Free delivery to the carrier of your choice, or collect your order in Istanbul.

Could not find the part you need? Write to us and we will help you find an alternative or order it from the manufacturer.

Message on WhatsApp Message on Telegram Call us: +90 531 224 49 66

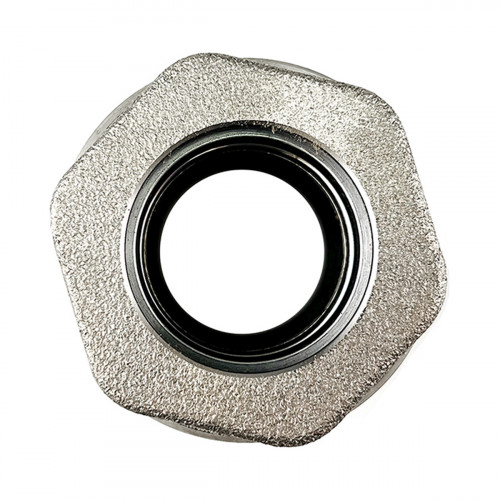

Cylinder gland nut 594/00120 is an aftermarket part for the JCB 3CX and 4CX backhoe loaders.

The gland nut screws into the cylinder barrel and holds the rod gland in place, closing the open end of the cylinder. It is removed with a special spanner when the seals are changed at a rebuild; a nut with damaged threads or a crack stops the gland seating and causes leaks. The nut size is set by the cylinder bore and type, so it is chosen by part number. The nut is steel and is supplied new. The nut size and thread suit the barrel; compare the part number with the old nut. The nut is new and unused. Keep the nut boxed.

Specifications

Part number	594/00120
Production type	Aftermarket
Part type	Cylinder gland nut
System / group	Hydraulic system
Machine make	JCB
Series / model	3CX, 4CX, 5CX

Compatibility

Other parts are in JCB hydraulic cylinders.

Fitting

Clean and lightly oil the threads; start the nut by hand and tighten it to the service manual torque. After fitting the locking device, run the cylinder through its full stroke a few times and check around the gland for leaks.

Specifications

Machine system
Hydraulic system
Part type
Cylinder gland nut
Machine brand
JCB
Manufacturing type
Aftermarket
Compatibility
JCB 3CX, 4CX
Machine series
3CX, 4CX, 5CX

Questions: 0

No questions about this product.
