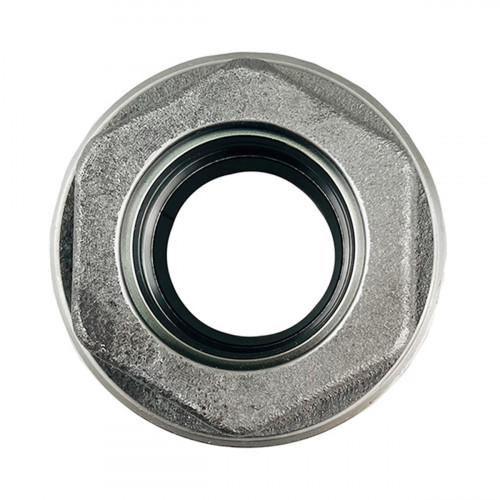

Cylinder gland nut 594/14020, aftermarket, option 2

594/14020

Brand
Ceylan Hidrolik
Article
594/14020
Machine system
Hydraulic system
Part type
Cylinder gland nut
Machine brand
JCB
Manufacturing type
Aftermarket
Compatibility
JCB 3CX, 4CX
Machine series
3CX, 4CX, 5CX
All the features

In stock

0.00 ₺

We do not publish prices: they depend on exchange rates and change often. Click «Request price» and we will quote the current price on the day you ask.

Check the exact specifications and compatibility with your machine with our managers.

We are available Monday to Saturday, 9:00 – 18:00; closed on Sunday.

Free delivery to the carrier of your choice, or collect your order in Istanbul.

Could not find the part you need? Write to us and we will help you find an alternative or order it from the manufacturer.

Message on WhatsApp Message on Telegram Call us: +90 531 224 49 66

For the JCB 3CX and 4CX backhoe loaders: cylinder gland nut 594/14020, an aftermarket part.

The nut is removed and fitted with a special spanner, and the wrong tool damages its slots. Check the barrel threads too when replacing the nut, as worn barrel threads will not hold a new one either. This nut is the second aftermarket option for the same number, with the same thread and spanner slots. It is supplied new; before fitting, compare its thread with the barrel thread and check for burrs. The nut slots are sized for the special spanner. Check the nut locking device separately.

Specifications

Part number	594/14020
Production type	Aftermarket
Part type	Cylinder gland nut
System / group	Hydraulic system
Machine make	JCB
Series / model	3CX, 4CX, 5CX

Compatibility

The catalogue also has the aftermarket version of this part. Other parts are in JCB hydraulic cylinders.

Fitting

Clean and lightly oil the threads; start the nut by hand and tighten to the service manual torque. Fit the locking screw or device if there is one.

Specifications

Machine system
Hydraulic system
Part type
Cylinder gland nut
Machine brand
JCB
Manufacturing type
Aftermarket
Compatibility
JCB 3CX, 4CX
Machine series
3CX, 4CX, 5CX

Questions: 0

No questions about this product.
