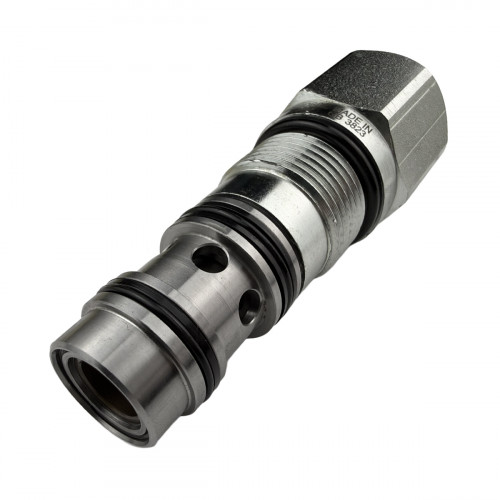

Lock valve 25/966100 JCB, OEM Parker

25/966100

Brand
PARKER
Article
25/966100
Machine system
Hydraulic system
Part type
Load holding valve
Machine brand
JCB
Manufacturing type
OEM
All the features

In stock

0.00 ₺

We do not publish prices: they depend on exchange rates and change often. Click «Request price» and we will quote the current price on the day you ask.

Check the exact specifications and compatibility with your machine with our managers.

We are available Monday to Saturday, 9:00 – 18:00; closed on Sunday.

Free delivery to the carrier of your choice, or collect your order in Istanbul.

Could not find the part you need? Write to us and we will help you find an alternative or order it from the manufacturer.

Message on WhatsApp Message on Telegram Call us: +90 531 224 49 66

Lock valve 25/966100 is an OEM part made by Parker for the JCB machines.

The load holding (counterbalance) valve fits on the load-bearing side of a cylinder: with the control in neutral it blocks the oil and holds the load, and when operated it opens under pilot pressure for a slow, smooth descent. If a hose bursts, it stops the boom or load dropping uncontrolled, making it an important safety element. A faulty valve lets the load creep down, causes jerky movements or stops the arm being lowered. The cartridge is supplied new with a factory setting. Load holding valves are fundamental to the safety of lifting machines, so they are replaced only with the same part number. The setting is chosen above the cylinder pressure at full load. The valve sits in the block on the cylinder and protects against a hose burst. The valve is made of steel.

Specifications

Part number	25/966100
Manufacturer	Parker
Production type	OEM
Part type	Load holding valve
System / group	Hydraulic system
Machine make	JCB

Compatibility

The catalogue also has the aftermarket version of this part. Other parts are in Hydraulic valves.

Fitting

Do not alter the valve setting; replace it only with a valve of the same part number. Check the sealing after fitting.

Specifications

Machine system
Hydraulic system
Part type
Load holding valve
Machine brand
JCB
Manufacturing type
OEM
