Bottom gasket set 320/09383 JCB SB, aftermarket

320/09383

Brand
DGR
Article
320/09383
Machine system
Engine
Part type
Engine gasket set
Machine brand
JCB
Manufacturing type
Aftermarket
Compatibility
JCB Dieselmax 444 (SB)
Additional info
Bottom set
All the features

In stock

0,00 ₺

We do not publish prices: they depend on exchange rates and change often. Click «Request price» and we will quote the current price on the day you ask.

Check the exact specifications and compatibility with your machine with our managers.

We are available Monday to Saturday, 9:00 – 18:00; closed on Sunday.

Free delivery to the carrier of your choice, or collect your order in Istanbul.

Could not find the part you need? Write to us and we will help you find an alternative or order it from the manufacturer.

Message on WhatsApp Message on Telegram Call us: +90 531 224 49 66

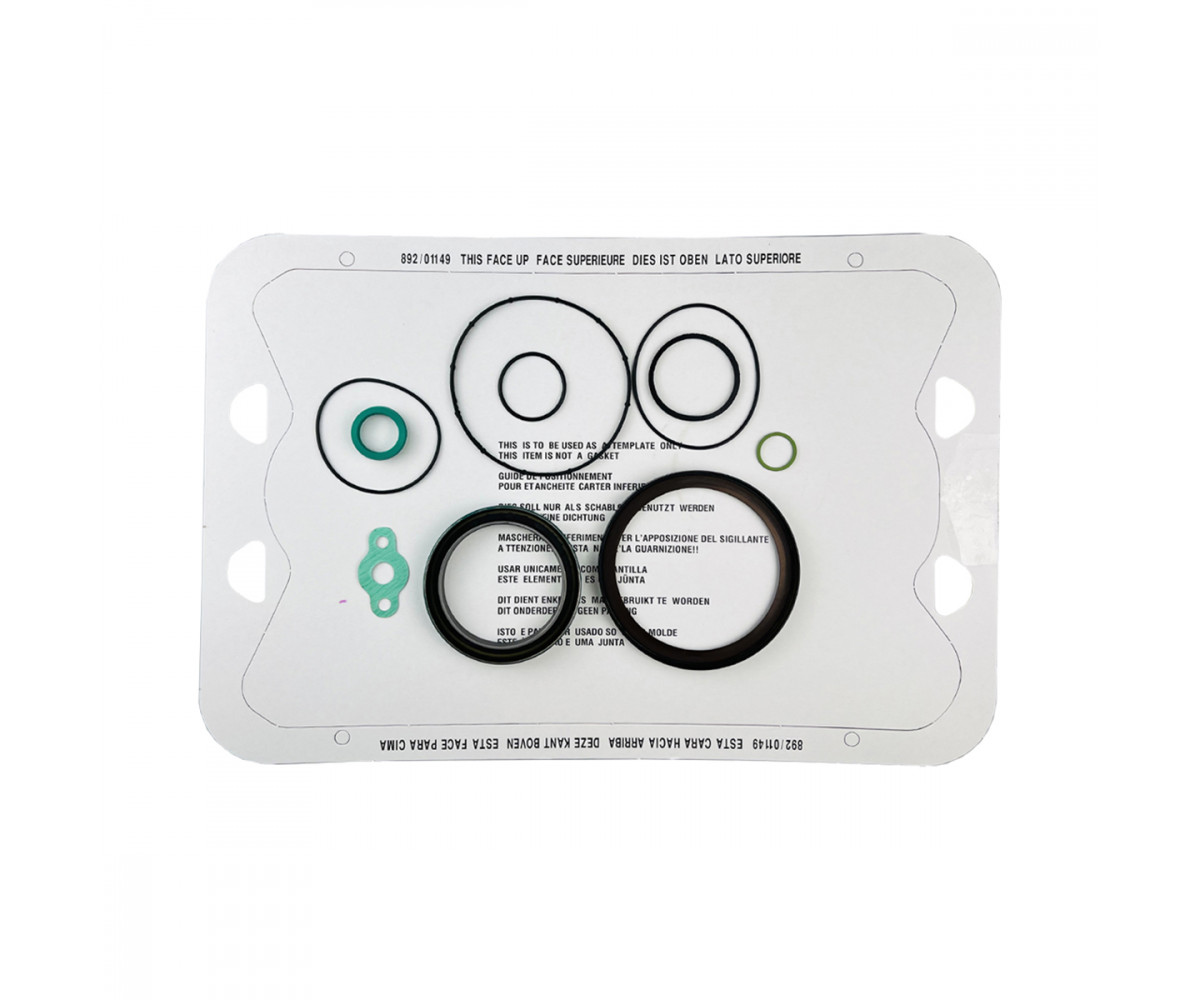

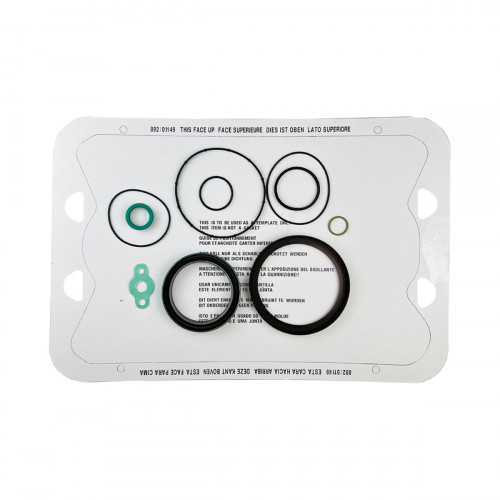

Bottom engine gasket set 320/09383 is an aftermarket set for lower-engine work on the SB version of the JCB Dieselmax 444. The card numbers are 320/09281, 320/09298 and 320/09218; the photo shows the O-rings and seals on a fitting card.

The bottom gasket set holds the seals of the lower engine: O-rings, oil seals and gaskets for the sump and front cover. It is used for crankshaft, bearing or oil pump work that needs the sump removed, and for curing oil leaks from below. A leak usually shows as oil traces on the sump joint, drips under the engine and a falling oil level. Contents can differ between engine versions, so compare the parts in the pack with the gaskets removed.

Specifications

Part number	320/09383
Cross / alternative numbers	320/09281, 320/09298, 320/09218
Production type	Aftermarket
Part type	Engine gasket set
System / group	Engine
Machine make	JCB
Set	Bottom (sump)

Compatibility

The set suits Dieselmax SB engines in JCB 3C, 3CX and 4CX backhoe loaders. Compare it with the genuine JCB set of the same number; other engine parts are in JCB Dieselmax engine.

Fitting

Before fitting, the joint faces are cleaned completely of old gasket and sealant; bolts are tightened in a cross pattern to JCB torque. Engine oil and the oil filter are changed after assembly. For the cylinder head side use the SB top gasket set.

Specifications

Machine system
Engine
Part type
Engine gasket set
Machine brand
JCB
Manufacturing type
Aftermarket
Compatibility
JCB Dieselmax 444 (SB)
Additional info
Bottom set

Questions: 0

No questions about this product.
