Battery terminal set, aftermarket

29658

Brand
JF Parts
Article
29658
Machine system
Electrics
Part type
Battery terminal set
Machine brand
JCB
Manufacturing type
Aftermarket
All the features

In stock

0,00 ₺

We do not publish prices: they depend on exchange rates and change often. Click «Request price» and we will quote the current price on the day you ask.

Check the exact specifications and compatibility with your machine with our managers.

We are available Monday to Saturday, 9:00 – 18:00; closed on Sunday.

Free delivery to the carrier of your choice, or collect your order in Istanbul.

Could not find the part you need? Write to us and we will help you find an alternative or order it from the manufacturer.

Message on WhatsApp Message on Telegram Call us: +90 531 224 49 66

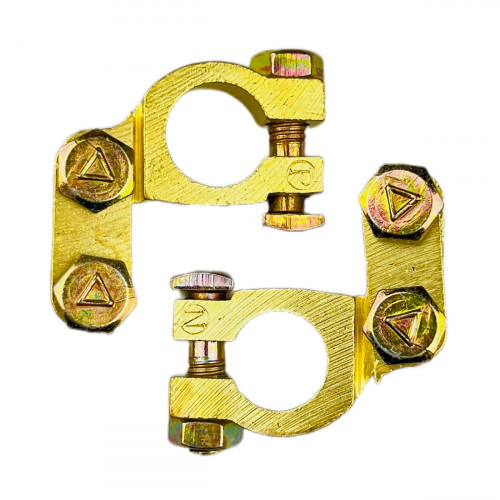

For the construction machines: battery terminal set, an aftermarket part. The card gives no part number. According to the product card, the set contains positive and negative terminals, chosen by the diameter of the battery posts.

The positive and negative terminals differ in bore diameter, just as the battery posts do, the positive post being thicker. Each terminal is therefore fitted to its own post without being forced open. The cable is clamped over the full contact area, with the strands cleaned first. A white or greenish deposit on the terminals is a sign of corrosion; it is cleaned off, and the terminal is coated with protective grease after tightening.

Specifications

Production type	Aftermarket
Part type	Battery terminal set
System / group	Electrics
Machine make	JCB

Compatibility

The card gives no original part number. Fit is confirmed by the dimensions and machine model. Other parts are in Wiring.

Fitting

Disconnect the negative terminal first when removing and connect it last when fitting. Do not overtighten the terminals, or the battery posts may be damaged.

Specifications

Machine system
Electrics
Part type
Battery terminal set
Machine brand
JCB
Manufacturing type
Aftermarket

Questions: 0

No questions about this product.
