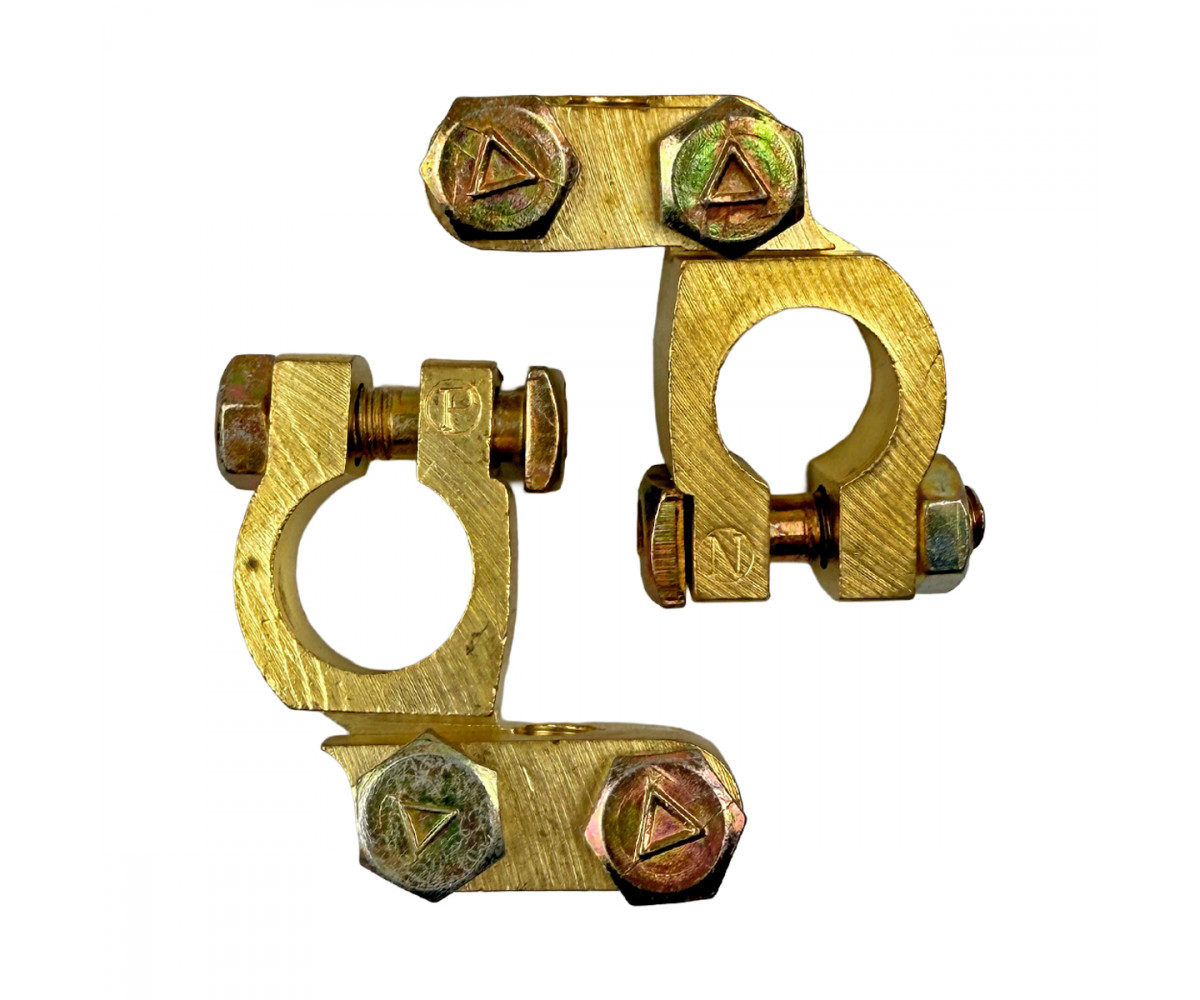

1000 g battery terminal set, aftermarket

29661

Brand
JF Parts
Article
29661
Machine system
Electrics
Part type
Battery terminal set
Machine brand
JCB
Manufacturing type
Aftermarket
All the features

In stock

0.00 ₺

We do not publish prices: they depend on exchange rates and change often. Click «Request price» and we will quote the current price on the day you ask.

Check the exact specifications and compatibility with your machine with our managers.

We are available Monday to Saturday, 9:00 – 18:00; closed on Sunday.

Free delivery to the carrier of your choice, or collect your order in Istanbul.

Could not find the part you need? Write to us and we will help you find an alternative or order it from the manufacturer.

Message on WhatsApp Message on Telegram Call us: +90 531 224 49 66

1000 g battery terminal set is an aftermarket part for the construction machines. The card gives no part number. According to the product card, the set contains positive and negative terminals, chosen by the diameter of the battery posts.

On construction machines the battery and terminals are exposed to heavy vibration, so terminals working loose is common and they are checked at every service. Heavy terminals of thick brass heat up less at the high cranking currents of diesel engines. A cracked terminal or one with a stripped bolt thread is replaced, since a makeshift twist or a packing plate leads to heating and sparking.

Specifications

Production type	Aftermarket
Part type	Battery terminal set
System / group	Electrics
Machine make	JCB

Compatibility

The card gives no original part number. Fit is confirmed by the dimensions and machine model. Other parts are in Wiring.

Fitting

Disconnect the negative terminal first when removing and connect it last when fitting. Do not overtighten the terminals, or the battery posts may be damaged.

Specifications

Machine system
Electrics
Part type
Battery terminal set
Machine brand
JCB
Manufacturing type
Aftermarket

Questions: 0

No questions about this product.
