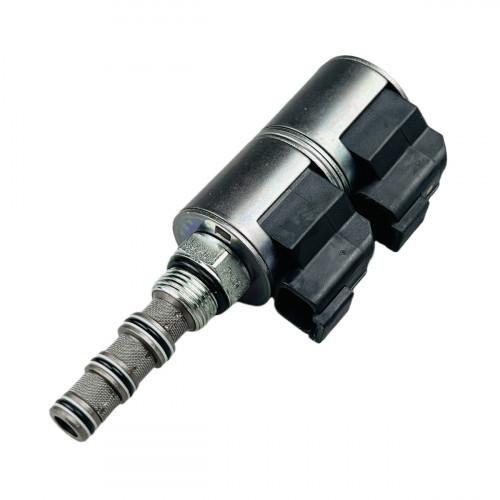

Twin-coil solenoid valve 12 V 25/MM5000 JCB, genuine

25/MM5000

Brand
JCB
Article
25/MM5000
Machine system
Hydraulic system
Part type
Solenoid valve
Machine brand
JCB
Manufacturing type
Original
All the features

In stock

0,00 ₺

We do not publish prices: they depend on exchange rates and change often. Click «Request price» and we will quote the current price on the day you ask.

Check the exact specifications and compatibility with your machine with our managers.

We are available Monday to Saturday, 9:00 – 18:00; closed on Sunday.

Free delivery to the carrier of your choice, or collect your order in Istanbul.

Could not find the part you need? Write to us and we will help you find an alternative or order it from the manufacturer.

Message on WhatsApp Message on Telegram Call us: +90 531 224 49 66

For the JCB machines: twin-coil solenoid valve 12 V 25/MM5000, a genuine JCB part. The card also lists 25/MM4825.

The connectors of the two coils must not be mixed up, since swapped connectors make the function work in reverse, so label them when removing. Find the faulty coil by measuring each coil's resistance. The cartridge O-rings and back-up rings must not be cut when fitting, since a cut O-ring causes internal leakage and the function creeps. After the change, test the function in both directions. The valve comes new. Keep the coil connectors clean and dry.

Specifications

Part number	25/MM5000
Cross / alternative numbers	25/MM4825
Manufacturer	JCB
Production type	Original
Part type	Solenoid valve
System / group	Hydraulic system
Machine make	JCB

Compatibility

The catalogue also has the aftermarket version of this part. Other parts are in Solenoids and valves.

Fitting

Before the change, stop the engine, relieve the hydraulic pressure by moving the control levers a few times and switch off the ignition. Unplug the coil and remove the valve or cartridge. Lubricate the O-rings of the new part with clean hydraulic oil, fit it into its cavity without tilting and tighten to the specified torque. After connecting the plug, start the engine, test the function and check for leaks.

Specifications

Machine system
Hydraulic system
Part type
Solenoid valve
Machine brand
JCB
Manufacturing type
Original
