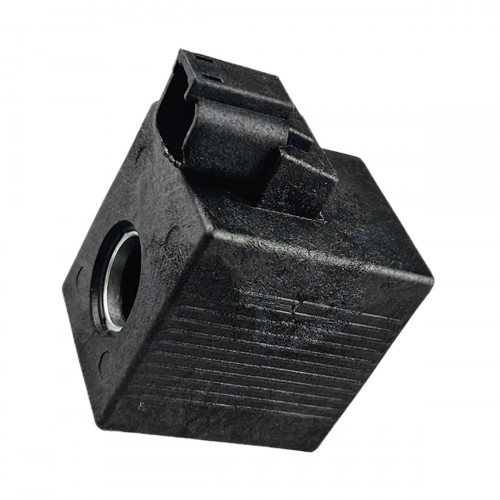

Crab steer solenoid coil 12 V 25/222645, aftermarket

25/222645

Brand
INTER
Article
25/222645
Machine system
Electrics
Part type
Solenoid coil
Machine brand
JCB
Manufacturing type
Aftermarket
All the features

In stock

0.00 ₺

We do not publish prices: they depend on exchange rates and change often. Click «Request price» and we will quote the current price on the day you ask.

Check the exact specifications and compatibility with your machine with our managers.

We are available Monday to Saturday, 9:00 – 18:00; closed on Sunday.

Free delivery to the carrier of your choice, or collect your order in Istanbul.

Could not find the part you need? Write to us and we will help you find an alternative or order it from the manufacturer.

Message on WhatsApp Message on Telegram Call us: +90 531 224 49 66

Crab steer solenoid coil 12 V 25/222645 is an aftermarket part for the JCB machines.

This 12 V coil fits the crab steer solenoid of the steer mode valve on JCB machines with all-wheel steer. According to sources, 25/222645 is the coil of the valve that locks the wheels in crab position, described as made by Rexroth, and is used on JCB backhoe loaders and Loadall telehandlers. With a burnt coil, crab steer does not engage, though the other modes may still work. A fault is found by measuring resistance or checking whether the core becomes magnetic when voltage is applied. The coil comes new with a bore that suits the cartridge. The coil is chosen by comparing its voltage and bore with the old one.

Specifications

Part number	25/222645
Production type	Aftermarket
Part type	Solenoid coil
System / group	Electrics
Machine make	JCB

Compatibility

The catalogue also has the genuine version of this part. Other parts are in Solenoids and valves.

Fitting

Moisture and corrosion inside the connector are a common cause of false signals from sensors and switches, so clean the connector and use contact spray if needed. Renew the connector seal if it is missing. The part is chosen by part number, and its connector type is compared with the old part.

Specifications

Machine system
Electrics
Part type
Solenoid coil
Machine brand
JCB
Manufacturing type
Aftermarket

Questions: 0

No questions about this product.
