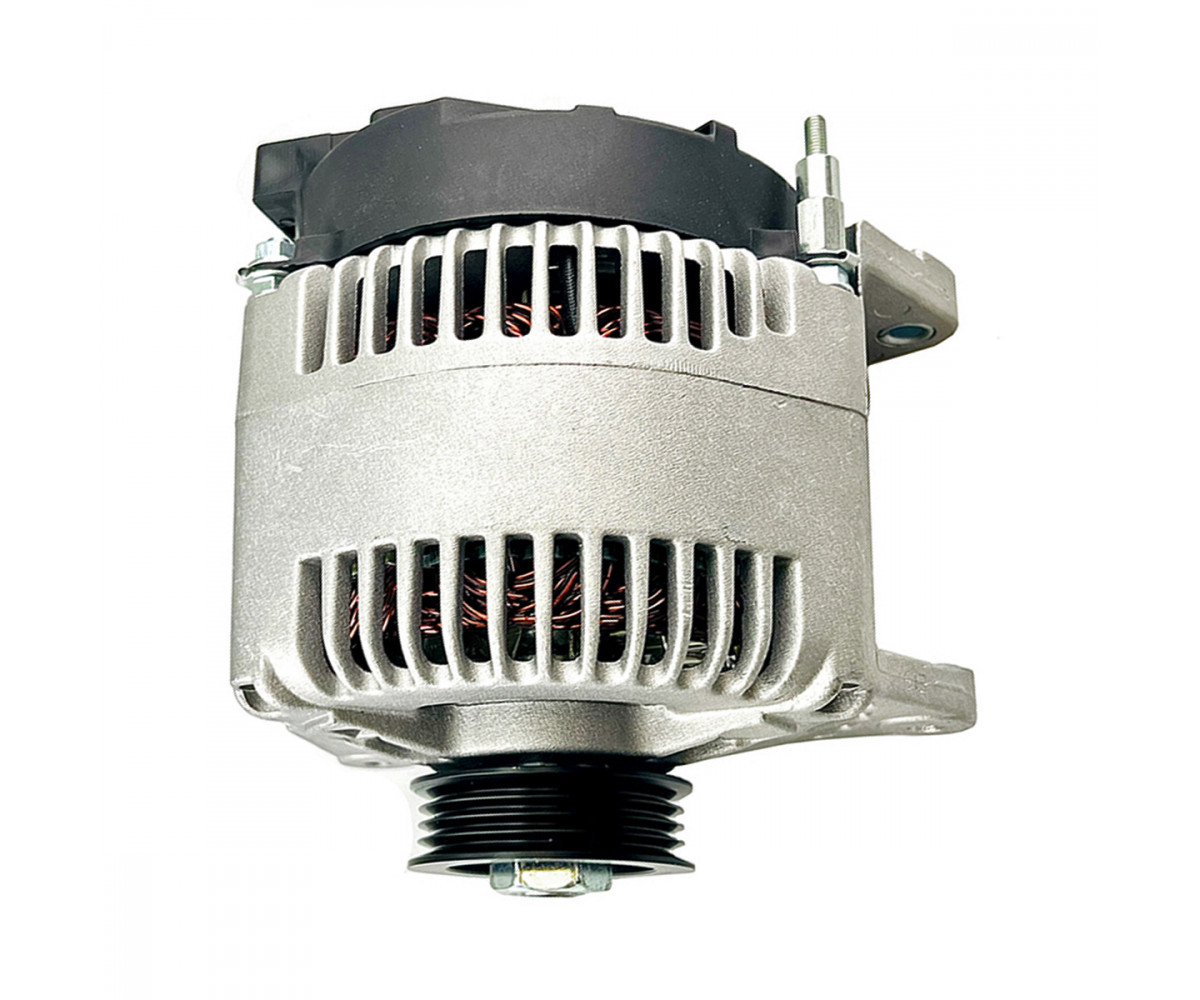

Alternator 714/40476 JCB 3CX/4CX, aftermarket

ALE3005UX

Brand
KRAUF
Article
ALE3005UX
Machine system
Electrics
Part type
Alternator
Machine brand
JCB, HIDROMEK, MST
Manufacturing type
Aftermarket
Compatibility
JCB 3CX, 4CX
Machine series
3CX, 4CX, 5CX
Number of pulley grooves
4,6 pcs
Voltage
12 V
Signal type
L(Bolt)
Mounting dimension A
31 mm
All the features

In stock

0.00 ₺

We do not publish prices: they depend on exchange rates and change often. Click «Request price» and we will quote the current price on the day you ask.

Check the exact specifications and compatibility with your machine with our managers.

We are available Monday to Saturday, 9:00 – 18:00; closed on Sunday.

Free delivery to the carrier of your choice, or collect your order in Istanbul.

Could not find the part you need? Write to us and we will help you find an alternative or order it from the manufacturer.

Message on WhatsApp Message on Telegram Call us: +90 531 224 49 66

For the JCB 3CX and 4CX backhoe loaders: alternator 714/40476, an aftermarket part. The card also lists 714/40153.

Alternators differ in voltage (12 V or 24 V), current output, pulley type and mounting lugs, so the alternator is chosen by part number and compared with the old one. The number of grooves and the diameter of the pulley must suit the engine belt, since a wrong pulley makes the belt slip and wear. Over time the bearings, brushes and diodes wear, and bearing noise or a rustle as it turns is the first sign of bearing wear. The alternator label shows the maker's code, voltage and current rating, which are compared with the old unit when choosing.

Specifications

Part number	714/40476
Cross / alternative numbers	714/40153
Production type	Aftermarket
Part type	Alternator
System / group	Electrics
Machine make	JCB, HIDROMEK, MST
Series / model	3CX, 4CX, 5CX

Compatibility

According to the product card, this is a 12 V alternator linked to the Mahle AAK4598 reference. Compare the pulley and terminal type (L) with the old alternator. The catalogue also has the OEM version of this part. Other parts are in Alternators.

Fitting

Before removing the alternator, disconnect the battery negative and label the cables. Fit the new alternator, tighten its bolts and set the belt to the specified tension. After connecting the cables, reconnect the battery, start the engine, measure the charging voltage at the battery terminals and check that the charge lamp goes out.

Specifications

Machine system
Electrics
Part type
Alternator
Machine brand
JCB, HIDROMEK, MST
Manufacturing type
Aftermarket
Compatibility
JCB 3CX, 4CX
Machine series
3CX, 4CX, 5CX
Number of pulley grooves
4,6 pcs
Voltage
12 V
Signal type
L(Bolt)
Mounting dimension A
31 mm
Mounting dimension C
83 mm
Mounting dimension B
13 mm
Current
100 amp
Connector type
PAL0265
Water pump
No

Questions: 0

No questions about this product.
