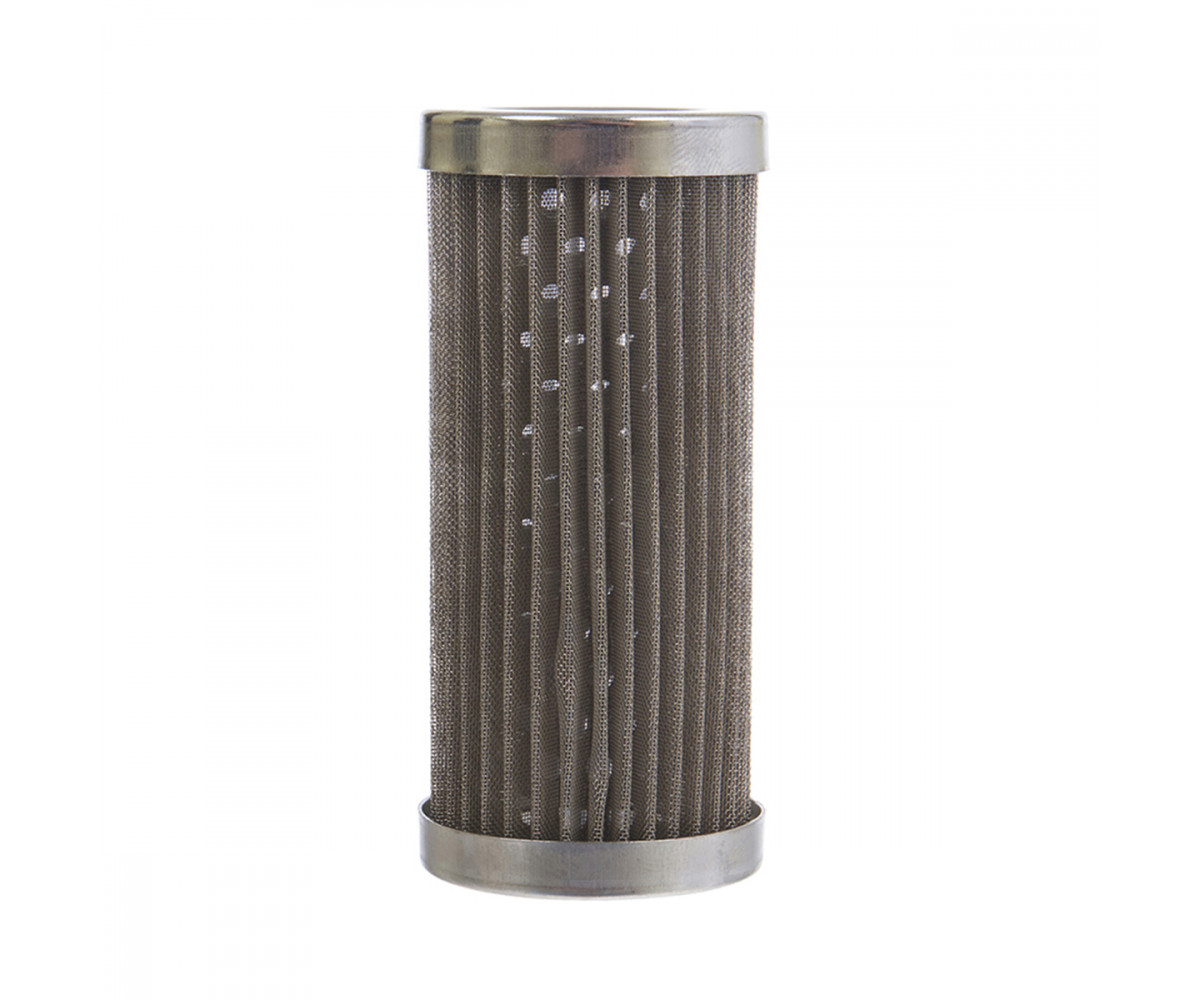

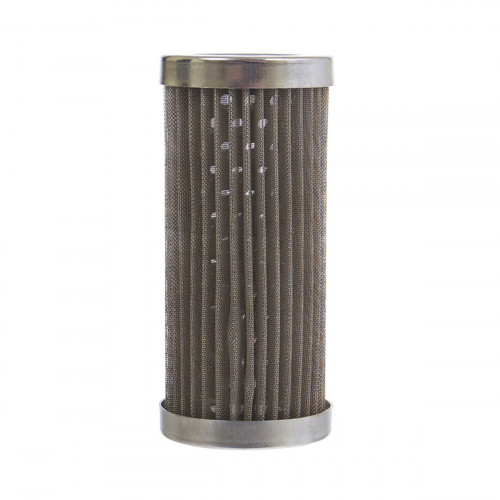

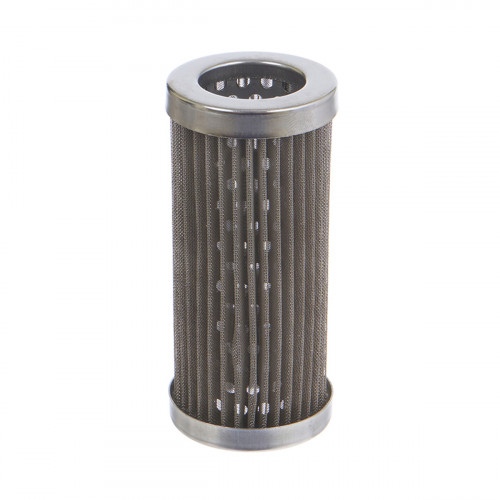

Transmission filter 135859/278534A1 Carraro, aftermarket

Transmission filter 135859/278534A1 is an aftermarket part for the backhoe loaders with Carraro axles.

The transmission filter traps wear particles and clutch lining dust in the transmission oil, protecting the gears, bearings, clutches and control valve. In Powershift gearboxes the clutches are engaged by oil pressure, so dirty oil can make the control valve spools stick and upset gear changes. The filter is changed together with the transmission oil at the maker's interval. The transmission filter's bypass valve lets oil reach the gearbox when the oil is cold or the filter is clogged, but the oil is then not filtered, so the filter is changed at the specified interval.

Specifications

Compatibility

According to the product card, Carraro 135859 is a transmission filter; cross numbers: 278534A1, VOE11709050. Fit is confirmed by the axle or transmission type. Other parts are in Carraro.

Fitting

The change is made with the engine stopped and the machine on level ground, collecting the oil in a container. After fitting, start the engine, check for leaks around the filter and top up the oil level. Use only transmission oil of the type and viscosity the gearbox maker recommends, since the wrong oil can make the clutches slip or engage harshly. Record the date and engine hours of the change in the service log.
