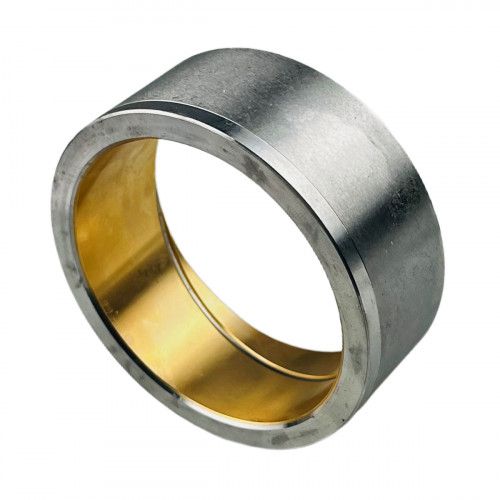

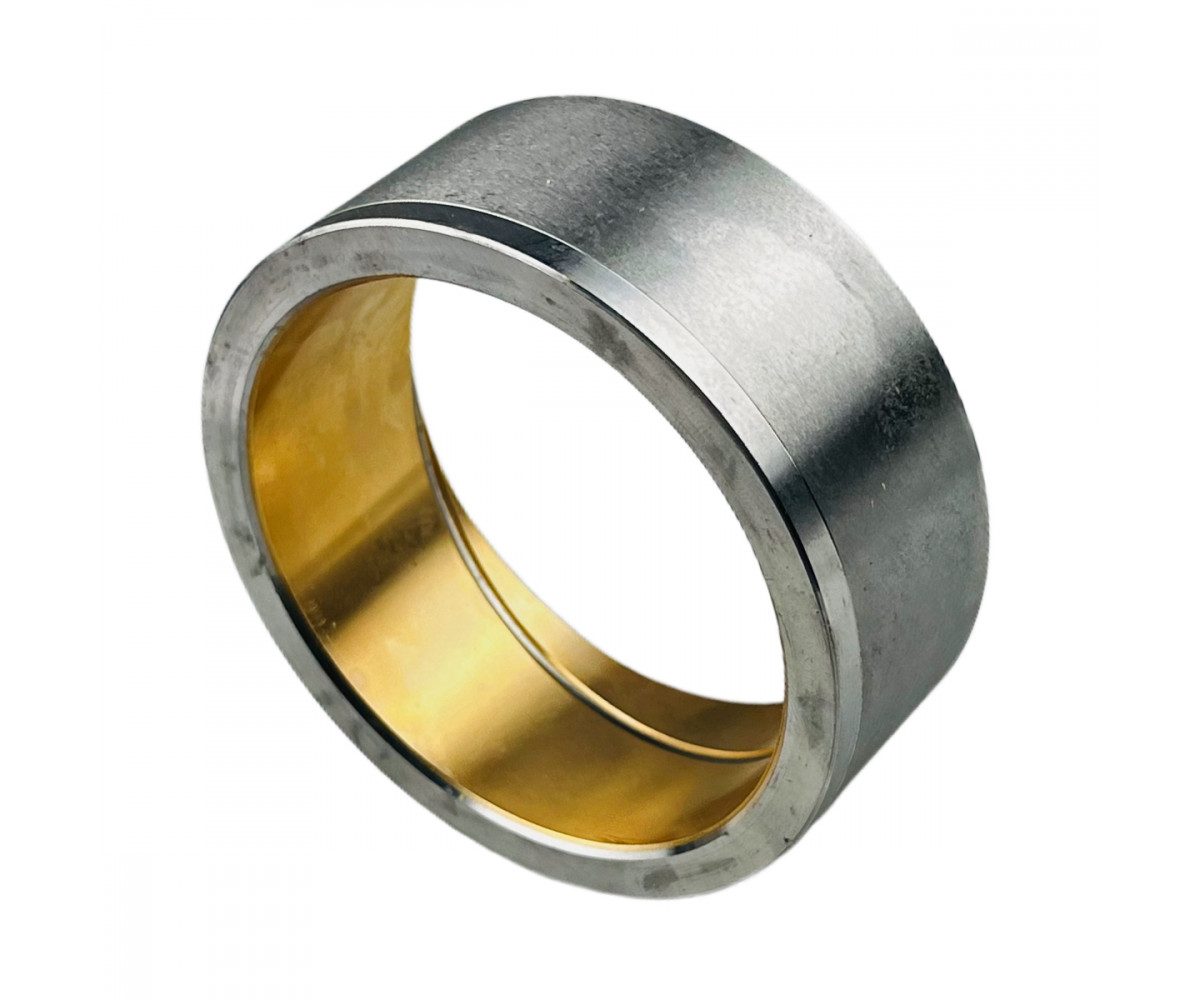

Brass carriage swing ram bush 808/00388 JCB 3CX/4CX, genuine

For the JCB 3CX and 4CX backhoe loaders: brass carriage swing ram bush 808/00388, a genuine JCB part. According to the product card, this part is a carriage swing ram bush, material: brass.

Bushes differ in inside and outside diameter, length, material (hardened steel, bronze or brass) and the shape of the grease passage, and each joint has its own part number. Split bushes close up slightly as they are fitted into the eye, which makes them easier to change. Repair-size bushes are made with a larger outside diameter for worn and re-bored eyes. The bush is chosen by part number to suit the pin diameter and eye size. The two bushes in one joint are usually replaced together.

Specifications

Compatibility

According to the product card, the part number is 808/00388. The card also lists 332/G0942, 401/E8551. Fit is confirmed by the part number and the machine serial number. The catalogue also has the aftermarket version (brass) and aftermarket version (steel) of this part. Other parts are in JCB CX series bushings.

Fitting

Remove the old bush with a puller or press, clean the eye and remove any burrs. Lightly oil the new bush and press it in square to the axis, then fit the pin and grease the joint.
