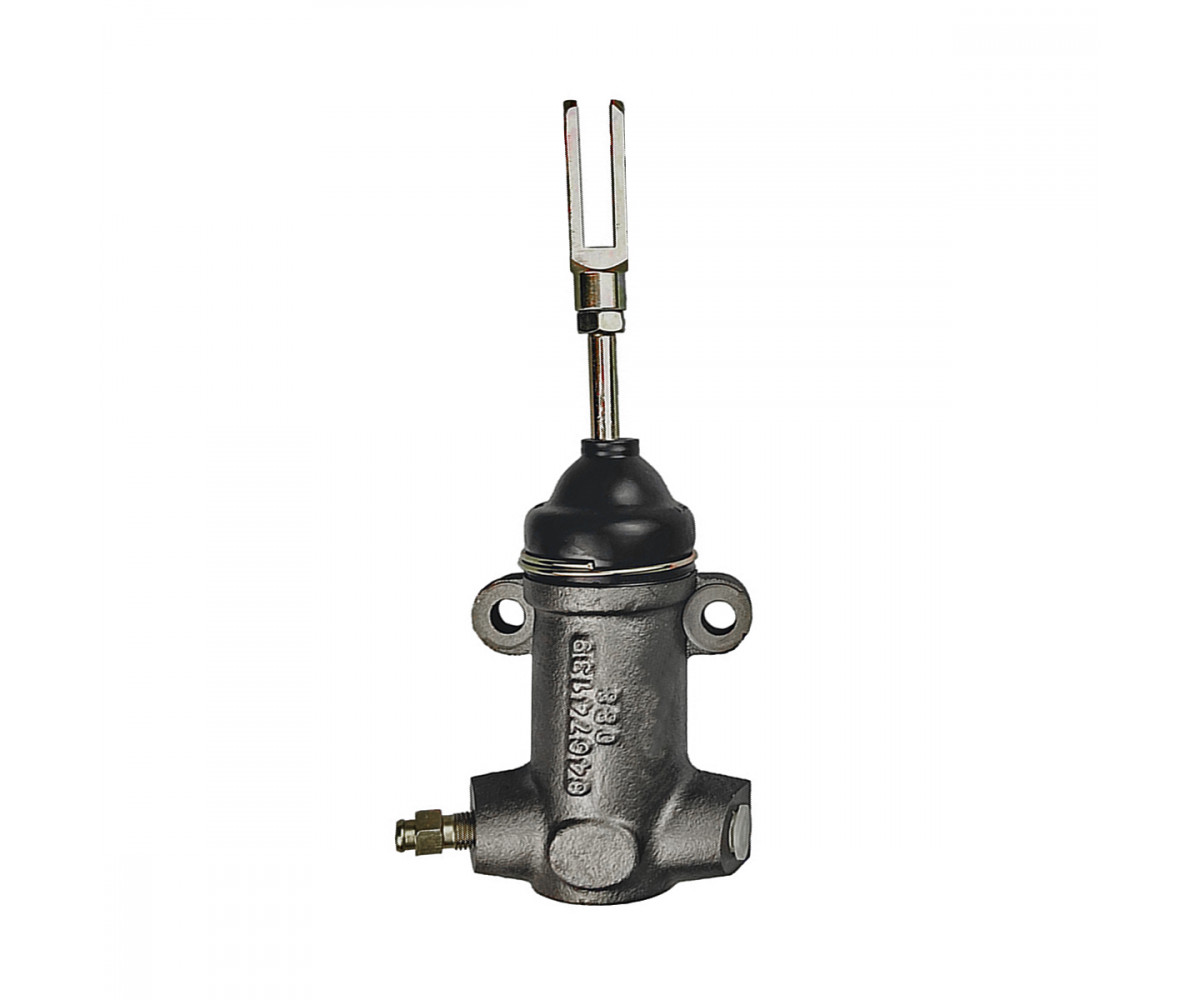

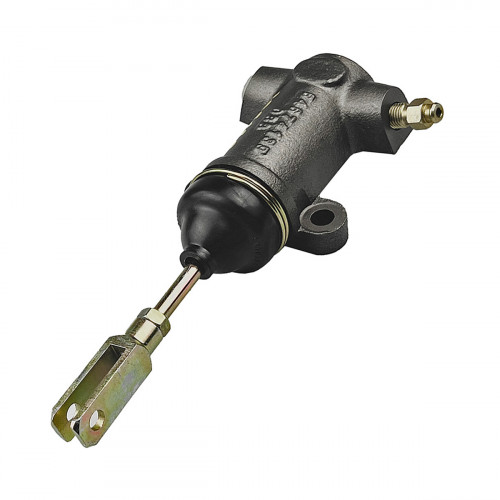

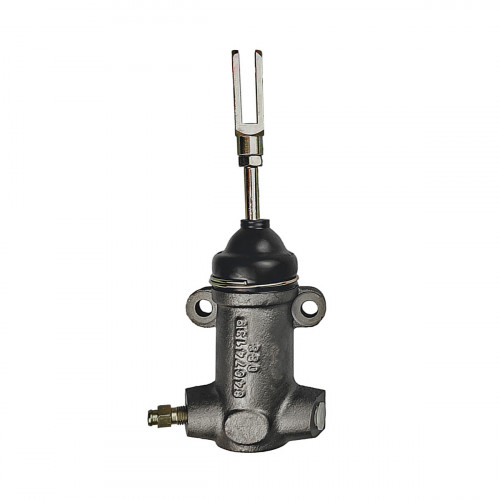

Brake cylinder 396130 New Holland, aftermarket

For the New Holland machines: brake cylinder 396130, an aftermarket part.

A brake cylinder fault usually develops slowly, and the operator gets used to the change in pedal feel. Early signs are a pedal that goes a little lower every day, brakes that recover after pumping, a falling reservoir level or oily dirt building up around the cylinder. When these signs appear, the cylinder is checked at once: the brake system is responsible for stopping the machine safely, so the repair is not put off. After any brake repair, the fluid level and pedal height are watched for a few days; a falling level or a pedal that sinks again shows that a leak remains elsewhere. Cylinders for the left and right sides of one axle are often renewed together so that the braking force stays equal on both sides.

Specifications

Compatibility

According to the product card, 396130 is a brake cylinder. Fit is confirmed by the part number. Other parts are in Brake cylinders.

Fitting

Before replacing the cylinder, park the machine on level ground and chock the wheels. Catch the fluid in a container when undoing the unions and plug the open ends. After fitting, bleed the system, check for leaks and test the brakes at low speed.
