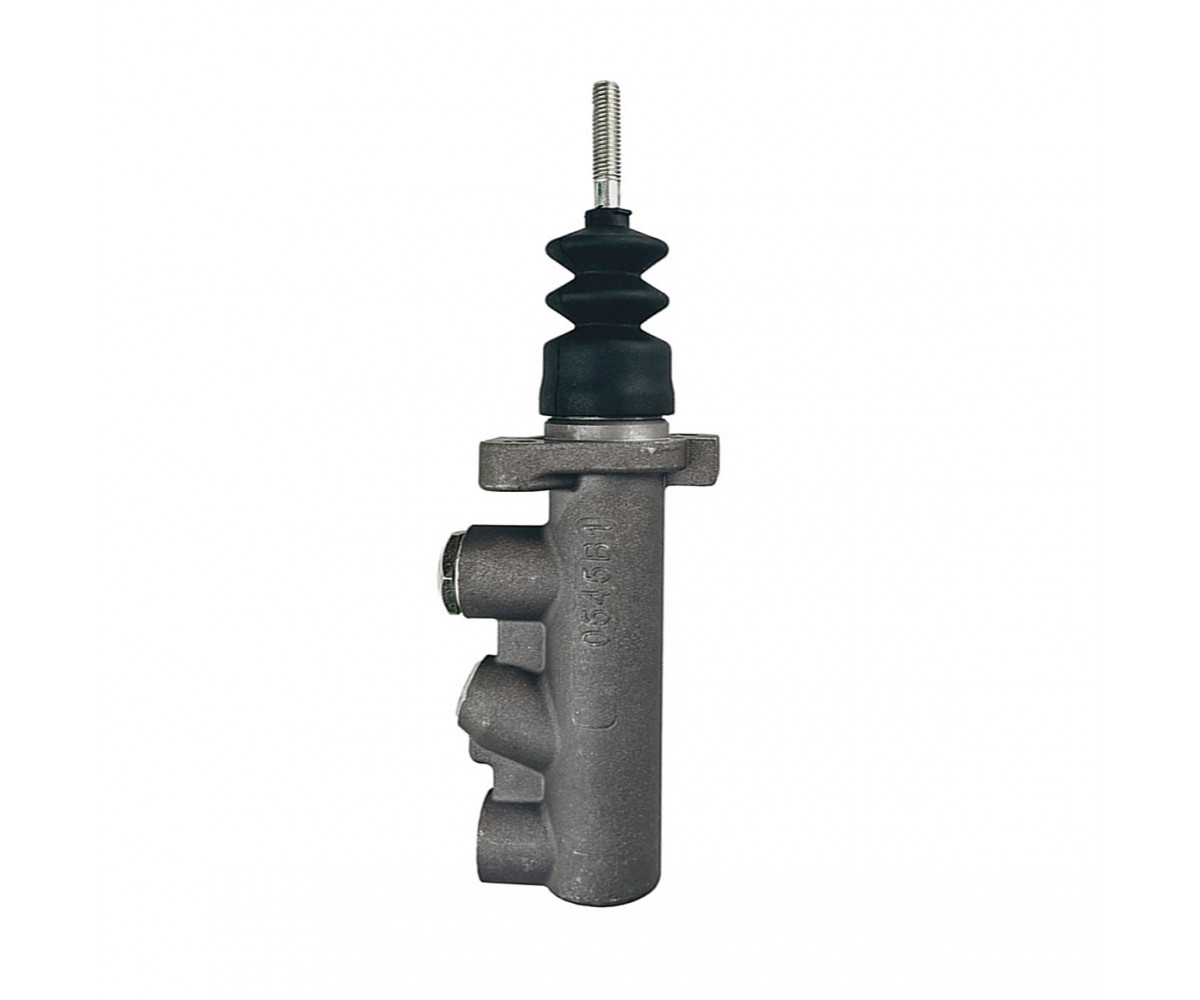

Brake cylinder 89509901 Case/NH, aftermarket

Brake cylinder 89509901 is an aftermarket part for the Case and New Holland machines.

A brake cylinder is the element of a hydraulic brake system that either generates pressure or turns it into mechanical force. The piston inside the body is sealed by rubber cups and moves under pedal force or under pressure from the line. Over time the seals harden and wear, leading to fluid leaks, a soft pedal, late brake application or weaker braking at one wheel. If the dust boot is torn, dirt gets into the cylinder and scores the bore. After any brake repair, the fluid level and pedal height are watched for a few days; a falling level or a pedal that sinks again shows that a leak remains elsewhere. Cylinders for the left and right sides of one axle are often renewed together so that the braking force stays equal on both sides.

Specifications

Compatibility

According to the product card, 89509901 is a brake cylinder. Fit is confirmed by the part number. Other parts are in Brake cylinders.

Fitting

Before replacing the cylinder, park the machine on level ground and chock the wheels. Catch the fluid in a container when undoing the unions and plug the open ends. After fitting, bleed the system, check for leaks and test the brakes at low speed.
