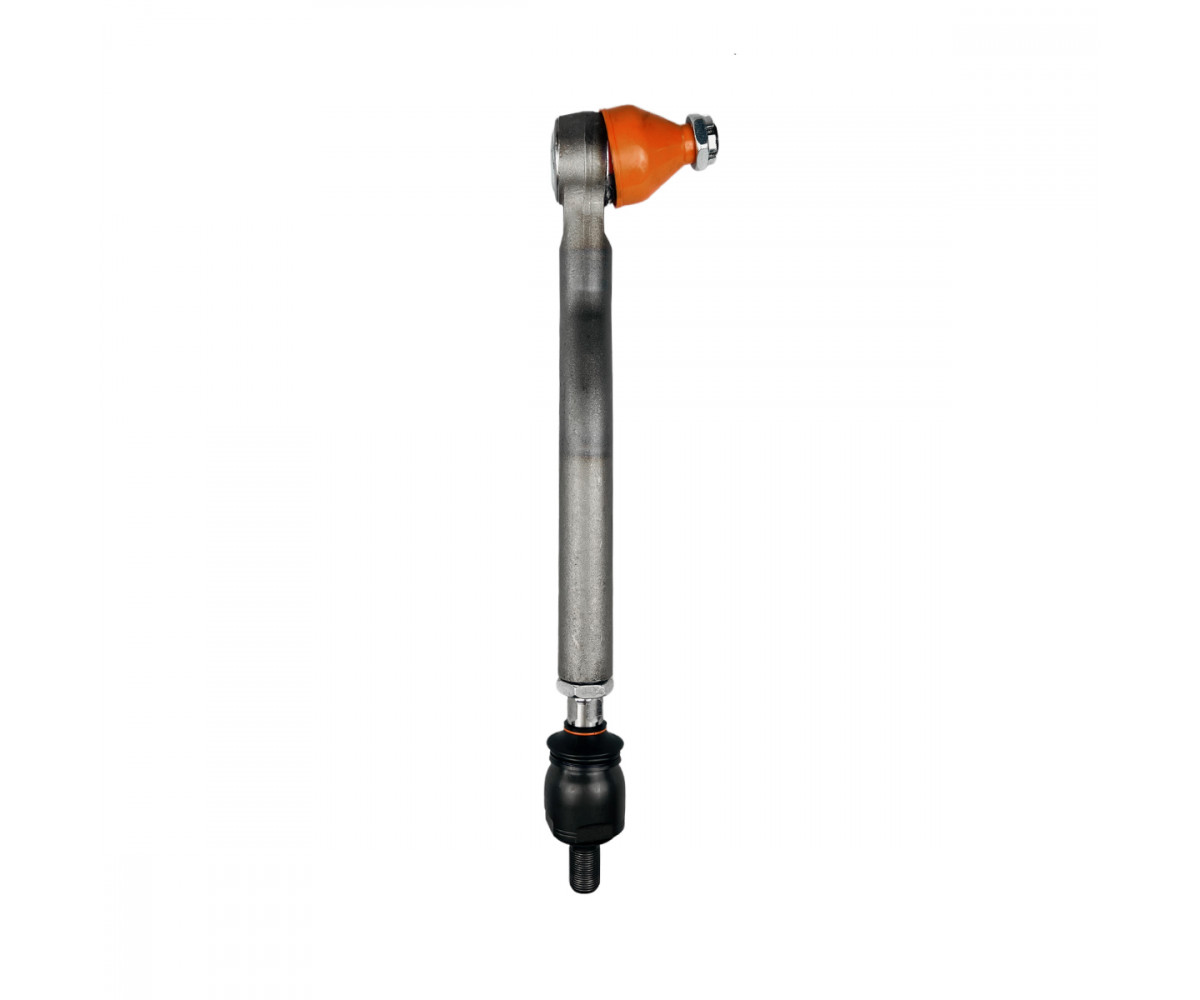

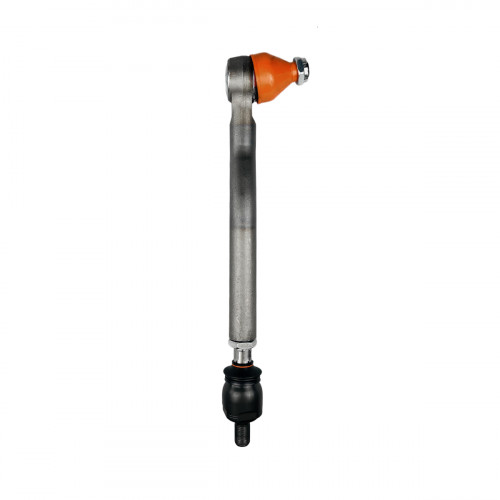

Track rod 601220 4015075, aftermarket

For the backhoe loaders and telehandlers: track rod 601220, an aftermarket part.

On some track rods the ball joint ends can be changed separately, but if the rod is bent, its threads damaged or both joints worn, a complete track rod assembly is the more dependable fix. The assembly comes with its length set at the factory and shortens fitting time. When choosing the rod, also consider whether the machine has two-wheel or four-wheel steering. The rod comes new, and it is checked to be straight before fitting.

Specifications

Compatibility

According to the product card, this is the track rod numbered 601220 (4015075); fit is confirmed by the old rod's number and length. Other parts are in Front axle.

Fitting

Before fitting the rod, clean the taper holes in the knuckles and check them for ovality, since a ball joint will not seat tightly in a worn hole. After torquing the nuts, fit new split pins, lock the adjusting nuts and check that both rod ends lie in the same plane. Recheck the nut torque after the first hours of work. When choosing a rod, compare it with the old one for length, thread direction and ball joint tapers, since a rod of a different length can make it impossible to set the toe-in. A bent rod is replaced, not straightened, because straightened steel is weakened and can bend again under load. Watch tyre wear in the first weeks after the change.
