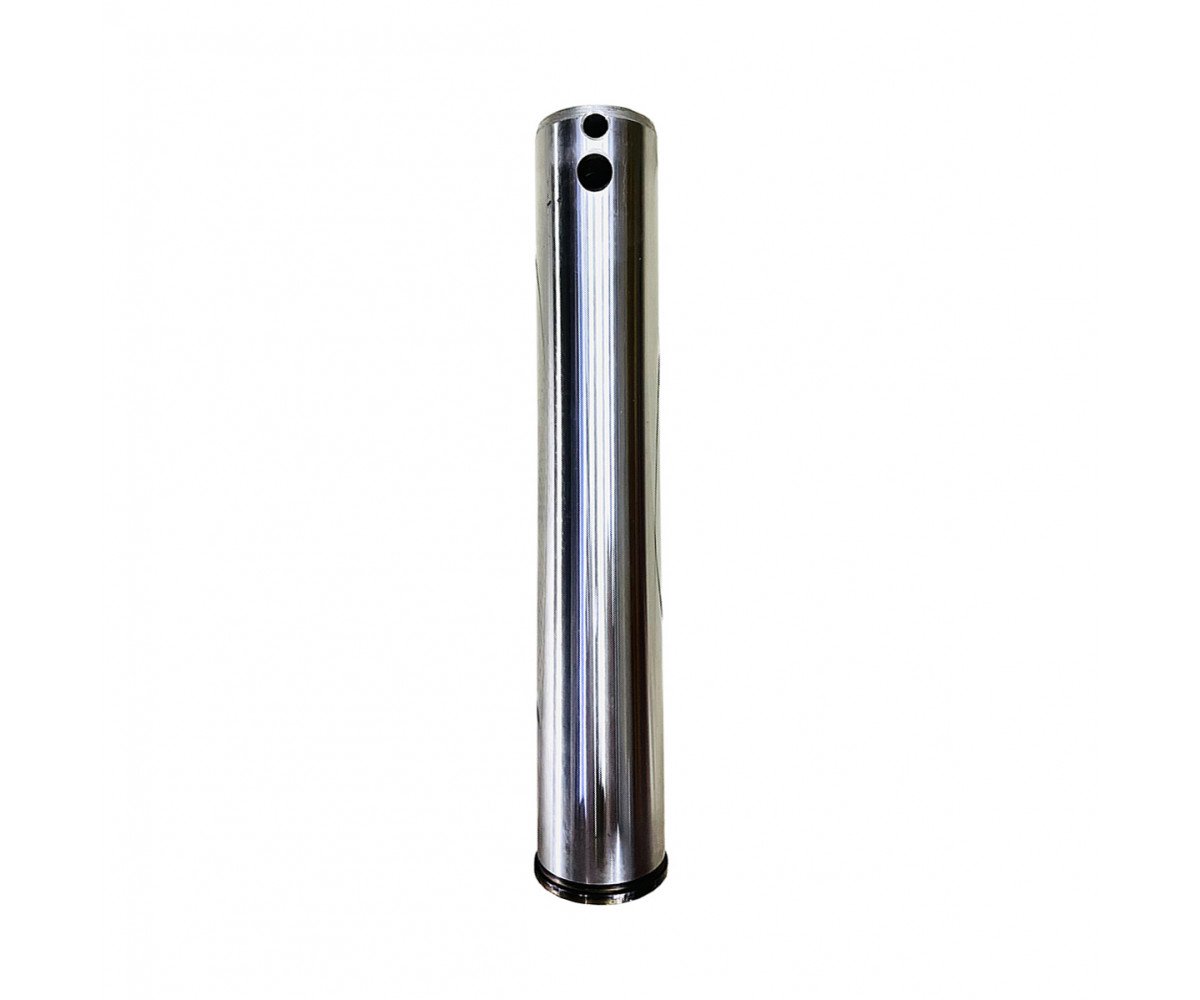

Joint pin 811/90382 JCB, aftermarket

811/90382

Brand
JF Parts
Article
811/90382
Machine system
Hydraulic system
Part type
Pin
Machine brand
JCB
Manufacturing type
Aftermarket
All the features

In stock

0,00 ₺

We do not publish prices: they depend on exchange rates and change often. Click «Request price» and we will quote the current price on the day you ask.

Check the exact specifications and compatibility with your machine with our managers.

We are available Monday to Saturday, 9:00 – 18:00; closed on Sunday.

Free delivery to the carrier of your choice, or collect your order in Istanbul.

Could not find the part you need? Write to us and we will help you find an alternative or order it from the manufacturer.

Message on WhatsApp Message on Telegram Call us: +90 531 224 49 66

Joint pin 811/90382 is an aftermarket part for the JCB machines.

A joint pin is a hardened steel shaft that connects two parts (boom, dipper, bucket, hydraulic cylinder or link) and forms the axis on which they pivot. The pin runs in a bush and carries all the forces of digging and loading. If greasing is neglected or the bush is worn, the pin surface becomes scored and play develops in the joint, causing knocks as the bucket moves, loss of precision and ovalled eyes.

Specifications

Part number	811/90382
Production type	Aftermarket
Part type	Pin
System / group	Hydraulic system
Machine make	JCB

Compatibility

According to the product card, 811/90382 is a pin. The card also lists 811/90281, KRV1380. Fit is confirmed by the part number. Other parts are in JCB JS series pins.

Fitting

Before the change, lower the attachment to the ground or support it securely, stop the engine and release the hydraulic pressure. Remove the locking element and drift the pin out with a suitable punch without damaging the eyes. After cleaning and checking the eye and bush, fit the new pin greased, refit the locking element and grease the joint until clean grease comes out.

Specifications

Machine system
Hydraulic system
Part type
Pin
Machine brand
JCB
Manufacturing type
Aftermarket

Questions: 0

No questions about this product.
