Hammer pipework kit 980/A6291 JCB 3CX/4CX, aftermarket

980/A6291

Brand
JF Parts
Article
980/A6291
Machine system
Attachments
Part type
Hammer pipework kit
Machine brand
JCB
Manufacturing type
Aftermarket
Compatibility
JCB 3CX, 4CX
Machine series
3CX, 4CX
Additional info
Installation guide included
All the features

In stock

0,00 ₺

We do not publish prices: they depend on exchange rates and change often. Click «Request price» and we will quote the current price on the day you ask.

Check the exact specifications and compatibility with your machine with our managers.

We are available Monday to Saturday, 9:00 – 18:00; closed on Sunday.

Free delivery to the carrier of your choice, or collect your order in Istanbul.

Could not find the part you need? Write to us and we will help you find an alternative or order it from the manufacturer.

Message on WhatsApp Message on Telegram Call us: +90 531 224 49 66

Hammer pipework kit 980/A6291 is an aftermarket part for the JCB 3CX and 4CX backhoe loaders.

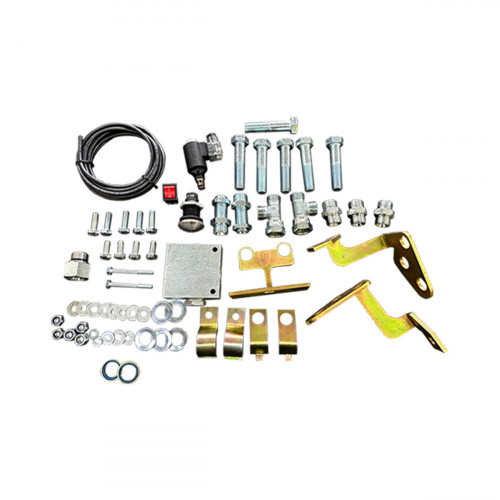

The hammer pipework kit brings together the line parts needed to connect a hydraulic breaker to a backhoe loader. The photo shows the contents: hoses, steel pipes, brackets, clamps, unions and fixings. The card states that an installation guide is included. The kit is listed for JCB 3CX and 4CX backhoe loaders. The hammer line starts at an extra section of the control valve or an attachment valve and runs along the arm to the end of the dipper, while the breaker's return line takes the oil back to tank with low resistance. Before fitting, check that the machine's hydraulic circuit suits a hammer line. After installation, set the working pressure and flow to the breaker maker's figures. The kit is chosen by part number; before fitting, check its contents against the list in the guide.

Specifications

Part number	980/A6291
Production type	Aftermarket
Part type	Hammer pipework kit
System / group	Attachments
Machine make	JCB
Series / model	3CX, 4CX

Compatibility

Other parts are in Hydraulic pipes.

Fitting

Fit the kit in the order given in the guide: brackets and pipes first, then the hoses. After tightening every connection, run the breaker briefly and check the line for leaks.
