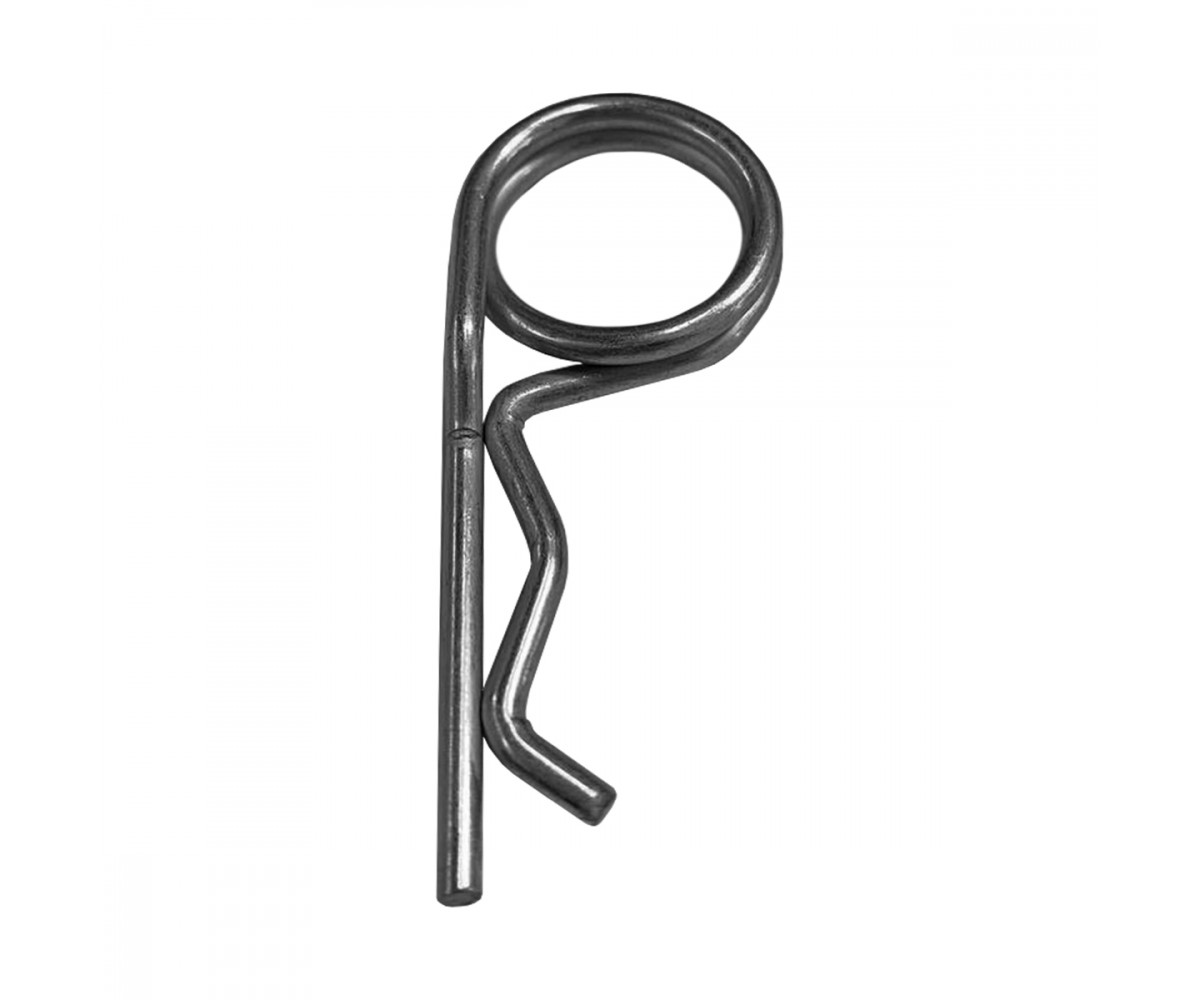

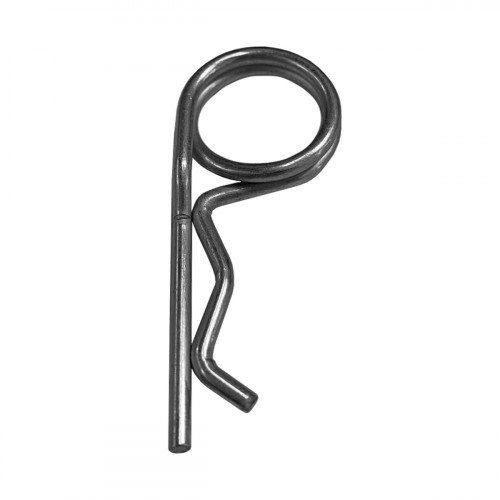

Telescopic lock pin clip 122/34401 JCB Loadall, genuine

Telescopic lock pin clip 122/34401 is a genuine JCB part for the JCB Loadall telehandlers. According to the product card, this part is a telescopic lock pin clip.

A locking pin holds a part in a set position: forklift tines on the carriage, the boom in its travel position or an attachment on its mounting. The boom travel lock is a safety element that stops the boom lowering by itself while driving on the road or during maintenance, and the tine lock stops the forks sliding under load. A worn or bent pin does not seat fully and the part may move unexpectedly. The pin is chosen by part number for the type of lock and is used together with its safety element (spring, clip or chain).

Specifications

Compatibility

According to the product card, the part number is 122/34401. The card also lists 530/14001. Fit is confirmed by the part number and the machine serial number. The catalogue also has the aftermarket version of this part. Other parts are in Front loader arm.

Fitting

Before fitting the pin, clean the holes and oil them lightly. Push the pin fully home and fit the safety element. Check by hand that the locked part really is held, and do not operate the machine until this has been checked.
