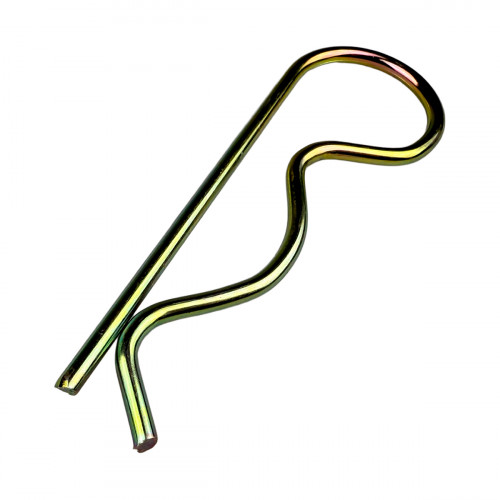

Telescopic lock pin clip 122/34401 JCB Loadall, aftermarket

For the JCB Loadall telehandlers: telescopic lock pin clip 122/34401, an aftermarket part. According to the product card, this part is a telescopic lock pin clip.

Locking pins may be small, but they play an important part in the safe use of the machine. A fork lock pin holds the tines at the required spacing on the carriage; if the pin wears or is lost, the tines can slide sideways under load and unbalance it. A boom lock pin protects anyone working under the boom during maintenance. Pins are secured with a spring or clip, which must also be sound. The pin is chosen by part number for the mechanism it locks, as a thinner or shorter pin sits loosely in its hole and does not give the expected security.

Specifications

Compatibility

According to the product card, the part number is 122/34401. The card also lists 530/14001. Fit is confirmed by the part number and the machine serial number. The catalogue also has the genuine version of this part. Other parts are in Front loader arm.

Fitting

Before fitting the pin, clean the holes and oil them lightly. Push the pin fully home and fit the safety element. Check by hand that the locked part really is held, and do not operate the machine until this has been checked.
