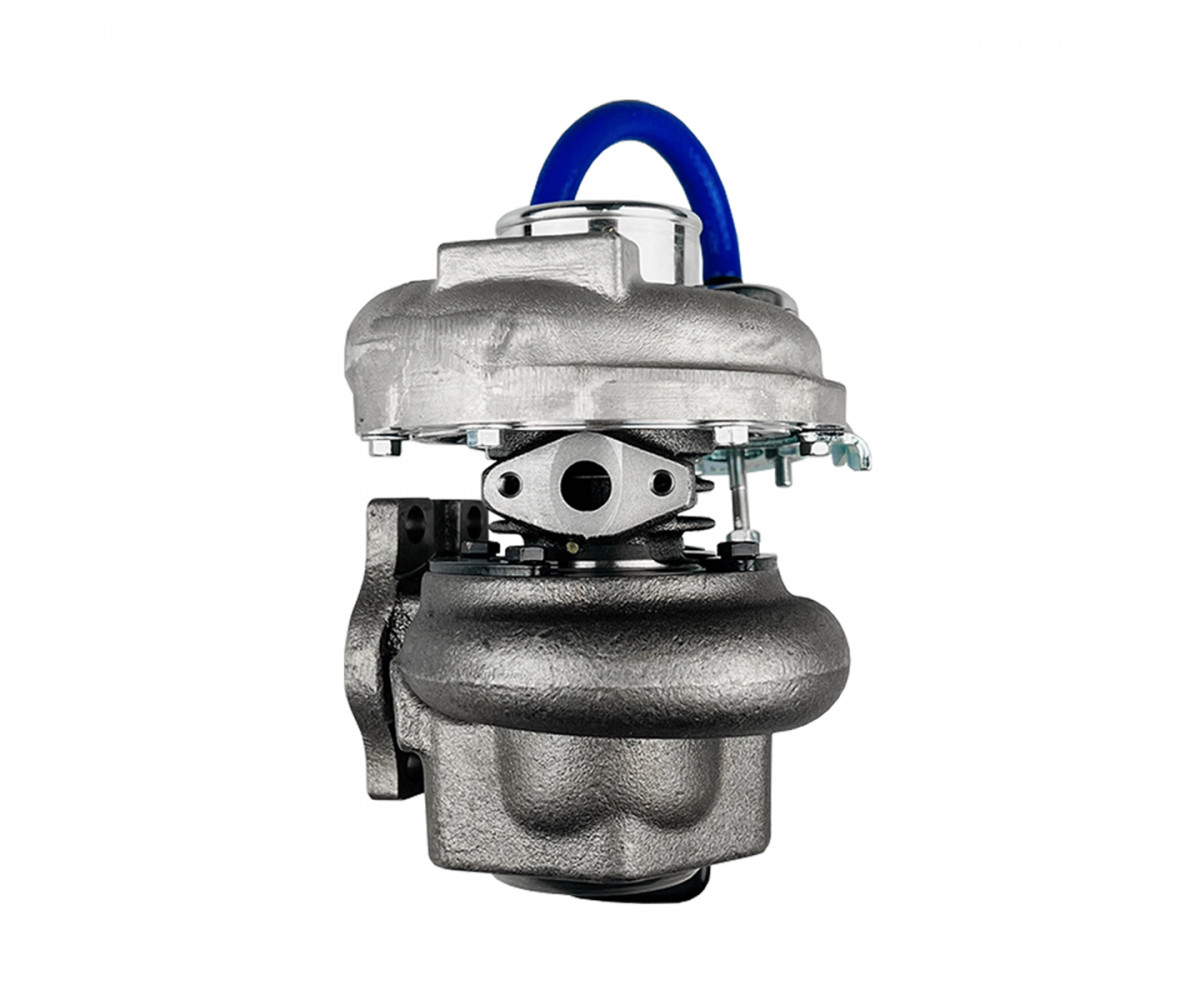

Turbocharger 2674A200 Perkins, OEM Garrett

Turbocharger 2674A200 is an OEM part made by Garrett for the Perkins engine. The card also lists 02/202490, 234-2988, 711736-5001S.

The turbine wheel is driven by exhaust energy, and the compressor wheel on the same shaft pushes air into the engine. A failing turbo shows as loss of power, black or blue smoke, whistling, oil in the intake or exhaust and shaft play. Most failures come from oil starvation, dirty oil or dust passing the air filter; these causes must be cleared before a new unit is fitted. When ordering, give the engine serial number and the data from the old turbo's label. If oil has collected in the intake and intercooler after a turbo failure, clean them out as well. Because the turbo shaft spins at very high speed, oil cleanliness directly sets bearing life. The turbo bolts to the exhaust manifold by its flange; the oil feed and drain pipes and the intake and boost hoses connect around it. The wastegate actuator limits boost pressure. The turbo is supplied new.

Specifications

Compatibility

The part is listed for machines with Perkins engines. The turbo is a Garrett GT2556S type; the Perkins number is 2674A200. The catalogue also has the aftermarket version of this part. Other parts are in Perkins engine.

Fitting

When fitting, check the intake hoses and clamps and clean the tract so that nothing enters the compressor. Tighten the exhaust flange with new lock nuts. The oil drain pipe must be clear, otherwise oil is forced past the turbo seals.
