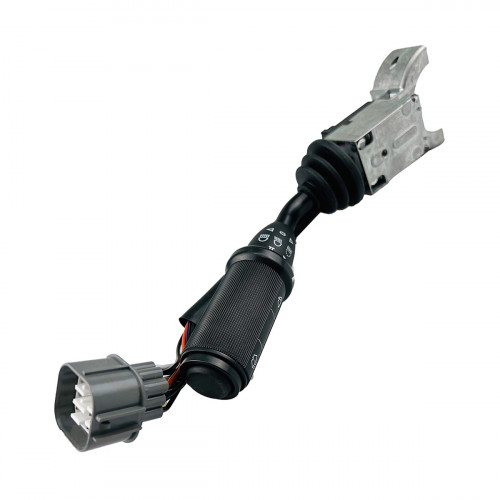

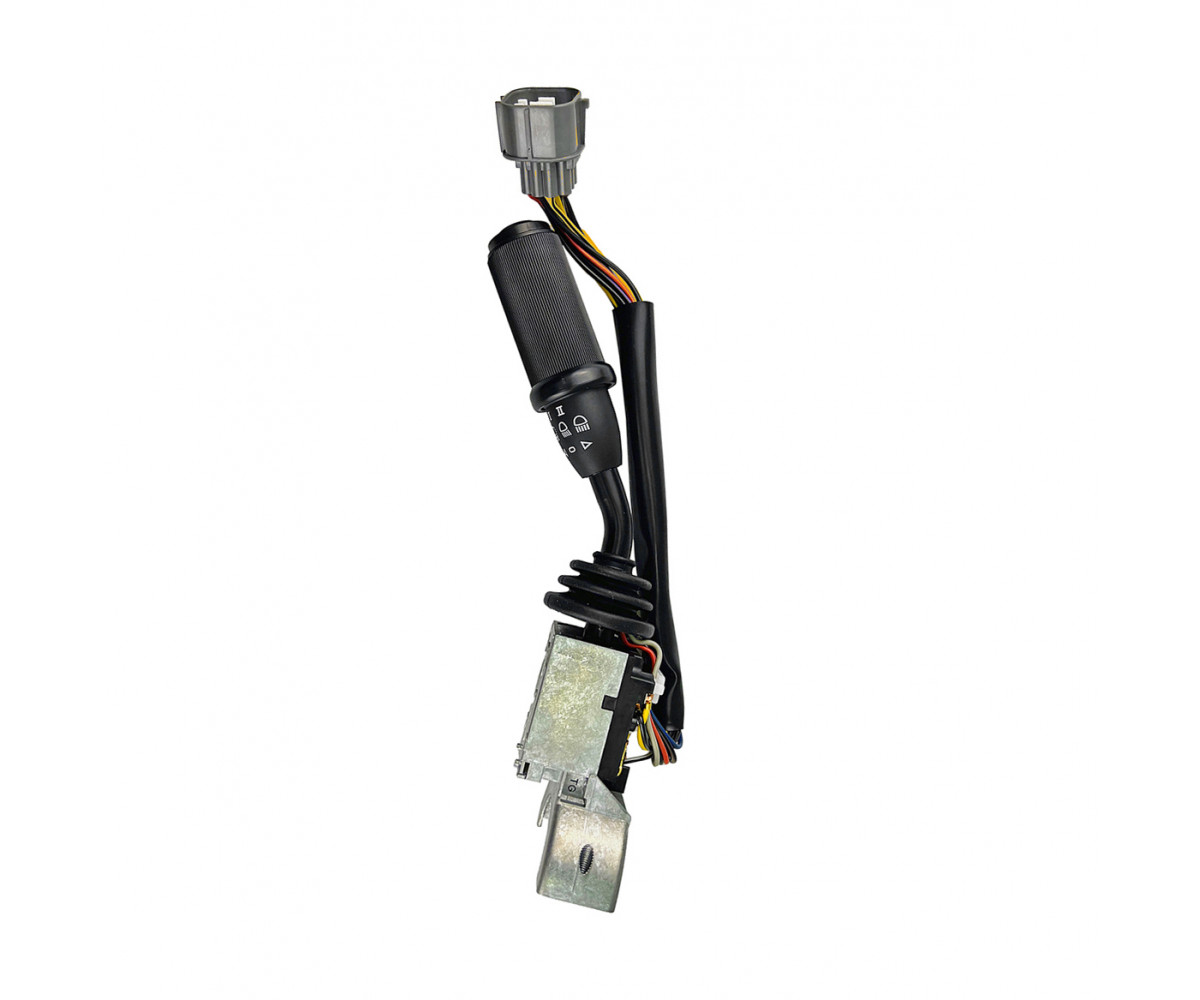

Column switch 701/80297 JCB, aftermarket

701/80297

Brand
DGR
Article
701/80297
Machine system
Electrics
Part type
Column switch
Machine brand
JCB
Manufacturing type
Aftermarket
All the features

In stock

0.00 ₺

We do not publish prices: they depend on exchange rates and change often. Click «Request price» and we will quote the current price on the day you ask.

Check the exact specifications and compatibility with your machine with our managers.

We are available Monday to Saturday, 9:00 – 18:00; closed on Sunday.

Free delivery to the carrier of your choice, or collect your order in Istanbul.

Could not find the part you need? Write to us and we will help you find an alternative or order it from the manufacturer.

Message on WhatsApp Message on Telegram Call us: +90 531 224 49 66

Column switch 701/80297 is an aftermarket part for the JCB machines. The card also lists 332/Y6916.

A column switch is a lever switch mounted on the steering column that lets the operator control the main functions without taking a hand off the wheel. Contacts inside the switch open and close the relevant circuits according to the lever position, and it connects to the machine's electrics through a connector at the end of its harness. Worn contacts make a function drop out now and then or fail to respond in one position, while a broken lever or loose mounting leaves the lever position uncertain. Before replacing the switch, check the fuses and relays; if the fault is not there, the switch is replaced. If the return spring weakens, the lever no longer returns to its centre position by itself.

Specifications

Part number	701/80297
Cross / alternative numbers	332/Y6916
Production type	Aftermarket
Part type	Column switch
System / group	Electrics
Machine make	JCB

Compatibility

According to sources, this is the right-hand column switch, controlling the lights and wipers. The catalogue also has the genuine version and OEM version of this part. Other parts are in Switches.

Fitting

Moisture and corrosion inside the connector are a common cause of false signals from sensors and switches, so clean the connector and use contact spray if needed. Renew the connector seal if it is missing. The part is chosen by part number, and its connector type is compared with the old part.

Specifications

Machine system
Electrics
Part type
Column switch
Machine brand
JCB
Manufacturing type
Aftermarket
