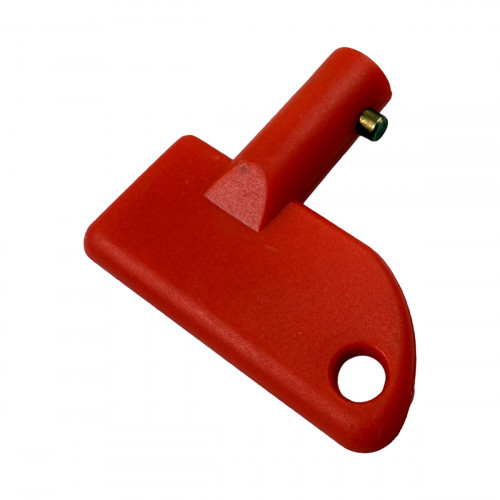

Battery isolator key 701/20801 JCB, aftermarket

701/20801

Brand
JF Parts
Article
701/20801
Machine system
Electrics
Part type
Isolator key
Machine brand
JCB
Manufacturing type
Aftermarket
All the features

In stock

0.00 ₺

We do not publish prices: they depend on exchange rates and change often. Click «Request price» and we will quote the current price on the day you ask.

Check the exact specifications and compatibility with your machine with our managers.

We are available Monday to Saturday, 9:00 – 18:00; closed on Sunday.

Free delivery to the carrier of your choice, or collect your order in Istanbul.

Could not find the part you need? Write to us and we will help you find an alternative or order it from the manufacturer.

Message on WhatsApp Message on Telegram Call us: +90 531 224 49 66

Battery isolator key 701/20801 is an aftermarket part for the JCB machines.

This part is the red plastic key of a battery isolator with a removable key, listed in the product card as 701/20801. Inserted and turned, the key connects the machine's battery circuit; with the key removed, the circuit stays open and the machine cannot be started, which protects against both battery drain and unauthorised use. A lost or broken key leaves the machine unable to start, so keeping a spare is advised. The key must suit the type of isolator. The key's metal tip turns the contact mechanism inside the isolator, and a worn or bent tip stops the isolator closing fully, so the contact can heat up.

Specifications

Part number	701/20801
Production type	Aftermarket
Part type	Isolator key
System / group	Electrics
Machine make	JCB

Compatibility

Other parts are in Switches.

Fitting

Push the key fully in and turn it; never switch off the isolator or remove the key with the engine running.

Specifications

Machine system
Electrics
Part type
Isolator key
Machine brand
JCB
Manufacturing type
Aftermarket

Questions: 0

No questions about this product.
