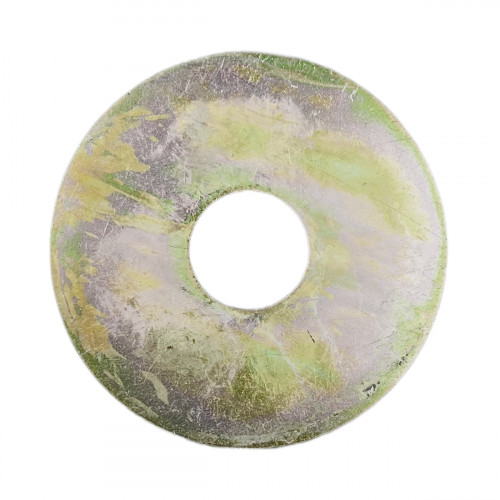

Wheel sensor target washer 123/06173, genuine

123/06173

Brand
JCB
Article
123/06173
Machine system
Sensors
Part type
Wheel sensor target washer
Machine brand
JCB
Manufacturing type
Original
Compatibility
JCB 3CX, 4CX
All the features

In stock

0.00 ₺

We do not publish prices: they depend on exchange rates and change often. Click «Request price» and we will quote the current price on the day you ask.

Check the exact specifications and compatibility with your machine with our managers.

We are available Monday to Saturday, 9:00 – 18:00; closed on Sunday.

Free delivery to the carrier of your choice, or collect your order in Istanbul.

Could not find the part you need? Write to us and we will help you find an alternative or order it from the manufacturer.

Message on WhatsApp Message on Telegram Call us: +90 531 224 49 66

For the JCB 3CX and 4CX backhoe loaders: wheel sensor target washer 123/06173, a genuine JCB part.

After replacing the washer, check the gap between sensor and washer and reset it with the sensor lock nuts if needed. Keep the washer face clean, since a thick layer of mud or rust can change the detection distance. The washer is chosen by part number. The washer only works together with the sensor tip at the right gap. Its thickness and diameter must suit the sensor's detection zone, and a different washer can make the steer mode control unit misread the wheel position.

Specifications

Part number	123/06173
Manufacturer	JCB
Production type	Original
Part type	Wheel sensor target washer
System / group	Sensors
Machine make	JCB

Compatibility

The catalogue also has the aftermarket version of this part. Other parts are in Sensors.

Fitting

Clean the seat before fitting the washer and tighten the fixings, then check the sensor signal with the wheels straight.

Specifications

Machine system
Sensors
Part type
Wheel sensor target washer
Machine brand
JCB
Manufacturing type
Original
Compatibility
JCB 3CX, 4CX

Questions: 0

No questions about this product.
