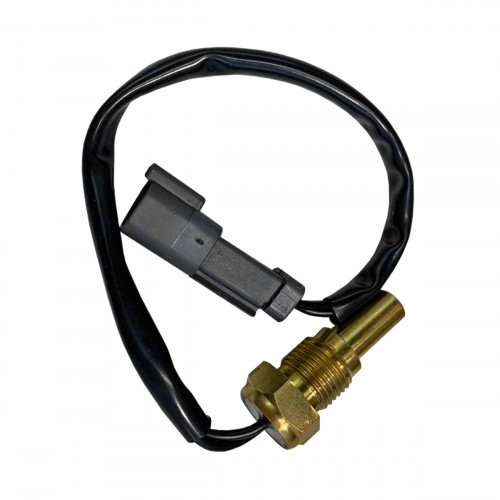

Temperature sender 716/30111 JCB JS, aftermarket

716/30111

Brand
JF Parts
Article
716/30111
Machine system
Sensors
Part type
Temperature sender
Machine brand
JCB
Manufacturing type
Aftermarket
Compatibility
JCB JS200, JS205, JS210, JS220, JS330, JZ235
All the features

In stock

0,00 ₺

We do not publish prices: they depend on exchange rates and change often. Click «Request price» and we will quote the current price on the day you ask.

Check the exact specifications and compatibility with your machine with our managers.

We are available Monday to Saturday, 9:00 – 18:00; closed on Sunday.

Free delivery to the carrier of your choice, or collect your order in Istanbul.

Could not find the part you need? Write to us and we will help you find an alternative or order it from the manufacturer.

Message on WhatsApp Message on Telegram Call us: +90 531 224 49 66

Temperature sender 716/30111 is an aftermarket part for the JCB JS crawler excavators.

A temperature sender measures coolant or oil temperature and passes it to the instrument panel, triggering a warning when the temperature exceeds a set value. The resistance of the thermistor inside the sender changes with temperature, and the gauge shows this as temperature. A faulty sender makes the gauge read constantly low or high, sets off a needless overheat warning or misses real overheating. Before replacing it, check the coolant level, thermostat and radiator; the sender can be verified by measuring its resistance at different temperatures. Scale and deposits on the sender tip slow the reading, so using the right antifreeze in the cooling system also helps the sender read accurately.

Specifications

Part number	716/30111
Production type	Aftermarket
Part type	Temperature sender
System / group	Sensors
Machine make	JCB

Compatibility

According to the product card, a temperature sender for Isuzu 6BG1 and 6BD1 engines. Other parts are in Sensors.

Fitting

Moisture and corrosion inside the connector are a common cause of false signals from sensors and switches, so clean the connector and use contact spray if needed. Renew the connector seal if it is missing. The part is chosen by part number, and its connector type is compared with the old part.

Specifications

Machine system
Sensors
Part type
Temperature sender
Machine brand
JCB
Manufacturing type
Aftermarket
Compatibility
JCB JS200, JS205, JS210, JS220, JS330, JZ235
