Rocker switch 701/39300 JCB, aftermarket

701/39300

Brand
HIDROLINE
Article
701/39300
Machine system
Cab
Part type
Rocker switch
Machine brand
JCB
Manufacturing type
Aftermarket
All the features

In stock

0,00 ₺

We do not publish prices: they depend on exchange rates and change often. Click «Request price» and we will quote the current price on the day you ask.

Check the exact specifications and compatibility with your machine with our managers.

We are available Monday to Saturday, 9:00 – 18:00; closed on Sunday.

Free delivery to the carrier of your choice, or collect your order in Istanbul.

Could not find the part you need? Write to us and we will help you find an alternative or order it from the manufacturer.

Message on WhatsApp Message on Telegram Call us: +90 531 224 49 66

Rocker switch 701/39300 is an aftermarket part for the JCB machines.

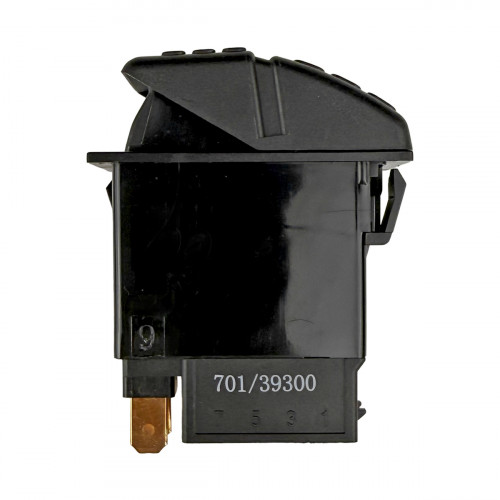

This switch is an angled-rocker panel switch used on older-style JCB cab panels, and the part number and pin numbers can be read on the body in the photo. According to sources, switches of this series are used on JCB backhoe loaders, Loadall and other machines for various cab functions. The switch clips into the panel hole by its side clips, with terminals pushed onto the flat pins at the back. Because its function depends on the machine's equipment, the new switch is chosen by comparing its number and number of positions with the old one. The pins at the back of switches in this series are numbered 1, 3, 5, 7 and so on, and the wires go onto the same numbers on the new switch. If the side clips of the body are broken, the switch moves in the panel, and a new switch is then used. The switch comes new.

Specifications

Part number	701/39300
Production type	Aftermarket
Part type	Rocker switch
System / group	Cab
Machine make	JCB

Compatibility

Other parts are in Rocker switches.

Fitting

Do not wipe cab switches with wet cloths or solvents, since liquid seeps inside and oxidises the contacts. The switch is chosen by part number and its pin layout compared with the old one.
