Headlamp with indicator 700/M1920 JCB, aftermarket

700/50055

Brand
JF Parts
Article
700/50055
Machine system
Electrics
Part type
Headlamp
Machine brand
JCB
Manufacturing type
Aftermarket
All the features

In stock

0,00 ₺

We do not publish prices: they depend on exchange rates and change often. Click «Request price» and we will quote the current price on the day you ask.

Check the exact specifications and compatibility with your machine with our managers.

We are available Monday to Saturday, 9:00 – 18:00; closed on Sunday.

Free delivery to the carrier of your choice, or collect your order in Istanbul.

Could not find the part you need? Write to us and we will help you find an alternative or order it from the manufacturer.

Message on WhatsApp Message on Telegram Call us: +90 531 224 49 66

Headlamp with indicator 700/M1920 is an aftermarket part for the JCB machines. The card also lists 700/50055, 700/50151.

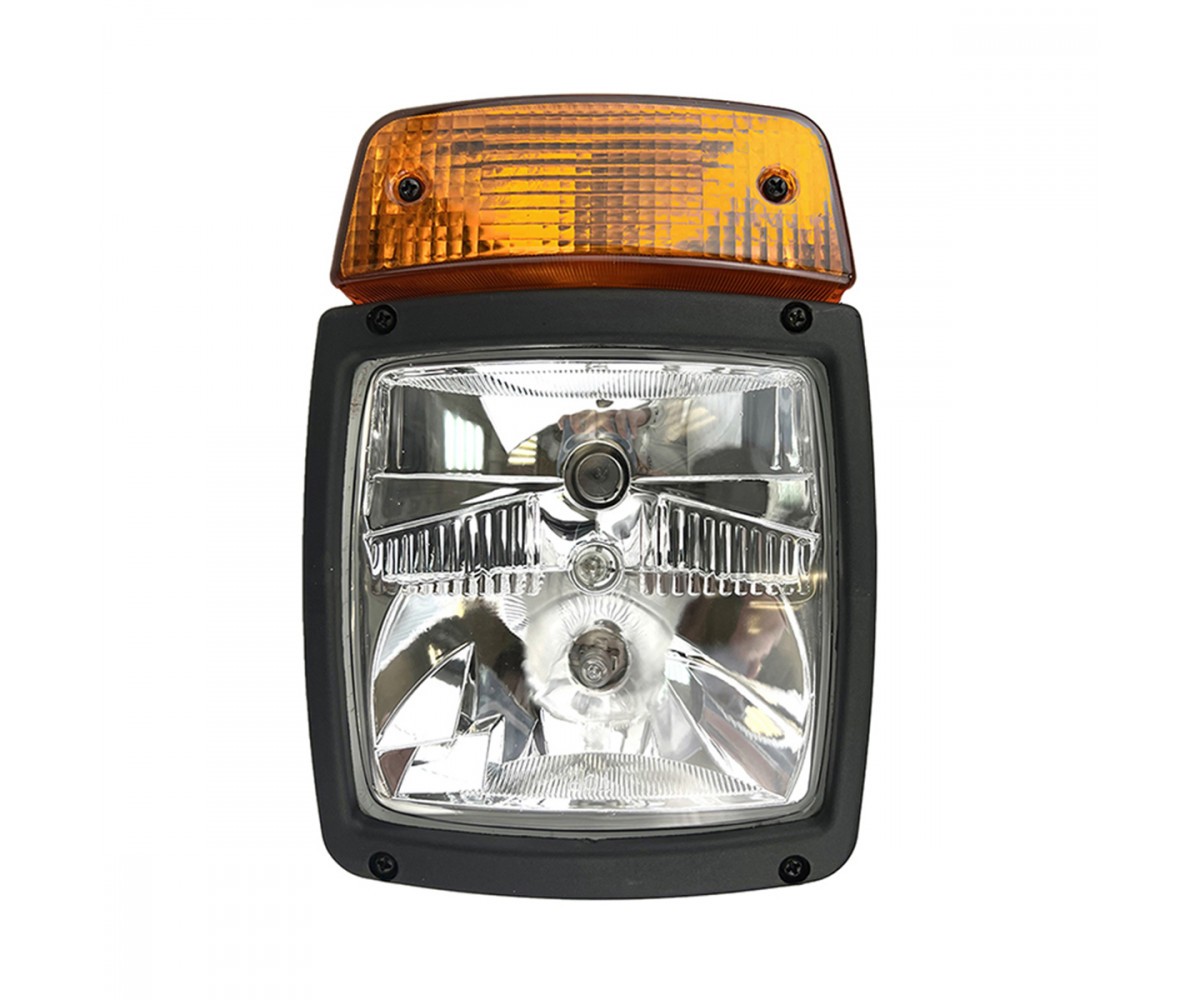

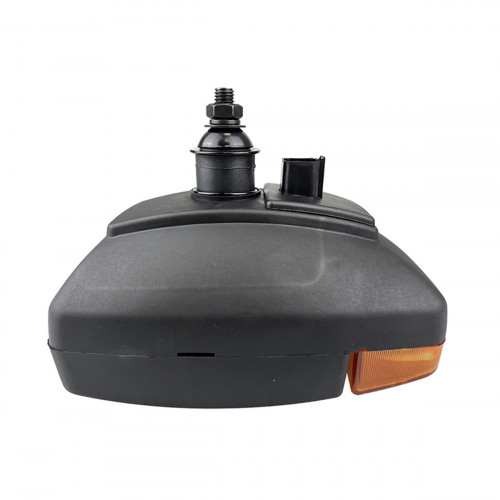

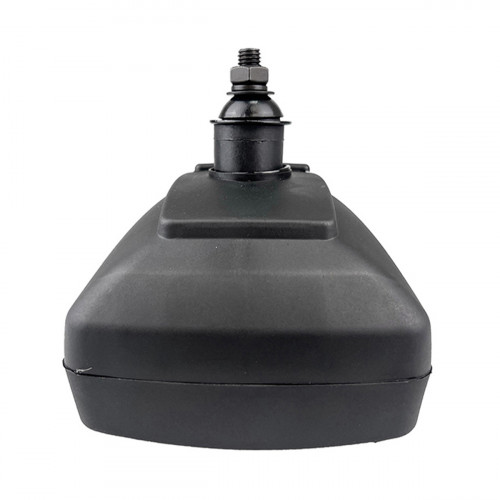

This rectangular headlamp combines main and dipped beam in one housing, with the amber section on top serving as the turn indicator. According to sources, 700/M1920 is a 12 V vertically mounted headlamp used on JCB 3CX and 4CX backhoe loaders, Loadall telehandlers and rough terrain forklifts, and it supersedes 700/50055 and 700/50054. Since sources give the dip direction (right or left) differently, the lamp is chosen by comparison with the old one and the R (right) marking on the product card. The breather cap at the back of the headlamp prevents condensation inside, and without it water gets in. Main beam is used only when no oncoming traffic is present. The headlamp is chosen by part number and mounting side.

Specifications

Part number	700/M1920
Cross / alternative numbers	700/50055, 700/50151
Production type	Aftermarket
Part type	Headlamp
System / group	Electrics
Machine make	JCB

Compatibility

The catalogue also has the genuine version of this part. Other parts are in Lighting.

Fitting

Bolt the headlamp to its bracket and connect its plugs clean and dry. After reconnecting the battery, test dipped beam, main beam and the indicator.

Specifications

Machine system
Electrics
Part type
Headlamp
Machine brand
JCB
Manufacturing type
Aftermarket
