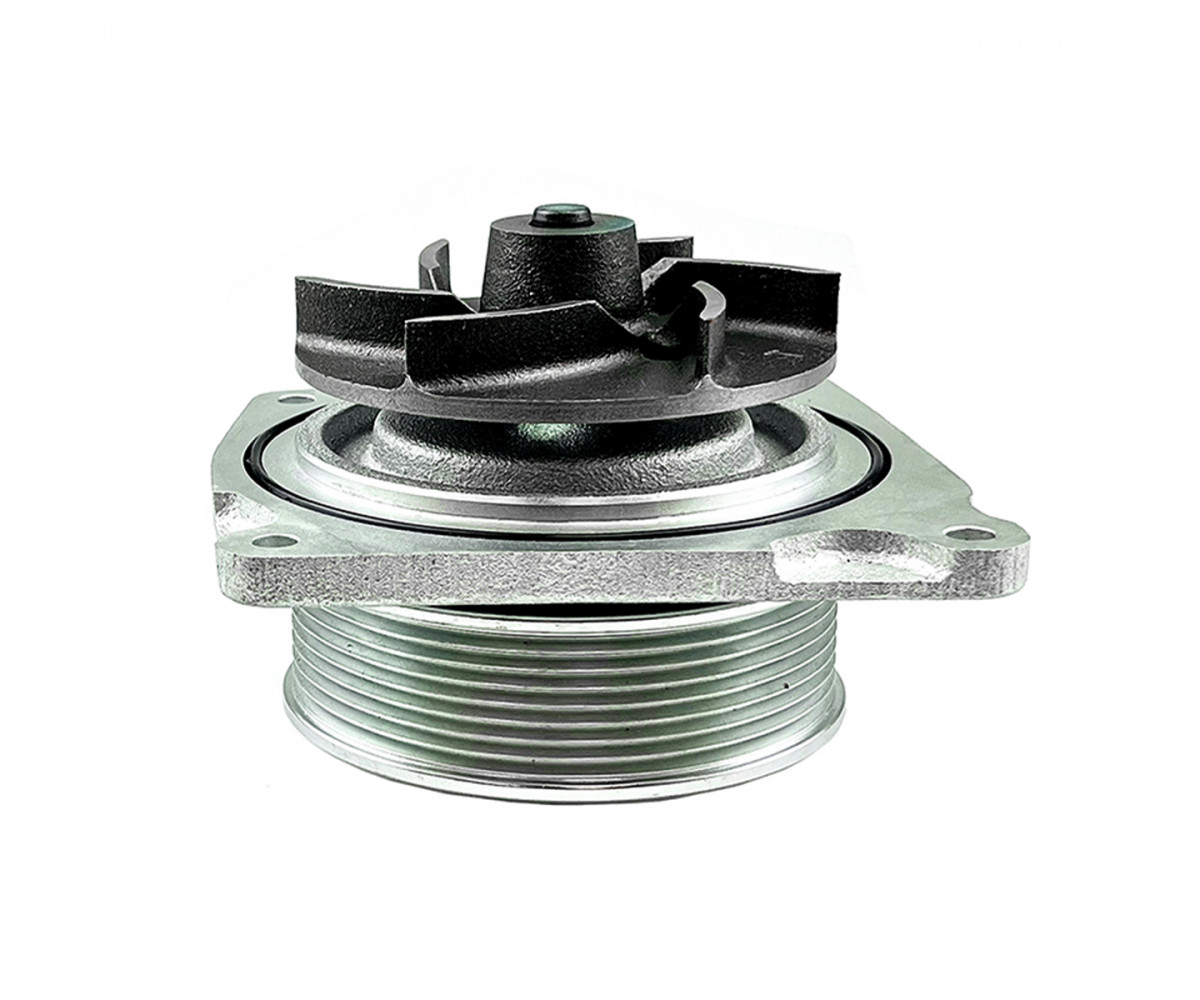

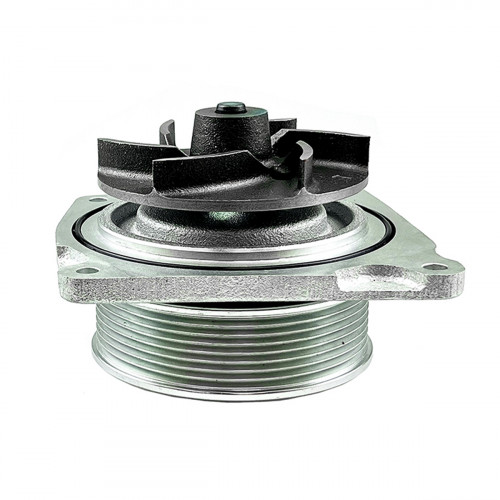

Water pump 320/04542 JCB 444, genuine

For the machines with the JCB Dieselmax 444 engine: water pump 320/04542, a genuine JCB part.

The pump is chosen by part number for the engine type and version, as one engine family can have different pulley diameters, impeller sizes and port positions. Several numbers on the card are versions of the same pump or its equivalents from different machine makers. When the pump is changed, the belt, tensioner and thermostat are checked too, and because old or dirty coolant soon ruins the new pump's seal, the system is flushed and refilled with fresh coolant. A few drops from the weep hole at first can be normal, but a steady leak means the pump needs replacing.

Specifications

Compatibility

According to the product card, 320/04542 is a water pump. The card also lists 320/A4904, 320/B4744. Fit is confirmed by the part number. The catalogue also has the aftermarket version of this part. Other parts are in Water pumps.

Fitting

Before the change, let the engine cool and drain the coolant into a suitable container. Slacken and remove the belt and undo the pump bolts. Clean the mating faces, fit the new pump with a new gasket or O-ring and tighten the bolts in a cross pattern to the specified torque. Refit the belt and set its tension, fill the system with the correct antifreeze and bleed it. Run the engine and check for leaks and temperature. Recheck the belt tension after the first run.
