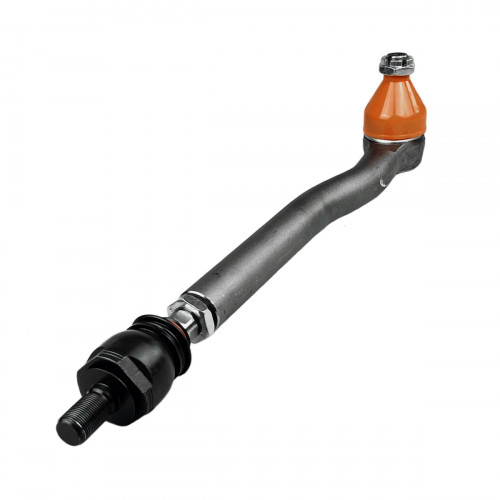

Track rod 601221 Carraro, aftermarket

For the backhoe loaders with Carraro axles: track rod 601221, an aftermarket part.

On some track rods the ball joint ends can be changed separately, but if the rod is bent, its threads damaged or both joints worn, a complete track rod assembly is the more dependable fix. The assembly comes with its length set at the factory and shortens fitting time. When choosing the rod, also consider whether the machine has two-wheel or four-wheel steering. The rod comes new, and it is checked to be straight before fitting.

Specifications

Compatibility

According to the product card, Carraro 601221 is a track rod. Fit is confirmed by the axle or transmission type. Other parts are in Carraro.

Fitting

Before fitting the rod, clean the taper holes in the knuckles and check them for ovality, since a ball joint will not seat tightly in a worn hole. After torquing the nuts, fit new split pins, lock the adjusting nuts and check that both rod ends lie in the same plane. Recheck the nut torque after the first hours of work. When choosing a rod, compare it with the old one for length, thread direction and ball joint tapers, since a rod of a different length can make it impossible to set the toe-in. A bent rod is replaced, not straightened, because straightened steel is weakened and can bend again under load. Watch tyre wear in the first weeks after the change.
