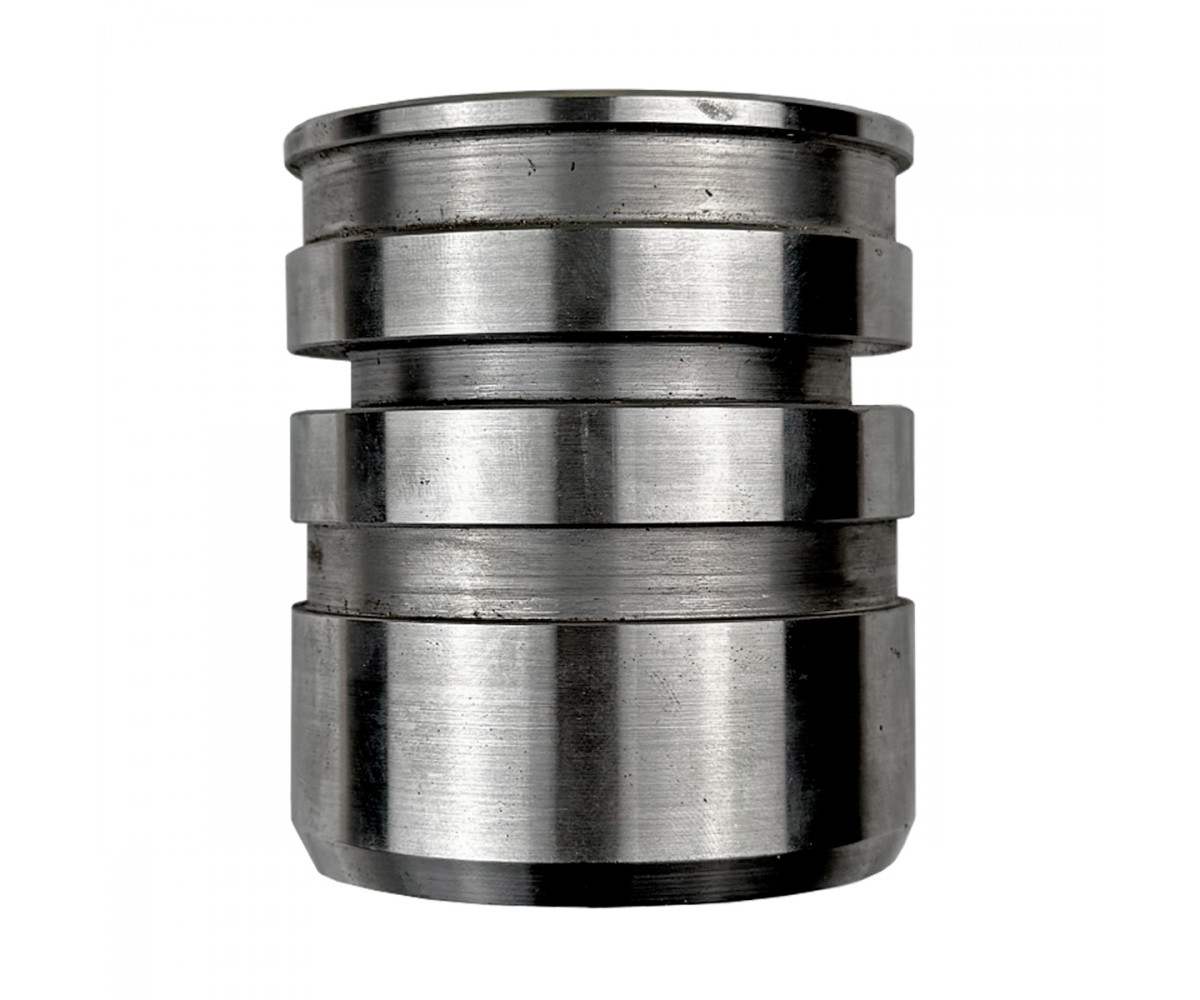

Carriage sideshift ram piston 87705762 Case/NH, aftermarket

For the Case and New Holland machines: carriage sideshift ram piston 87705762, an aftermarket part. According to the product card, this part is a carriage sideshift ram piston.

Clamp parts differ by position (upper or lower), number of holes and machine model and are chosen by part number. When a clamp body or piston is replaced, the seals and shoes are renewed too. After assembly the sideshift is operated a few times and it is checked that the clamped carriage does not slip. The clamp hoses and unions are checked for leaks. The clamp system pressure must be at the maker's value, as low pressure lets the carriage slip. The surfaces between the clamp shoes and rails are kept clean and free of grease.

Specifications

Compatibility

According to the product card, the part number is 87705762. Fit is confirmed by the part number and the machine serial number. Other parts are in Backhoe arm.

Fitting

Large structural parts are fitted with suitable lifting equipment, with the machine made safe and the attachments lowered to the ground. Pins and bushes are cleaned and greased, and bolts tightened to the specified torque. After assembly the movement is tried slowly through its full travel to check that nothing binds.
