Crown wheel and pinion 458/70246, aftermarket

458/70246

Brand
HATVE HTV
Article
458/70246
Machine system
Transmission
Part type
Crown wheel and pinion
Machine brand
JCB
Manufacturing type
Aftermarket
Compatibility
JCB 3CX, 4CX
All the features

In stock

0,00 ₺

We do not publish prices: they depend on exchange rates and change often. Click «Request price» and we will quote the current price on the day you ask.

Check the exact specifications and compatibility with your machine with our managers.

We are available Monday to Saturday, 9:00 – 18:00; closed on Sunday.

Free delivery to the carrier of your choice, or collect your order in Istanbul.

Could not find the part you need? Write to us and we will help you find an alternative or order it from the manufacturer.

Message on WhatsApp Message on Telegram Call us: +90 531 224 49 66

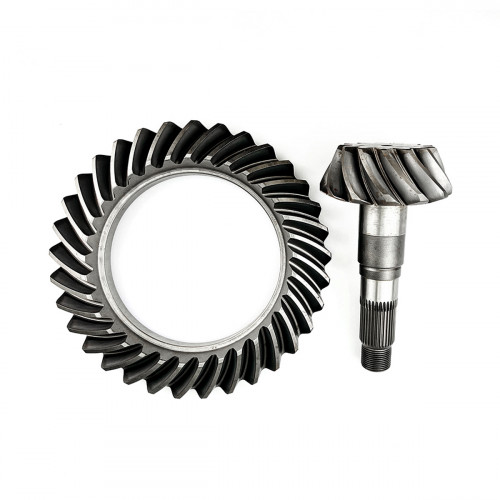

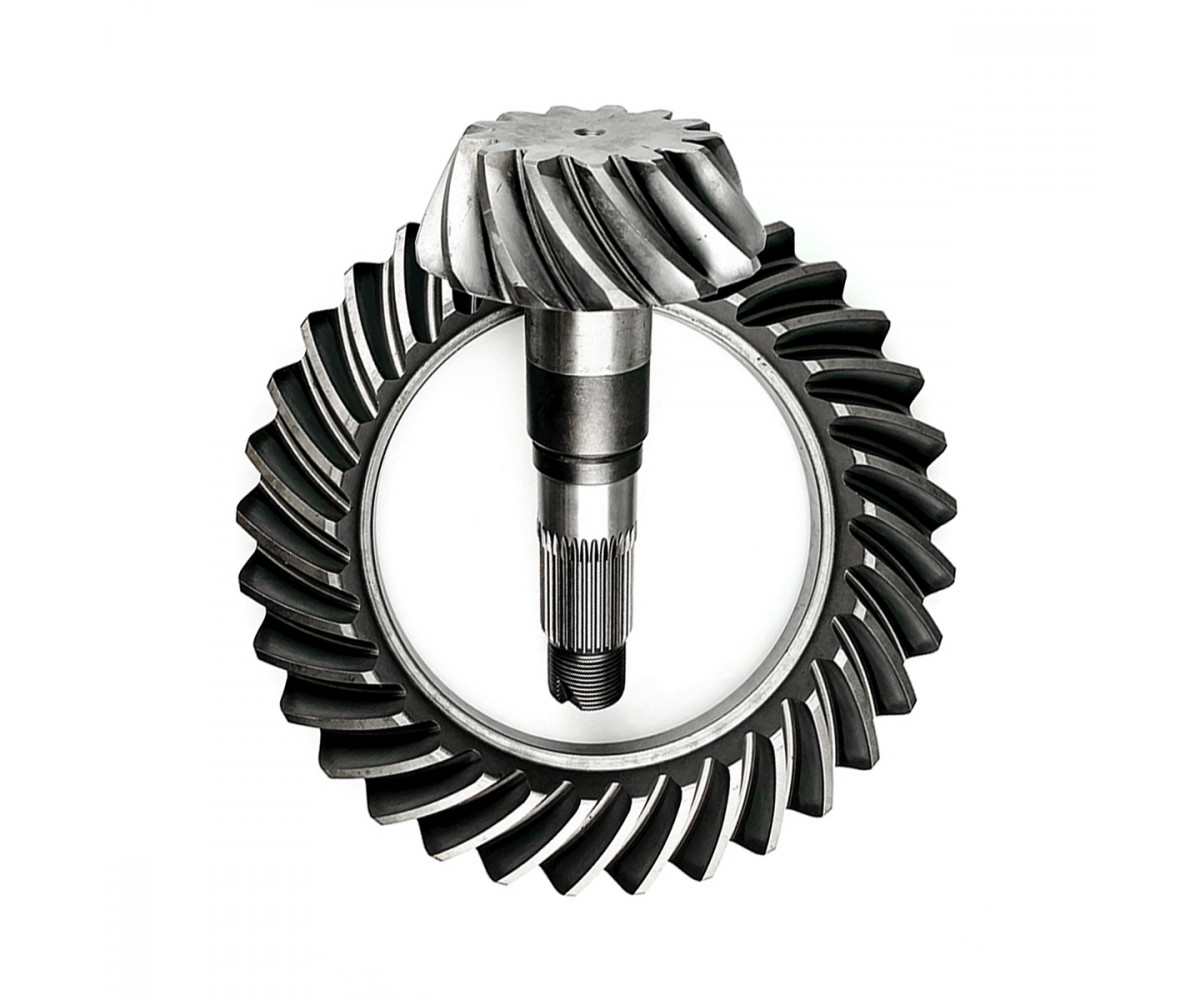

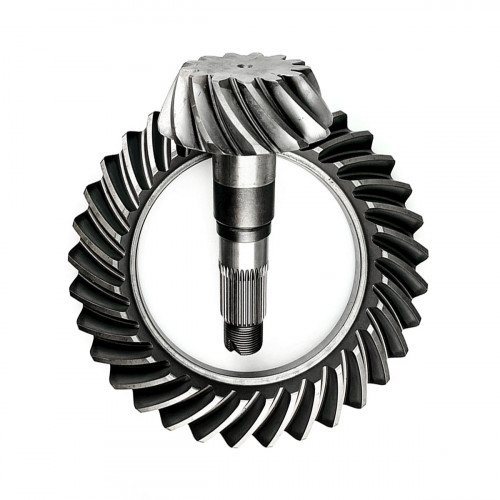

Crown wheel and pinion 458/70246 is an aftermarket part for the JCB 3CX and 4CX backhoe loaders. The set's ratio is 13/33.

The crown wheel and pinion turn the drive from the propshaft through 90 degrees, pass it to the differential and provide the axle's main reduction. The two gears are machined and matched together, so they are always replaced as a set; a new pinion with an old crown wheel will not give the correct contact pattern and will soon become noisy. The gear ratio (pinion and crown wheel teeth) decides the axle's and machine's speed and pulling character, so the new set must have the same ratio as the old one.

Specifications

Part number	458/70246
Production type	Aftermarket
Part type	Crown wheel and pinion
System / group	Transmission
Machine make	JCB

Compatibility

According to sources, 458/70246 is a right-hand spiral 13/33 M30 crown wheel and pinion, used on JCB 3CX, 3DX and 4C backhoe loaders and 526-56 and 531-70 telehandlers and made up of parts 458/70247 and 458/70248. The catalogue also has the OEM version and genuine version of this part. Other parts are in Reduction gears.

Fitting

Fitting a crown wheel and pinion is precise work needing measuring tools and should be done by an experienced workshop. Pinion depth is set with shims and backlash with the differential bearing adjustment, then the tooth contact pattern is checked with marking compound. Pinion bearing preload and pinion nut torque are set to the service manual. After assembly, fill the axle with the specified oil and check for whine and heat during the first hours.

Specifications

Machine system
Transmission
Part type
Crown wheel and pinion
Machine brand
JCB
Manufacturing type
Aftermarket
Compatibility
JCB 3CX, 4CX

Questions: 0

No questions about this product.

JCB 3CX / 4CX 07/10/2026 33

JCB 3CX PD70 rear axle parts breakdown: drawings and part numbers from the JCB catalogue

This article brings together the drawings and parts lists for the PD70 rear axle of the JCB 3CX backhoe loader from the JCB parts catalogue: the complete axle, the axle arm with hub reduction and brake plates, the drive head with brake pistons, the differential and the remote breather. The example is axle 450/44530 with a 15.78:1 ratio and limited slip differential, fitted to 3CX-T machines with front wheel steering (catalogue 9812/0010, serial numbers 00960000–00989999, 01297000–01297999, 01327000–01349999, 01616000–01621599, 01705500–01709999). Part numbers shown as links open the product pages in our catalogue.
