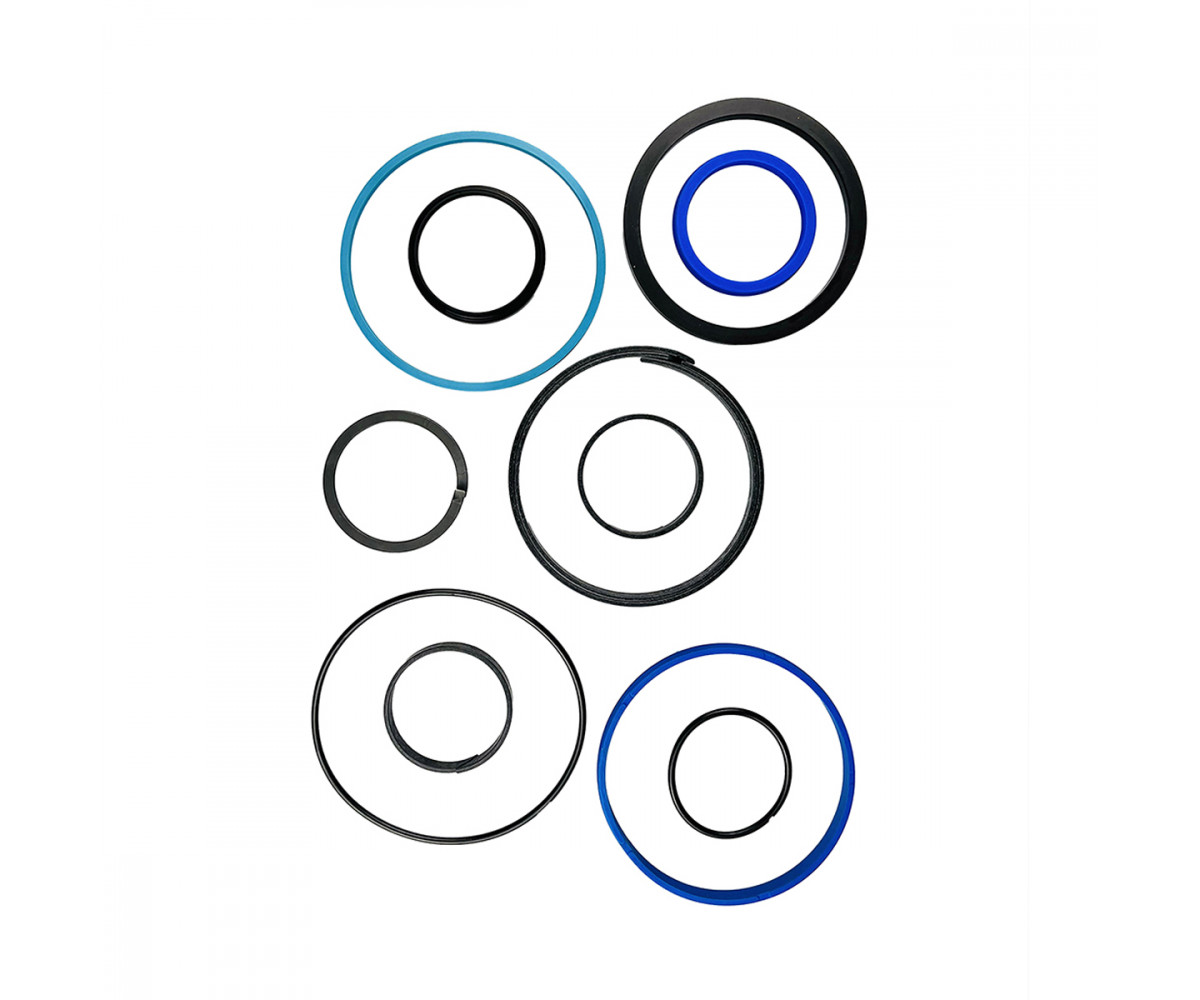

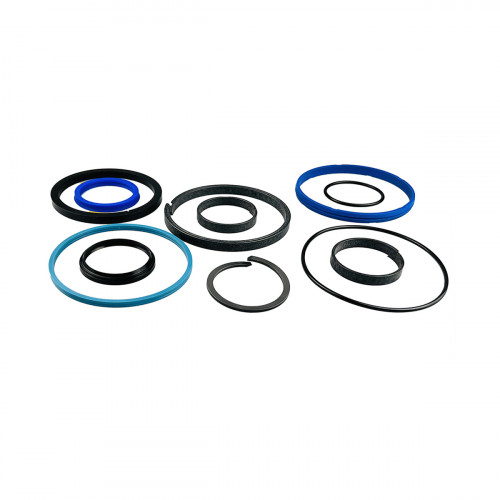

Hydraulic cylinder seal kit 746099, aftermarket

746099

Brand
MULTI
Article
746099
Machine system
Hydraulic system
Part type
Cylinder seal kit
Machine brand
Manitou
Manufacturing type
Aftermarket
All the features

In stock

0.00 ₺

We do not publish prices: they depend on exchange rates and change often. Click «Request price» and we will quote the current price on the day you ask.

Check the exact specifications and compatibility with your machine with our managers.

We are available Monday to Saturday, 9:00 – 18:00; closed on Sunday.

Free delivery to the carrier of your choice, or collect your order in Istanbul.

Could not find the part you need? Write to us and we will help you find an alternative or order it from the manufacturer.

Message on WhatsApp Message on Telegram Call us: +90 531 224 49 66

Hydraulic cylinder seal kit 746099 is an aftermarket part for the Manitou telehandlers.

A hydraulic cylinder seal kit contains what is needed to make a cylinder tight again: the rod seal (U-cup), wiper, piston seal, guide (wear) rings, O-rings and back-up rings. The rod seal in the gland stops oil escaping, the wiper keeps dirt on the rod from getting in, and the piston seal stops oil passing between the two chambers. The guide rings centre the piston and rod and keep the metal parts from rubbing on each other.

Specifications

Part number	746099
Production type	Aftermarket
Part type	Cylinder seal kit
System / group	Hydraulic system
Machine make	Manitou

Compatibility

According to the product card, Manitou 746099 is a hydraulic cylinder seal kit. Fit is confirmed by the part number. Other parts are in Repair kits.

Fitting

Before removing the cylinder, lower the attachment to the ground, stop the engine and work the levers a few times to release the pressure, capping the hose ends so no dirt gets in. Undo the gland with a suitable spanner and carefully withdraw the rod and piston. Clean and inspect the grooves, then fit the seals in the same order and orientation as the old ones. After assembly, reconnect the cylinder, top up the hydraulic oil and purge air with slow movements on first start-up. After the first working day, grease the cylinder mounting pins and check the rod for any trace of oil.
