- BrandMULTI
- Article295-9893
- Machine systemHydraulic system
- Part typeCylinder seal kit
- Machine brandCaterpillar
- Manufacturing typeAftermarket
- All the features

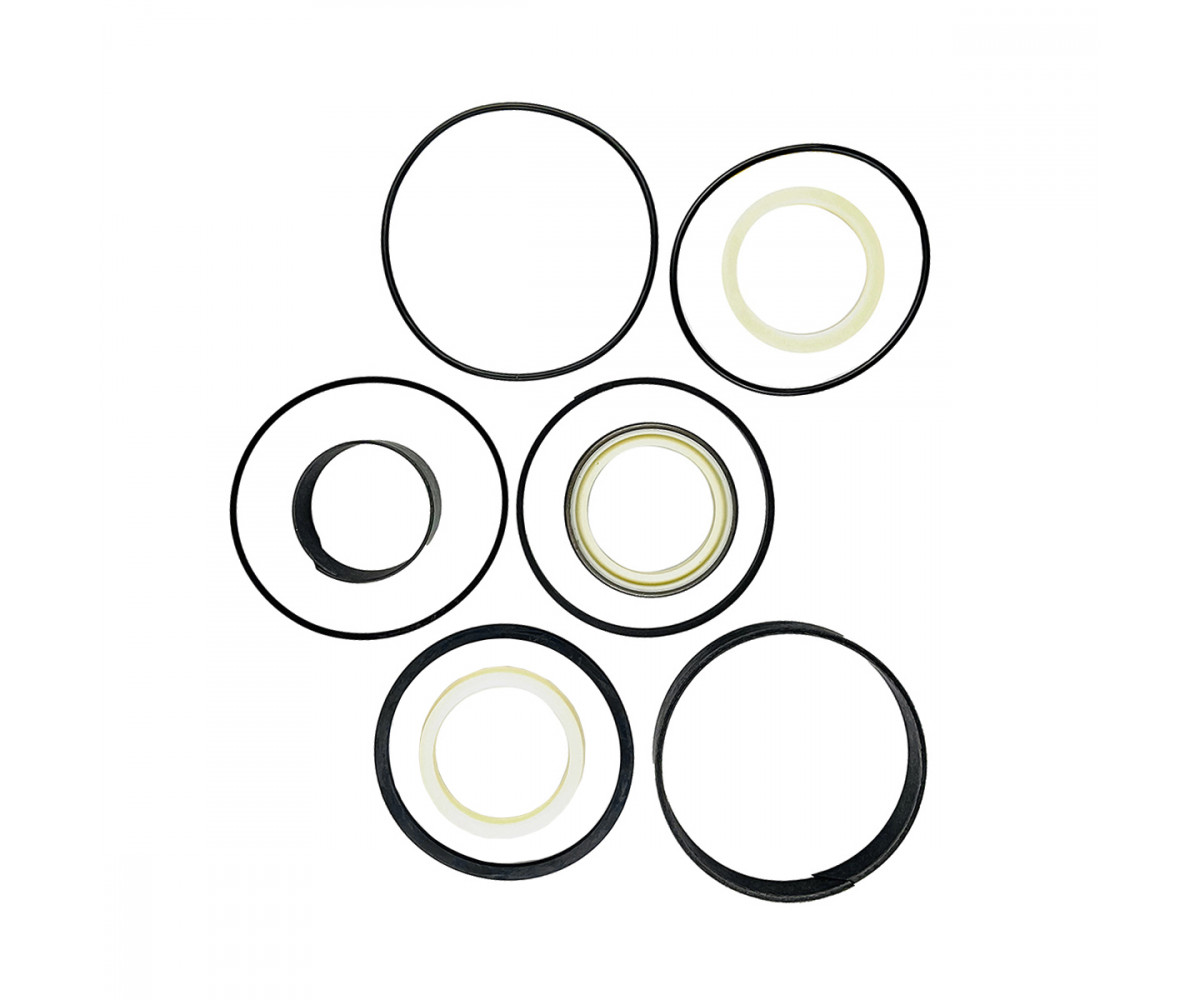

For the Caterpillar machines: hydraulic cylinder seal kit 295-9893, an aftermarket part.
When the seals are changed, the cylinder's metal parts must be inspected. Scratches, rust or flaking chrome on the rod will soon cut a new rod seal, and scoring in the bore will spoil the piston seal. If the rod is bent or the bushes are worn, the seals are loaded on one side and wear early. Such damage is put right together with the seal change.
Specifications
| Part number | 295-9893 |
| Production type | Aftermarket |
| Part type | Cylinder seal kit |
| System / group | Hydraulic system |
| Machine make | Caterpillar |
Compatibility
According to the product card, Caterpillar 295-9893 is a hydraulic cylinder seal kit. Fit is confirmed by the cylinder or kit part number. Other parts are in Repair kits.
Fitting
No sharp tools are used when fitting the seals: fold the seal slightly into a kidney shape, insert it in the groove and ease it into place by hand. Fit the rod seal and wiper in the gland grooves the right way round, as a reversed seal leaks at once under pressure. Cover the rod threads and edges with a thin protective sleeve or tape as they pass through the gland. After assembly, test the cylinder first without load, then under load, and check the seal area again after a day's work.
Specifications
- Machine systemHydraulic system
- Part typeCylinder seal kit
- Machine brandCaterpillar
- Manufacturing typeAftermarket
No questions about this product.
