- BrandTEREX
- Article3522679M94
- Machine systemHydraulic system
- Part typePin
- Machine brandTEREX
- Manufacturing typeAftermarket
- Machine seriesTX820, TX825, TX840, TX860, TX890, TX970
- Outer diameter, mm50
- Length, mm255
- All the features

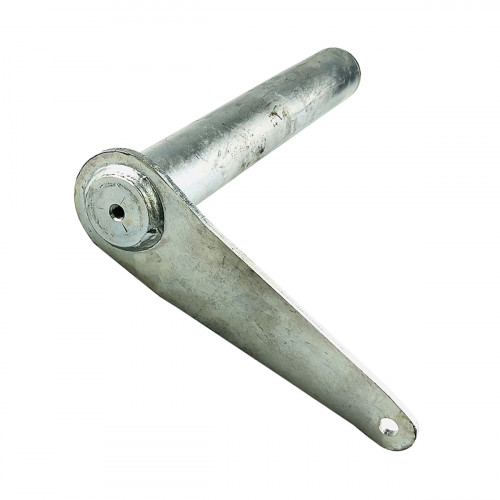

Joint pin 3522679M94 is an aftermarket part for the Terex backhoe loaders.
A joint pin is a hardened steel shaft that connects two parts (boom, dipper, bucket, hydraulic cylinder or link) and forms the axis on which they pivot. The pin runs in a bush and carries all the forces of digging and loading. If greasing is neglected or the bush is worn, the pin surface becomes scored and play develops in the joint, causing knocks as the bucket moves, loss of precision and ovalled eyes.
Specifications
| Part number | 3522679M94 |
| Production type | Aftermarket |
| Part type | Pin |
| System / group | Hydraulic system |
| Machine make | TEREX |
| Series / model | TX820, TX825, TX840, TX860, TX890, TX970 |
| Outer diameter | 50 mm |
| Length | 255 mm |
Compatibility
According to the product card, 3522679M94 is a pin. Machines listed on the card: TX820, TX825, TX840, TX860, TX890, TX970. Fit is confirmed by the part number. Other parts are in Terex pins.
Fitting
Before the change, lower the attachment to the ground or support it securely, stop the engine and release the hydraulic pressure. Remove the locking element and drift the pin out with a suitable punch without damaging the eyes. After cleaning and checking the eye and bush, fit the new pin greased, refit the locking element and grease the joint until clean grease comes out.
Specifications
- Machine systemHydraulic system
- Part typePin
- Machine brandTEREX
- Manufacturing typeAftermarket
- Machine seriesTX820, TX825, TX840, TX860, TX890, TX970
- Outer diameter, mm50
- Length, mm255
