- BrandJF Parts
- Article911/32400
- Machine systemHydraulic system
- Part typePin
- Machine brandJCB
- Manufacturing typeAftermarket
- Machine series531-70, 533-105, 535-95, 536-60, 540-140, 541-70, 526-56, 535-60
- Outer diameter, mm50,8
- Length, mm232
- All the features

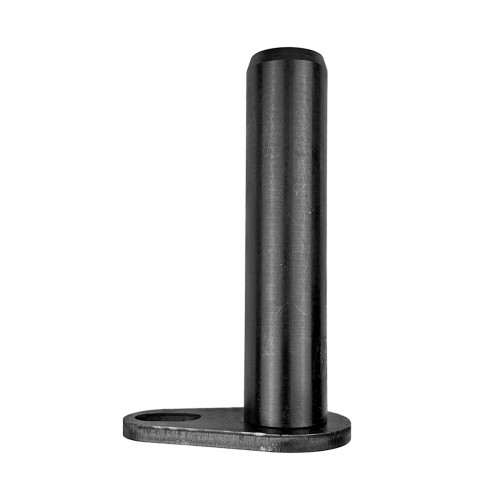

For the JCB Loadall telehandlers: joint pin 911/32400, an aftermarket part.
The pin is chosen by part number according to its diameter, length, head shape and locking method (bolt and plate, circlip or lock pin). On one machine the bucket, dipper, boom and cylinder pins differ in size and are not interchangeable. When a new pin is fitted, the bushes and seals are checked too, as a new pin in a worn bush soon develops play.
Specifications
| Part number | 911/32400 |
| Production type | Aftermarket |
| Part type | Pin |
| System / group | Hydraulic system |
| Machine make | JCB |
| Series / model | 531-70, 533-105, 535-95, 536-60, 540-140, 541-70, 526-56, 535-60 |
| Outer diameter | 50,8 mm |
| Length | 232 mm |
Compatibility
According to the product card, 911/32400 is a pin. Machines listed on the card: 531-70, 533-105, 535-95, 536-60, 540-140, 541-70, 526-56, 535-60. Fit is confirmed by the part number. Other parts are in JCB JS series pins.
Fitting
Before the change, lower the attachment to the ground or support it securely, stop the engine and release the hydraulic pressure. Remove the locking element and drift the pin out with a suitable punch without damaging the eyes. After cleaning and checking the eye and bush, fit the new pin greased, refit the locking element and grease the joint until clean grease comes out.
Specifications
- Machine systemHydraulic system
- Part typePin
- Machine brandJCB
- Manufacturing typeAftermarket
- Machine series531-70, 533-105, 535-95, 536-60, 540-140, 541-70, 526-56, 535-60
- Outer diameter, mm50,8
- Length, mm232
