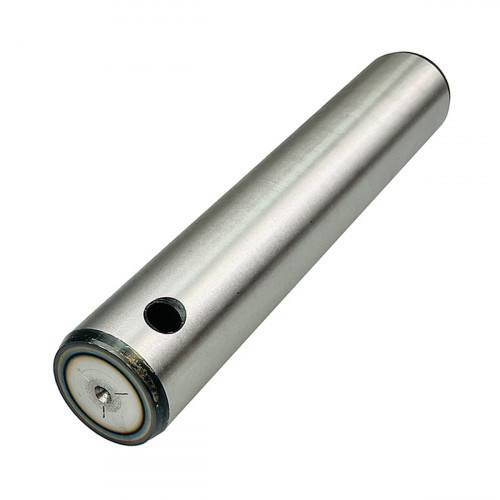

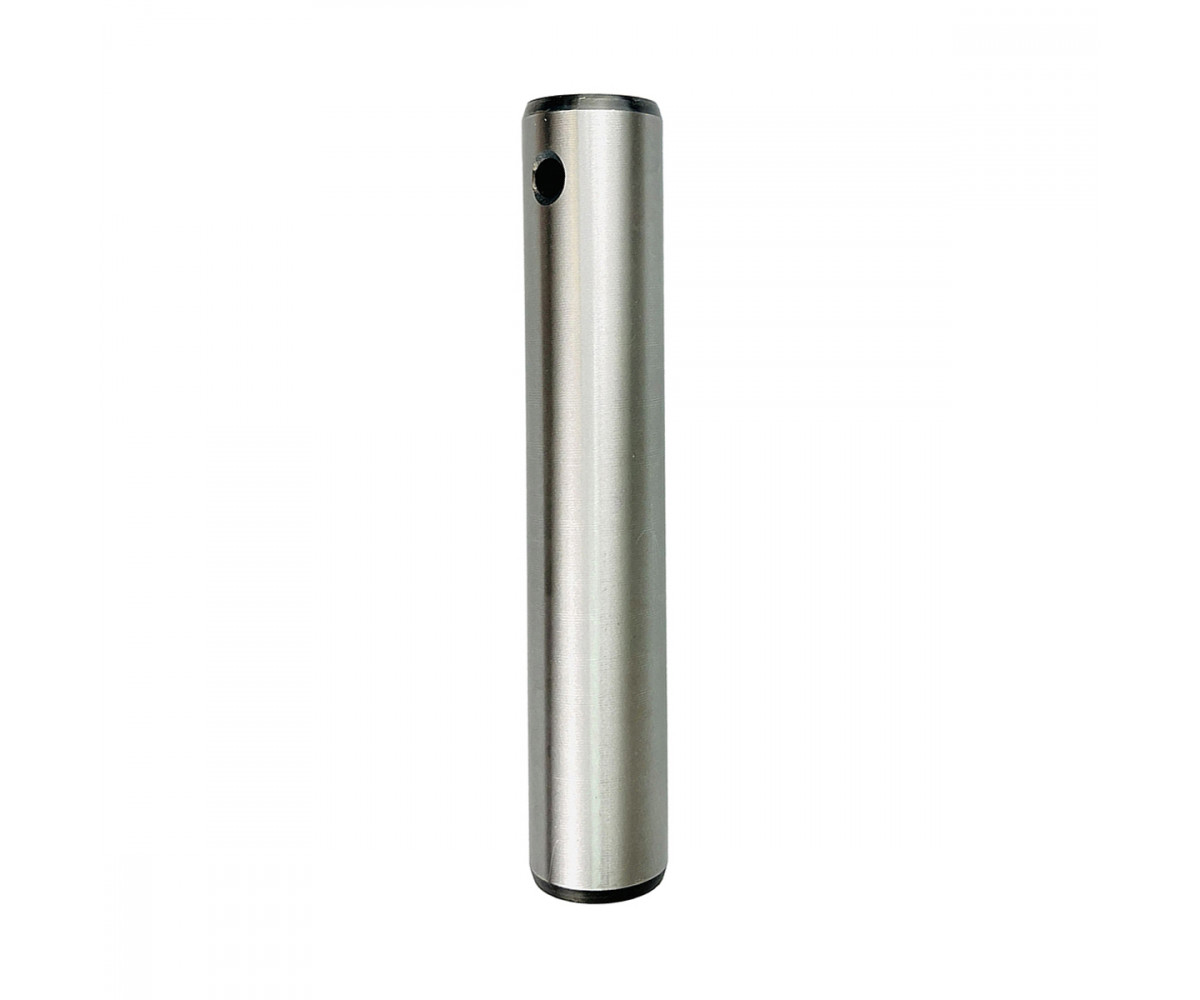

Backhoe boom ram rod pin 811/50520 JCB 3CX/4CX, aftermarket

Backhoe boom ram rod pin 811/50520 is an aftermarket part for the JCB 3CX and 4CX backhoe loaders. According to the product card, this part is a backhoe boom ram rod pin.

A joint pin is a hardened steel shaft that connects two parts (boom, dipper, bucket, hydraulic cylinder or link) and forms the axis on which they pivot. The pin runs in a bush and carries all the forces of digging and loading. If greasing is neglected or the bush is worn, the pin surface becomes scored and play develops in the joint, causing knocks as the bucket moves, loss of precision and ovalled eyes.

Specifications

Compatibility

According to the product card, 811/50520 is a pin. Machines listed on the card: 3CX, 4CX, 5CX. Fit is confirmed by the part number. Other parts are in JCB CX series pins.

Fitting

Before the change, lower the attachment to the ground or support it securely, stop the engine and release the hydraulic pressure. Remove the locking element and drift the pin out with a suitable punch without damaging the eyes. After cleaning and checking the eye and bush, fit the new pin greased, refit the locking element and grease the joint until clean grease comes out.
