Hydraulic tank hose 834/11566 JCB 3CX/4CX, aftermarket

834/11566

Brand
OKKS
Article
834/11566
Machine system
Hydraulic system
Part type
Hydraulic tank hose
Machine brand
JCB
Manufacturing type
Aftermarket
Compatibility
JCB 3CX, 4CX
All the features

In stock

0.00 ₺

We do not publish prices: they depend on exchange rates and change often. Click «Request price» and we will quote the current price on the day you ask.

Check the exact specifications and compatibility with your machine with our managers.

We are available Monday to Saturday, 9:00 – 18:00; closed on Sunday.

Free delivery to the carrier of your choice, or collect your order in Istanbul.

Could not find the part you need? Write to us and we will help you find an alternative or order it from the manufacturer.

Message on WhatsApp Message on Telegram Call us: +90 531 224 49 66

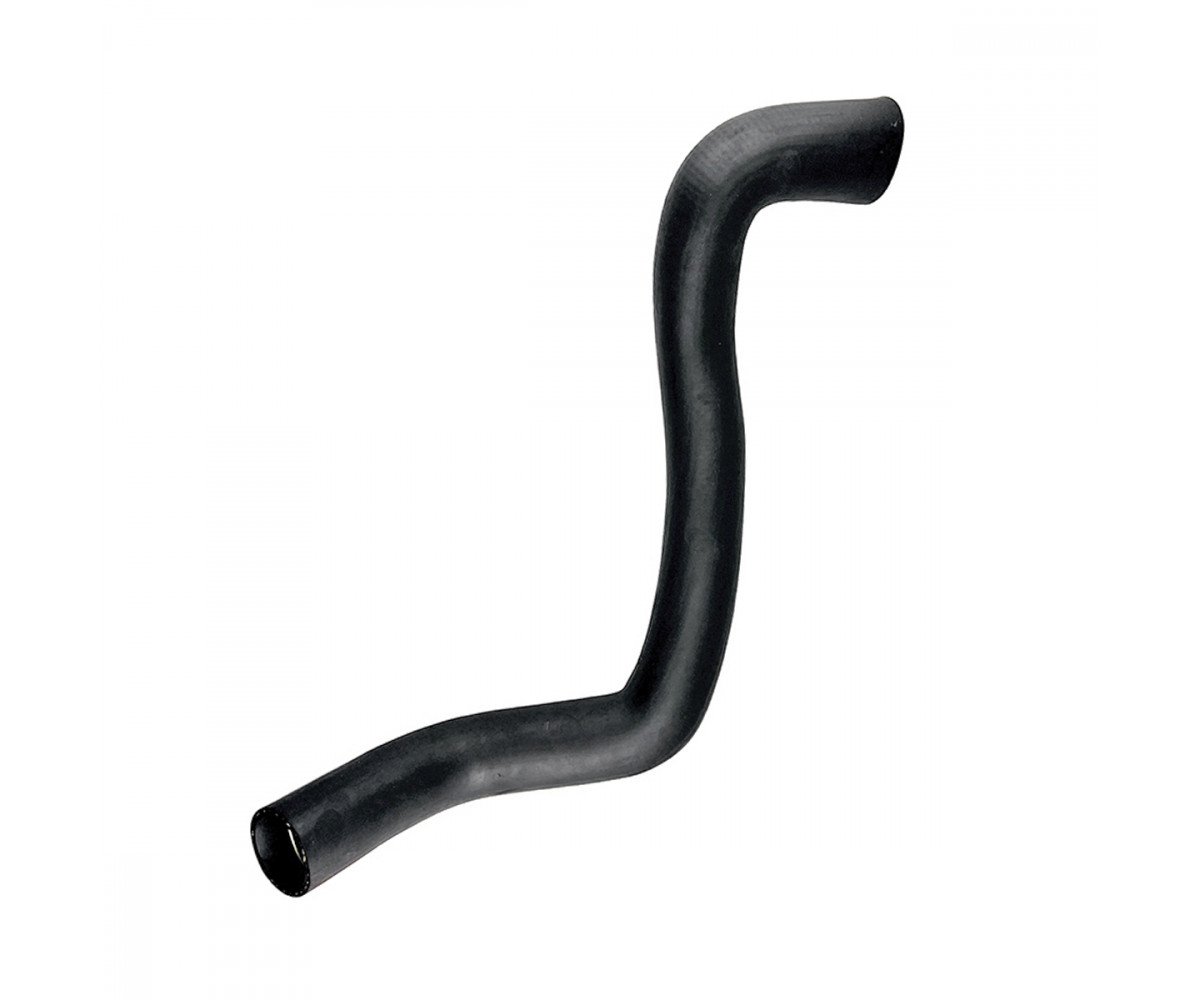

Hydraulic tank hose 834/11566 is an aftermarket part for the JCB 3CX and 4CX backhoe loaders. The card also lists 332/Y9145.

Moulded tank hoses take up less space than straight hose and keep their cross-section even on tight bends, which keeps flow resistance in the suction line low. Over time hot hydraulic oil and engine bay heat harden the rubber, and a hardened hose loses its seal under the clamp. To change the hose, bring the tank oil level below the hose connection or drain the tank. After fitting the new hose, refill the tank, start the engine and check the hose and clamps for leaks. Keep dirt out of the tank openings during the job, since dirt in the hydraulic system speeds up pump and valve wear. The hose is chosen by part number and compared with the old one for shape, diameters and branches. It is made of rubber that resists hydraulic oil and heat. The hose comes new and is kept in its packaging until fitting.

Specifications

Part number	834/11566
Cross / alternative numbers	332/Y9145
Production type	Aftermarket
Part type	Hydraulic tank hose
System / group	Hydraulic system
Machine make	JCB

Compatibility

Other parts are in Hydraulic pipes.

Fitting

Route the hose so it does not touch moving parts or hot surfaces. Do not reuse the old clamps.

Specifications

Machine system
Hydraulic system
Part type
Hydraulic tank hose
Machine brand
JCB
Manufacturing type
Aftermarket
Compatibility
JCB 3CX, 4CX

Questions: 0

No questions about this product.
