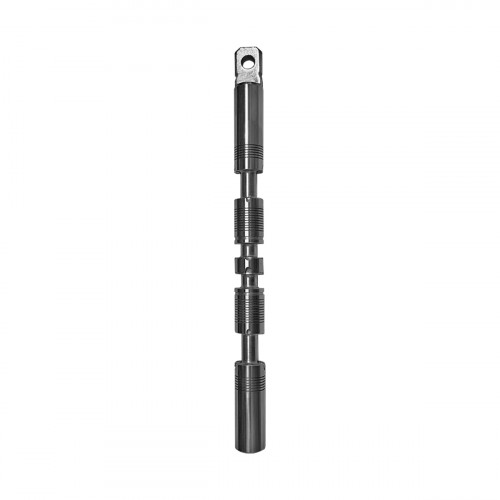

Control valve spool 25/615600C, aftermarket

25/615600C

Brand
JF Parts
Article
25/615600C
Machine system
Hydraulic system
Part type
Valve spool
Machine brand
JCB, HIDROMEK, MST
Manufacturing type
Aftermarket
Compatibility
JCB 3CX, 4CX
All the features

In stock

0.00 ₺

We do not publish prices: they depend on exchange rates and change often. Click «Request price» and we will quote the current price on the day you ask.

Check the exact specifications and compatibility with your machine with our managers.

We are available Monday to Saturday, 9:00 – 18:00; closed on Sunday.

Free delivery to the carrier of your choice, or collect your order in Istanbul.

Could not find the part you need? Write to us and we will help you find an alternative or order it from the manufacturer.

Message on WhatsApp Message on Telegram Call us: +90 531 224 49 66

Control valve spool 25/615600C is an aftermarket part for the JCB 3CX and 4CX backhoe loaders.

The land pattern of each spool is designed for its function: bucket, dipper and boom spools have different flow characteristics. The spool is therefore chosen by section and letter code, and a spool from another section makes the movement jerky or too fast. Before fitting, check the bore in the body for scoring and dirt, as a scored bore soon ruins a new spool. The spool is supplied new, and its surface must be protected in transit, since even a small scratch can cause leakage. The spool is made of steel.

Specifications

Part number	25/615600C
Production type	Aftermarket
Part type	Valve spool
System / group	Hydraulic system
Machine make	JCB, HIDROMEK, MST

Compatibility

The letter C at the end of the number identifies the spool type; spools differ by valve section. The spool is for the backhoe control valve 25/615600. Other parts are in Hydraulic control valves.

Fitting

Changing the spool means opening the valve section; clean the spool and bore, and fit new seals and O-rings. Oil the spool and slide it into place, refit the spring and cap and connect the linkage. After assembly, check the spool returns freely to neutral and the section does not leak.

Specifications

Machine system
Hydraulic system
Part type
Valve spool
Machine brand
JCB, HIDROMEK, MST
Manufacturing type
Aftermarket
Compatibility
JCB 3CX, 4CX
