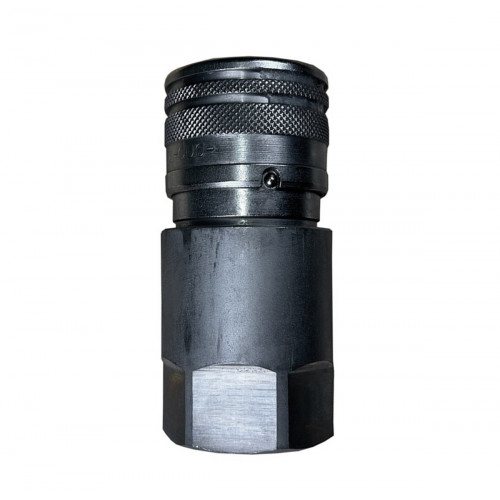

Quick coupling 3/4", female 45/920047 JCB, aftermarket

45/920047

Brand
D.N.P.
Article
45/920047
Machine system
Hydraulic system
Part type
Quick coupling
Machine brand
JCB
Manufacturing type
Aftermarket
All the features

In stock

0,00 ₺

We do not publish prices: they depend on exchange rates and change often. Click «Request price» and we will quote the current price on the day you ask.

Check the exact specifications and compatibility with your machine with our managers.

We are available Monday to Saturday, 9:00 – 18:00; closed on Sunday.

Free delivery to the carrier of your choice, or collect your order in Istanbul.

Could not find the part you need? Write to us and we will help you find an alternative or order it from the manufacturer.

Message on WhatsApp Message on Telegram Call us: +90 531 224 49 66

For the JCB machines: quick coupling 3/4", female 45/920047, an aftermarket part. The card also lists 45/908400.

Both halves must be of the same standard and size, since halves of different standards will not connect or lock fully. Unused couplings should be closed with dust caps, as sand and dirt on the face quickly wear the seals. Relieving line pressure before connecting makes the coupling easy and safe to join. The aftermarket coupling matches the original in size, thread standard and flat-face design and can be used with a genuine mating half. If it does not lock fully when connected, the attachment will not work or pressure builds in the line; relieve the line pressure and connect again. Its seals resist hydraulic oil and heat. The coupling is supplied new and is best used with a dust cap.

Specifications

Part number	45/920047
Cross / alternative numbers	45/908400
Production type	Aftermarket
Part type	Quick coupling
System / group	Hydraulic system
Machine make	JCB

Compatibility

The catalogue also has the genuine version of this part. Mating half: quick coupling 3/4", male 45/910300. Other parts are in High-pressure hoses.

Fitting

Fit the coupling to the hose or pipe with a seal suited to the thread and tighten it on its spanner flats without striking the body. Clean the faces before connecting and check the coupling locks fully.

Specifications

Machine system
Hydraulic system
Part type
Quick coupling
Machine brand
JCB
Manufacturing type
Aftermarket

Questions: 0

No questions about this product.
