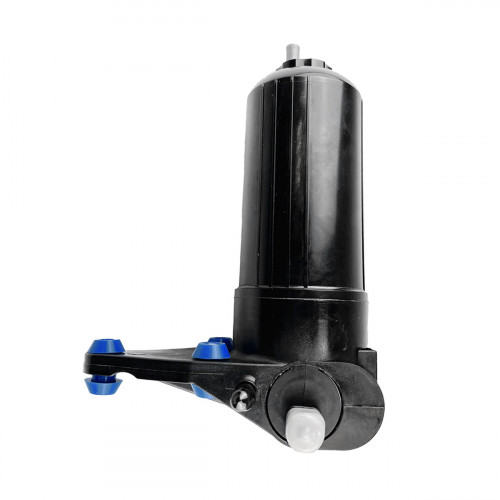

Electric fuel pump Perkins RG 17/919300 Perkins, aftermarket

Electric fuel pump Perkins RG 17/919300 is an aftermarket part for the Perkins-engined JCB machines. According to the product card, the pump is for machines with Perkins RG-series engines; the card also lists 17/927800, Caterpillar 232-7808 and Perkins 4132A018.

The electric fuel pump runs when the ignition is switched on and delivers fuel under pressure from the tank through the filters to the injection pump. Unlike a mechanical lift pump, it fills the system without the engine turning, which makes starting easier and speeds up bleeding after filter changes. The pump usually sits next to the pre-filter or water separator and has an electrical connector. Signs of failure are no pump noise when the ignition is turned on, hard starting or stalling under load, and low fuel pressure. When tracing a fault, check the fuse, relay and connector voltage first, as the pump itself is often the last thing to suspect. The pump's electrical connections are checked at every service.

Specifications

Compatibility

According to the product card, 17/919300 is an electric fuel pump. The card also lists 17/927800, 232-7808, 4132A018, 17/919301. Fit is confirmed by the part number. The catalogue also has the OEM version of this part. Other parts are in Fuel lift pumps.

Fitting

Before the change, disconnect the battery negative, clamp the fuel lines and clean around the pump. Mark and disconnect the hoses and connector. Fit the new pump following the flow arrow, using the clamps and rubber mounts from the fitting kit if there is one. Once connected, switch the ignition on and off several times to fill the system and purge air. Run the engine and check the fuel pressure and the joints for leaks.
